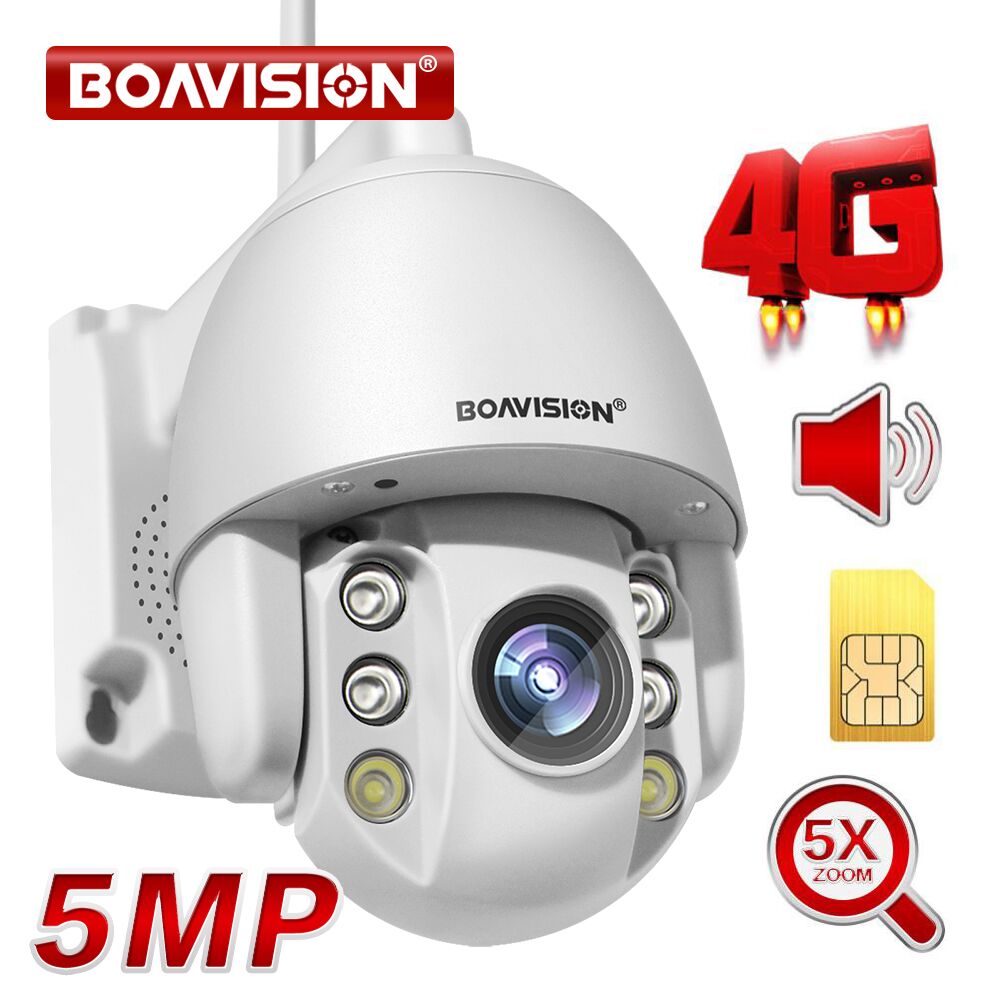

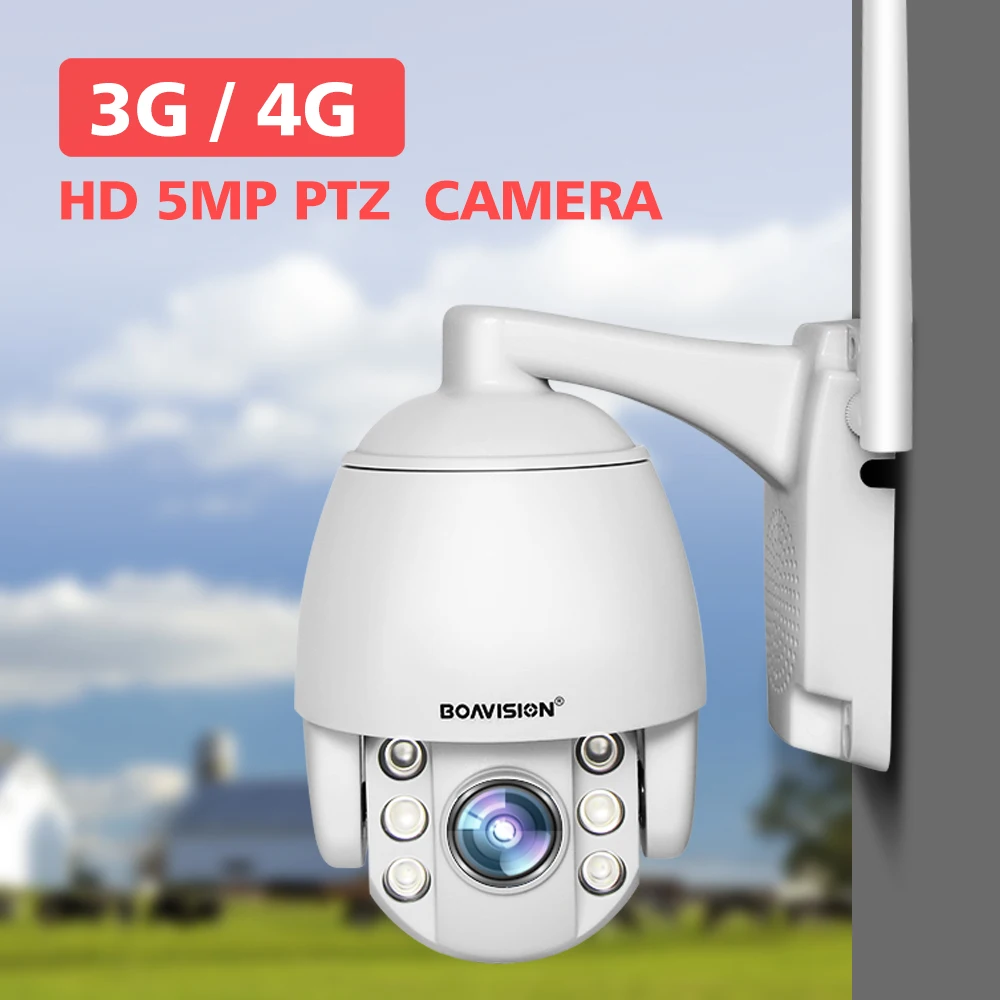

3G 4G HD 2MP/ 5MP MINI PTZ Camera
AI Human Auto Tracking
Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.
5X Optical Zoom Auto Focus Lens
2.7-13.5mm 5X Optical Zoom Auto Focus Lens
Support P2P Multi-Platforms Remote Monitoring
Support P2P, View and amp; Anywhere and amp; Anytime. Provide Android and amp; IOS APP (CamHi/CamHipro) And Professional CMOS PC Client Software Windows/Mac
Waterproof IP66
Pan Tilt Rotation
Horizontal: 355 Degree and amp; Vertical: 90 Degree
Motion Detecting
2.5 Inch Super Mini Size
Packing List :
Features :
SIM Card 4G PTZ Camera
2.5 Inch Super Mini Size Case PTZ Dome Camera
Support HD 5MP High Quality Resolution
AI Human Auto Tracking
Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.
Support TF/Micro SD Card, up to 64G ( TF Card optional choose )
Pan Tilt Rotation, Horizontal:355° and amp; Vertical:90°Ø
4pcs Array Infrared LEDs or 2pcs White Supplement LEDs. 60m Night Vision
Support P2P, View and amp; Anywhere and amp; Anytime
Elegant Outline and Easy Installation
Provide Android and amp; IOS APP (CamHi) and professional CMS PC client software
ABS Plastic Housing Material,Outdoor Use,Waterproof IP66
Built-in Microphone,Loud Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters, Loudspeaker Effective Range 60 Meters
The SD Card Slot Is Designed On The Camera’s Back Cover,Very Easy to Install the TF/Micro SD Card .
Note:If need zoom function, please choose 5x optical zoom lens(2.7-13.5mm); if not need zoom function, can choose the fixed 4mm lens.
|
Product |
HX-4G20M200AS |
HX-4G20M24AS |
HX-4G50M24AS |
|
Operating system |
Embedded Linux OS |
||
|
Effective pixels |
2MP(1920×1080) |
2MP(1920×1080) |
5MP(2560×1920) |
|
CMOS Sensor |
1/2.8″ |
||
|
Lens interface type |
M12 |
||
|
Lens |
Fixed 4mm lens ( not zoom ) |
2.7-13.5mm 5X zoom lens |
|
|
View angle |
70° |
89.9°-26.2° |
|
|
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
||
|
Day and amp;Night mode |
Auto IR-CUT |
||
|
Night vision distance |
4pcs Array Infrared LEDs+2pcs Floodlight LEDs. 60m IR Night Vision/30M Color Nightvision |
||
|
Video compression Standard |
H.264 Main Profile/H.264 Baseline |
||
|
Video streaming |
Dual streaming |
||
|
Video resolution |
First stream:2560×1920 or 2560×1440 |
||
|
Second stream:800×600 or 800×480 |
|||
|
JPEG stream :(Monitoring for mobile phones), Q720P(640×352), QQ720P(320×176) |
|||
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
||
|
Video frame rate |
15fps(PAL 50HZ/NTSC 60HZ) |
||
|
Audio |
Audio compression standard: G.726/G.711 |
||
|
Audio code rate: Rate adaptive |
|||
|
Audio Input: Support, built-in Microphone |
|||
|
Audio Output: Support Two Way Audio Talk Back(With Speaker) |
|||
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
||
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
||
|
Audio function |
Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) |
||
|
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
||
|
Alarm linkage |
Alarm send pictures to the specified mailbox, |
||
|
alarm upload pictures and videos to the FTP server, |
|||
|
alarm write pictures and videos to Micro TF card, alarm message push |
|||
|
Privacy mask |
Maximum support 4 users to simultaneously browse |
||
|
OSD |
Support camera name, date and time information superimposed |
||
|
User management |
Supports user and rights management |
||
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
||
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, |
||
|
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. |
|||
|
Connection protocol |
N/A |
||
|
4G standard |
FDD-LTE |
||
|
Frequency range |
B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) |
||
|
Transmission rate |
Upload max:50Mbps, download max: 150Mbps |
||
|
Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
||
|
Rotation angle |
Horizon:0° to 355°. Vertical: 0° to 90° |
||
|
Horizontal speed |
1° to 40°/S |
||
|
Vertical speed |
1° to 20°/S |
||
|
Preset |
Support 8 preset points , zoom lens status can be saved during the preset |
||
|
Auto Tracking |
AI Humanoid Dection Auto Tracking |
||
|
Power interface |
1* 5.5mm power interface |
||
|
Ethernet |
1*RJ45 and amp; Antenna 10M/100M Adaptive Ethernet Interface |
||
|
TF card Slot |
1*TF card slot. up to 64GB (TF Card Optional Choose) |
||
|
Reset button |
Support(On the side of the TF Card Slot) |
||
|
Power supply |
DC 12V 2A |
||
|
power |
Day: 3W; Night: 12W |
||
|
Operating temperature |
-20 to +60 degree |
||
|
Operating humidity |
10% to 95% |
||
|
Material |
Outdoor Use,Waterproof IP65 |
||
|
Installation |
Rack mounting |
||
|

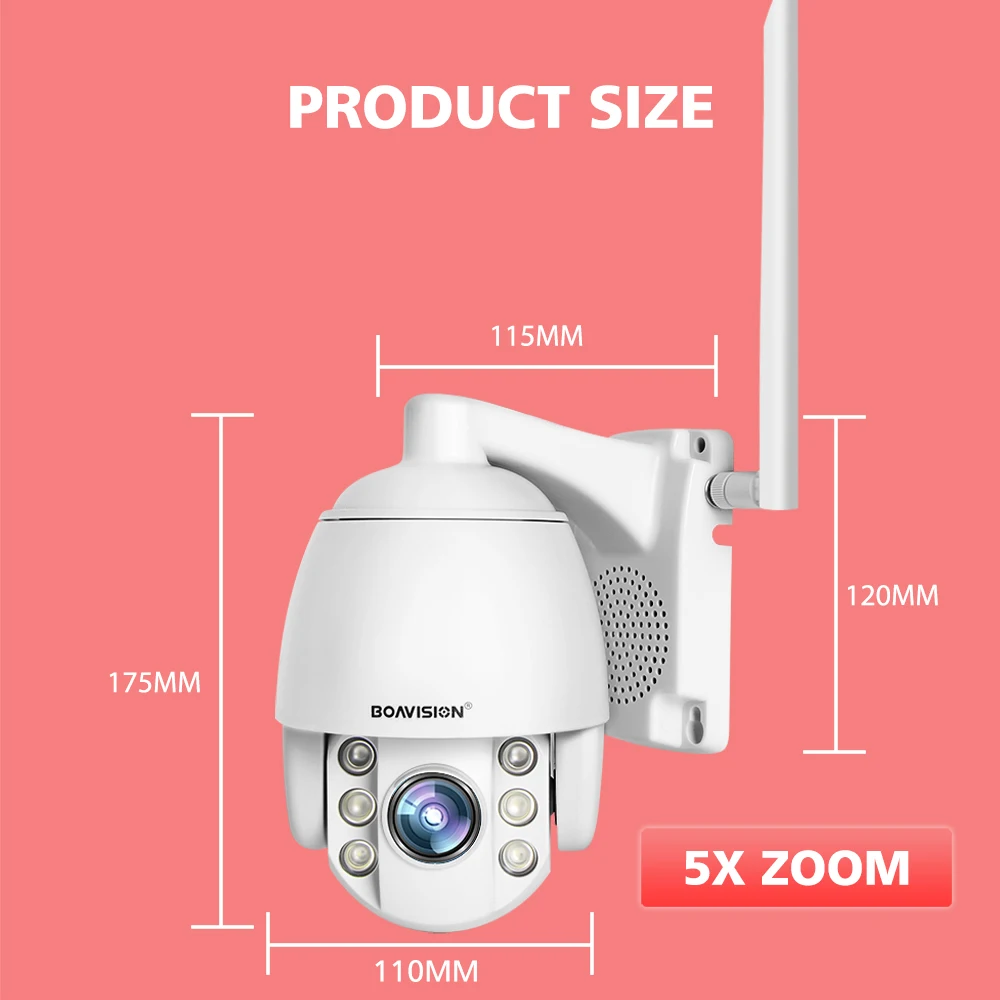

Size(mm) |
175*115*110mm |
||
|
Weight(kg) |
0.9kg |
||
|
Package Size(mm) |
250*250*100mm |
||
|
Package Weight(kg) |
1.1kg |
||
Packing List :
1*SIM 4G PTZ Camera Built-in Mic,Loud Speaker (TF Card optional choose )
1*Power Supply
1*CD and amp; Manual
1*Screws Bag
1*Antenna
