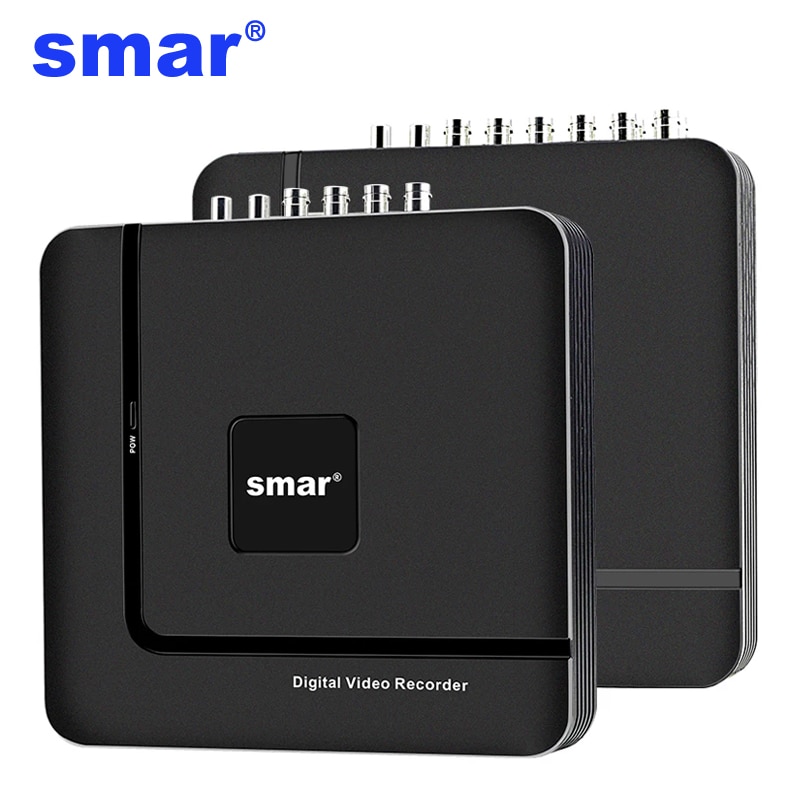

5 IN1 DVR Hybrid Video Surveillance 4CH 8CH 1080N AHD DVR H.264 ONVIF CCTV Recorder XMEYE Colud for AHD Analog IP TVI CVI Camera
HD iDVR Five in one: multi-mode input, support analog video encoding, support for high-definition video mixing analog inputs + network support pure HD network video input+AHD/TVI/CVI video encoding
Step on the Internet: With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Mobile monitor: Support various mobile monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android).
Display: support VGA, HDMI HD output.
Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
Browsers: Support IE. Chrome. Firefox. Safari browsers.
Remote Access: 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
Specifications for 4CH/8CH
|
Model |
SAE3000-A1204NHS |
SAE3000-A1208NHS |
|
|
Video |
Video compression |
H.264(High Profile) |
|
|
Encode capacity |
4*1080N@12fps |
8*1080N@12FPS |
|
|
Decode capacity |
1*1080N@12fps |
8*1080N@12FPS |
|
|
Multi-mode input |
ahd: 4*1080N/4*720P/4*960H analog + network: 2*720P(analog)+2*720P(network) pure network:8*1080P /12*960P/8*720P |
AHD:8*1080N/4*1080P Analog+Network:2*2080P AHD+2*1080P IP/4*1080P AHD+4*960P IP Pure Network:16*1080P/16*960P/4*5MP |
|
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
||
|
Audio |
Audio compression |
G.711A |
|
|
Intercom |
support |
||
|
Record and amp; Playback |
Record mode |
manual and gt;alarm and gt;motion detection and gt;timing |
|
|
Local Playback |
4ch(analog input mode) |
||
|
Storage and amp; backup |
Space occupation |
Video:1080P 30~ 40G / day*channel; 720P 20~ 30G / day* channel; 960H 12 ~ 20G / day * channel; Audio: 691.2M / day * channel |
|
|
Backup mode |
Network, U-disk, USB burner, SATA burner |
||
|
Interface |
Video input |
4ch BNC |
8CH BNC |
|
Video output |
1ch VGA, 1ch HDMI |
||
|
Audio input |
1ch RCA |
||
|
Audio output |
1ch RCA |
||
|
Alarm input |
0 |
||
|
Alarm output |
0 |
||
|
Network interface |
RJ45 10M/100M |
||
|
PTZ control |
1*RS485, Support multiple PTZ protocols |
||
|
USB |
2* USB 2.0 |
||
|
HDD |
1*SATA port (Max 6TB/per) |
||
|
Wireless |
|||
|
Other |
Power supply |
DC12V/2A |
|
|
ONVIF |
Onvif2.3 |
||
|
Working environment |
Temperature::0℃—+55℃,Humidity:10%—90%，Atm:86kpa—106kpa |
||
1* Mini AHD(AHD-M) DVR
1* USB Mouse
1* DC12V Power Adapter
1* User Manual
5 in 1 Function For 4 Channel, What’s 5 IN 1?
5 in 1 = AHD Mode +Analog Mode+Network Mode+TVI Mode+CVI Mode
AHD Mode: Support 720P/960P/1080P AHD Camera
Analog Mode: Support CIF,DI, 960H Analog Camera
Network Mode: Support 720P/960P/1080P
TVI Mode: Support TVI Camera
CVI Mode: Support CVI Camera
Support Multiple Languages, has English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, polish, Hebrew, etc……
PC and amp; Smartphone Remote View
Using the latest Cloud technology, Anytime, Anywhere… You Can Remote View via Smart Phones, Tablets, Notebook or PC.
Website Interface Via IE
Please login your Google or IE or Firefox browser,
Then input default address 192.168.1.10 in your browser
Username:amdin
Password:null (empty)
Remind: If you use the software first time, you need to install a plugin in your computer.
P2P Via Cloud XMEYE.NET
If you want to remote view thourh Internet
Please login your Google or IE or Firefox browser
Then input Website of P2P Cloud: www.xmeye.net
Input your P2P ID, and your password, login in.
How to remote view through Mobile phone?
1. You must be installed a APP in your mobile phone,where to find or download APP?
2. Please used your mobile phone to scan the following QR code.(iPhone APP,Android APP)
