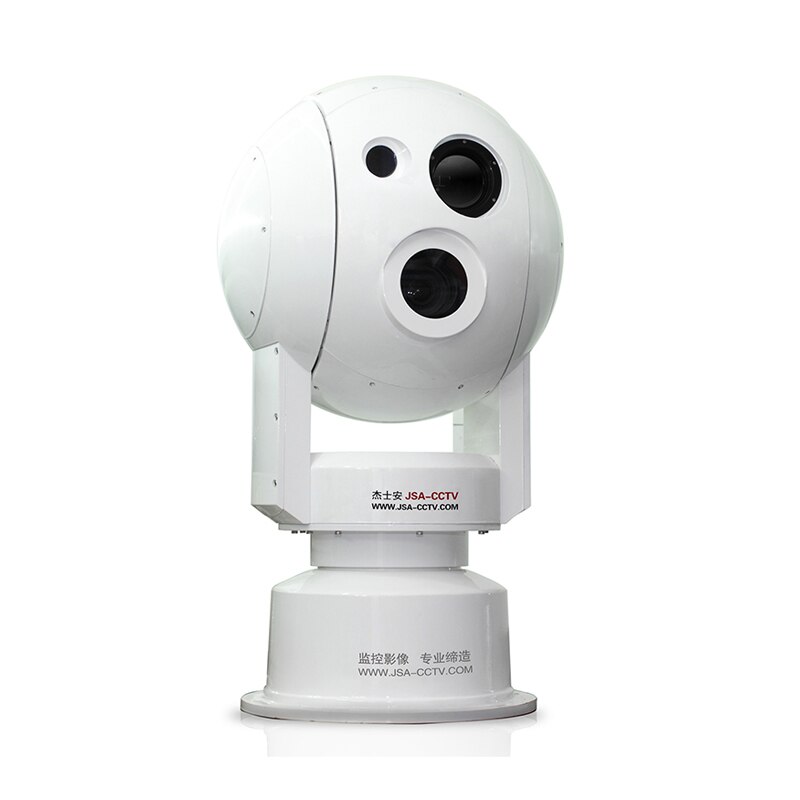

This series of products integrate laser illuminator or combine thermal imager, high-definition digital camera through fog, high-definition lens through fog, high-precision digital display anti-seismic gimbal and intelligent analysis system. Good contrast, clear imaging, high-resolution low-illumination color-to-black camera, continuous day and night monitoring, and the most distant objects at night can be found at 0.5-15 km [different models and different] characters activities, vehicles, facilities, etc .; achieve all-weather Real-time monitoring and management.

█ Features

1、optional night vision distance of 0.5-15 km; the lens has an automatic focusing function;2、fog-passing function, effectively improve the monitoring range and image clarity in foggy environment;3、Using Gaussian laser beam reforming technology, the beam quality is good, the light spot is uniform, and the laser density is high;4、 Beam splitter technology, the laser utilization rate is up to 100%, to avoid the waste of light by the only laser paired with the only lens;5、Support Chinese and English OSD screen menu, can set, demonstrate, run, delete, preset position, cruise path, pattern scan, left and right scan;6、The external fine adjustment of the optical axis, without disassembly, is convenient for maintenance, and the service life is more than 20,000 hours;7、APC photosensitive automatic control function, when the laser is turned on, the camera is locked to the black and white mode that can sense the laser;8、LAZ light source automatic zoom function, lens, gimbal, laser synchronous zoom and preset position function, make the operation simpler and more intelligent;9、Support AC24V / DC24V / DC36V / DC48 multiple power supply modes self-adaptive; with multiple protection functions such as slow start, overheating, overcurrent, overvoltage and so on.10、the maximum load of the gimbal is 60 ~ 100KG; the maximum horizontal rotation speed is 55 ° / s; the horizontal 360 ° is infinitely rotated, and the vertical is -45 ° ~ + 45 °, so that the monitoring has no dead angle;11、Intelligent temperature control system, waterproof and heat dissipation design to ensure long-term stable operation of the equipment; plug-in connection is used between the gimbal and the shield, no wiring is required;

█ Product Size(mm)

█ Specifications

Model

JSA-8TSOZY600TH307504K64075

Camera

Sensor

1/1.7″ Progressive Scan CMOS

Maximum pixel

4000[H]*3000[V]

Wide dynamic

55dB

BLC

automatic / manual

Day and night

automatic / manual

Lens focal length

30~750mm

Lens multiple

37.5X

Minimum illumination

Color: 0.2Lux; black and white: 0.1Lux

Ultra-wide dynamics

100dB

Automatic control

Auto white balance, auto focus, auto exposure, auto noise reduction, auto contrast enhancement

Thermal Imaging

Detector

Uncooled focal plane

Pixel pitch

17μm

Wavelength range

8~14μm

Resolution

640*480/30Hz [Optional 384*288/50Hz ]

Temperature measurement

Standard -20 ° ~ 150 ° [optional 20 ° ~ 1600 ° ultra-high temperature model]; temperature measurement accuracy ± 2 °; sensitivity: ≤60mk @ 30 °

Standard lens

75mm/Optional other specifications

coding

Main processor

HiSilicon

Compression standard

H.265/H.265 High Profile /MJPEG

Stream parameters

32K~32Mbps

Audio compression

G.711

Audio bit rate

64Kbps

Network

Phone monitoring

Support Android platform smartphone or tablet preview

Network protocol

PPPoE, DHCP, TCP / IP, HTTP, RTP / RTCP, RTSP, UPNP, SMTP, FTP, ONVIF; optional 28181

WIFI

Optional support 802.11b / g protocol, 2.4GHz or military satellite channel

4G/5G

Optional internal or external EVDO / WCDMA / TD-SCDMA module

Network Interface

10M / 100M adaptive Ethernet port

Alarm

Support; optional

Management model

IE / standalone management software / NVR / decoder / CMS platform server / third-party management platform

Networking information

Wired, optional wireless [WIFI / spread spectrum microwave / 4G ~ 5G / satellite, etc.], support SDI / CVI / IP or simulate multiple mixed mode networking

intelligent

Insight

Optional intelligent analysis modules such as companion warning line, intrusion detection, perimeter area, people statistics, face recognition, behavior analysis, target tracking, firework / smoke detection, vehicle detection, ship detection / tracking, aircraft intrusion detection, etc.

PTZ

Loading method

Sphere built-in

spinning speed

Pan 0.01 ° ~ 45 ° / S; pitch 0.01 ° ~ 15 ° / S;

Rotation angle

Horizontal 0 ~ 360 ° continuous rotation; pitch + 45 ° ~ -45 °;

Preset

80

Preset accuracy

±0.1°

Automatic cruise

8, each can set 10 cruise points

Automatic homing

Can set automatic homing time

Auto scan

1

Protocol

Pelco-D, Pelco-P optional

Baud rate

2400/4800/9600/19200 bps optional

Communication Interface

RS485 supports angle query return (optional RS422, real-time return)

itsit

Protection level

IP66

Wind resistance level

Level 12

Input voltage

AC110 ~ 220V ± 20%, 50 / 60Hz; optional solar and wind power supply system

weight

100KG

working environment

 -35 ℃ ~ 65 ℃; Built-in temperature control device



█ Application scenario

█ Application topology

█ Thermal imaging monitoring distance reference value correspondence table

█ Camera monitoring distance reference value correspondence table

Found the target [person, 1.7m], accounting for one-twentieth of the screen

Focal length [mm]

CCD height [mm]

Human height [m]

Identify other people’s faces [m] 1/4

Distinguish between men and women [m] 1/10

Discovery target [m]1/20

300

4.8

1.7

425

1063

2125

500

4.8

1.7

708

1771

3542

600

4.8

1.7

850

2125

4250

750

4.8

1.7

1063

2656

5313

1000

4.8

1.7

1417

3542

7083

1500

4.8

1.7

2125

5313

10625

Found the target [car, 2.3m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Car length [m]

Identify                  the model [m]

Resolution size [m]

Discovery target [m]1/20

300

6.4

2.3

431

1078

2156

500

6.4

2.3

719

1797

3594

600

6.4

2.3

863

2156

4313

750

6.4

2.3

1078

2695

5391

1000

6.4

2.3

1438

3594

7188

1500

6.4

2.3

2156

5391

10781

Found a fire [fire point, 2.5m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Mountain        width [m]

2.5*2.5 fire point [m]

10*10 fire point [m]

50*50 fire point [m]

300

6.4

200

3516

14063

70313

500

6.4

200

5859

23438

117188

600

6.4

200

7031

28125

140625

750

6.4

200

8789

35156

175781

1000

6.4

200

11719

46875

234375

1500

6.4

200

17578

70313

351563
