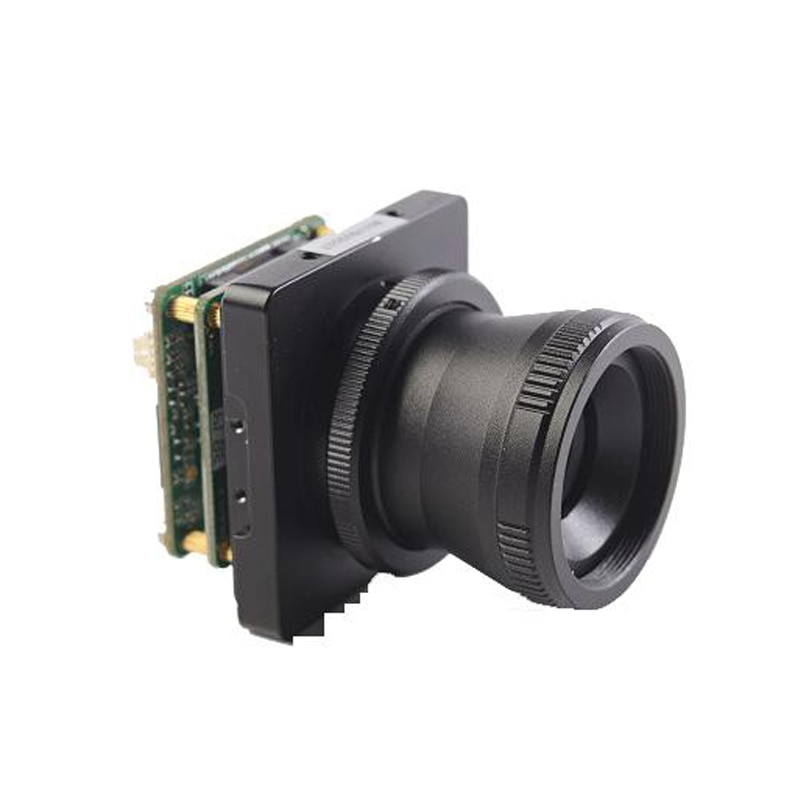

█ Product Image
█ Features
* Support image zoom function* Support 5 ～ 12V wide voltage DC power supply* Multiple display modes, suitable for different scenarios* Digital image enhancement processing, edge sharpening* Lens control, support motorized lens control and preset function* Support image flip mirror function and sun burn prevention function* Stepless magnification of image, image outline and target highlighting* Vanadium oxide uncooled focal plane infrared detector with high sensitivity* Supports analog video and H.264 / 5 network encoding output and ONVIF protocol [network models only]* Adopt non-blanking imaging technology, low power consumption, strong reliability, continuous and uninterrupted images* Wide gray-scale dynamic range, which can take into account the details of high and low temperature areas when observing* The whole machine has no mechanical moving parts, is ultra-impact resistant, and supports extended temperature measurement functions
█ Temperature measurement
The temperature measurement function is an optional function. The temperature measurement accuracy is related to the use environment and distance. Generally, the indoor temperature is about 20 degrees, the target distance is within 15m, the temperature measurement accuracy is ± 2 °, and the temperature measurement range is -20 ° ～ 150 °. The temperature measurement information can be seen in the upper left corner of the screen, C is the center point temperature, L is the lowest temperature, H is the highest temperature, and A is the average temperature. The lowest and highest temperatures have an automatic tracking function.
█ Specifications
|
Model |
JSA-8TLNM384C |
|
Resolution |
384×288 |
|
Cell spacing |
17μm |
|
Detector |
Uncooled vanadium oxide |
|
Wavelength range |
8～14μm |
|
Thermal sensitivity |
≤50mk@30℃ |
|
Image output |
≦5S |
|
Even correction |
Non-uniformity correction: electronic thermal image correction technology |
|
Image noise reduction |
Digital filtering |
|
Image enhancement |
Digital image detail enhancement technology, two enhancement modes |
|
Electronic zoom |
2x, 4x, 8x / stepless magnification |
|
Polarity reversal |
stand by |
|
Image mirroring |
Horizontal, vertical, 180 ° flip |
|
Frame rate |
50Hz |
|
Video output |
1 CVBS 50Hz (PAL) / 60Hz (NTSC) and RJ45 |
|
Color palette |
12 color palettes |
|
Grayscale adjustment |
automatic / manual |
|
Contrast degree |
Contrast and brightness adjustable |
|
OSD |
Firmware programming, full screen overlay |
|
Command interface |
3.3V TTL signal |
|
Keyboard interface |
support |
|
Analog interface |
1 |
|
Digital signal |
BT656 |
|
power |
DC 5～12V / and lt;2.0W |
|
Reverse connection protection |
support |
|
Overvoltage protection |
support |
|
Operating temperature |
-40℃～+60℃ |
|
storage temperature |
-50℃～+85℃ |
|
Working humidity |
≦ 95% (non-condensing) |
|
application |
Provide SDK package and supporting documents |
|
Lens |
Fixed lens 9mm or 13mm; other specifications are available |
|
Focusing method |
Fixed: manual, zoom: electric |
|
size |
32mm x 32mm x 41mm (module), 45mm x 45mm x 71mm (whole machine); / without lens |
|
weight |
and lt;65g (without lens) |
█ Lens parameters and observation distance table
|
Reference value of human and car observation distance |
||||||||
|
Model |
TLNM384C |
TLNM384C |
people（1.8m x 0.5m） |
car（4.2m x 1.8m） |
||||
|
Focal Length |
Field of View（°） |
Field of View（°） |
Probe m |
Identifym |
identifym |
Probe m |
Identifym |
identifym |
|
8mm |
41.9×34.0 |
68.4×54.0 |
180 |
60 |
30 |
540 |
180 |
90 |
|
13mm |
26.5×21.3 |
45.4×35.8 |
300 |
100 |
50 |
870 |
290 |
150 |
|
15mm |
23.1×18.5 |
39.9×30.4 |
330 |
110 |
60 |
1020 |
340 |
170 |
|
19mm |
18.3×14.7 |
32.0×24.2 |
420 |
140 |
70 |
1290 |
430 |
210 |
|
25mm |
14.0×11.2 |
24.6×18.5 |
540 |
180 |
90 |
1680 |
560 |
280 |
|
40mm |
8.7×7.0 |
15.5×11.6 |
900 |
300 |
150 |
2700 |
900 |
450 |
|
50mm |
7.0×5.6 |
12.4×9.3 |
1100 |
370 |
180 |
3390 |
1130 |
560 |
|
75mm |
4.7×3.7 |
8.3×6.2 |
1650 |
550 |
280 |
5070 |
1690 |
850 |
|
100mm |
3.5×2.8 |
6.2×4.7 |
2200 |
740 |
370 |
6770 |
2260 |
1130 |
|
150mm |
2.3×1.9 |
4.2×3.1 |
3300 |
1100 |
550 |
10150 |
3380 |
1690 |
█ Module interface definition
J4 interface：
|
Pin |
Pin definition |
definition |
Level |
|
1 |
VSYS |
System power input（DC5～12V） |
|
|
2 |
GND |
Power ground |
|
J5 interface：
|
Pin |
Pin definition |
definition |
Level |
|
1 |
PWF |
Focusing motor power |
|
|
2 |
P_CVBS |
Analog video output |
|
|
3 |
VBAK_F |
Focus motor voltage feedback |
|
|
4 |
GND |
Analog video ground |
|
|
5 |
GND |
Signal ground |
|
|
6 |
DEBUG_TXD |
Debug serial send |
RS232 |
|
7 |
PWZ |
Focus motor power |
|
|
8 |
DEBUG_RXD |
Debug serial port reception |
RS232 |
|
9 |
VBAK_Z |
Focus on motor voltage feedback |
|
|
10 |
GND |
Signal ground |
|
|
11 |
GND |
Signal ground |
|
|
12 |
SWD_CLK |
SWD clock |
|
|
13 |
FMOTOR_M |
Focus motor drive 2 |
|
|
14 |
SWD_DIO |
SWD data |
|
|
15 |
FMOTOR_P |
Focus motor drive 1 |
|
|
16 |
nRST |
SWD reset |
|
|
17 |
ZMOTOR_M |
Focus motor drive 2 |
|
|
18 |
SHUTTER_ON |
Baffle |
|
|
19 |
ZMOTOR_P |
Focus motor drive 1 |
|
|
20 |
V3D3 |
3.3V power supply, shield and SWD multiplex |
|
J6 interface：
|
Pin |
Network name |
definition |
Level |
|
1 |
USB_DM |
USB differential signal- |
|
|
2 |
GND |
Signal ground |
|
|
3 |
USB_DP |
USB differential signal + |
|
|
4 |
GND |
Signal ground |
|
|
5 |
V_DAT0 |
BT656 data |
3.3V |
|
6 |
V_DAT1 |
BT656 data |
3.3V |
|
7 |
V_DAT2 |
BT656 data |
3.3V |
|
8 |
V_DAT3 |
BT656 data |
3.3V |
|
9 |
V_DAT4 |
BT656 data |
3.3V |
|
10 |
V_DAT5 |
BT656 data |
3.3V |
|
11 |
V_DAT6 |
BT656 data |
3.3V |
|
12 |
V_DAT7 |
BT656 data |
3.3V |
|
13 |
V_CLK27M |
BT656时钟 |
3.3V |
|
14 |
GND |
Signal ground |
|
|
15 |
COM_TXD |
Communication serial TX |
3.3V |
|
16 |
COM_RXD |
Communication serial RX |
3.3V |
|
17 |
GND |
Signal ground |
|
|
18 |
PWM0 |
PWM3 channel 0 |
3.3V |
|
19 |
PWM1 |
PWM3 channel 1 |
3.3V |
|
20 |
PWM2 |
PWM3 channel 2 |
3.3V |
|
21 |
PWM3 |
PWM3 channel 3 |
3.3V |
|
22 |
GND |
Signal ground |
|
|
23 |
GND |
Signal ground |
|
|
24 |
GND |
Signal ground |
|
|
25 |
KEY_COL0 |
Row column keyboard column 0 |
3.3V |
|
26 |
KEY_COL1 |
Row column keyboard column 1 |
3.3V |
|
27 |
KEY_COL2 |
Row column keyboard column 2 |
3.3V |
|
28 |
KEY_ROW2 |
Row keyboard row 2 |
3.3V |
|
29 |
KEY_ROW1 |
Row keyboard row 1 |
3.3V |
|
30 |
KEY_ROW0 |
Row keyboard row 0 |
3.3V |
█ Module supporting interface cable：
2-pin connection cable: Connect the J4 interface in the above section for power connection. Please use 5 ～ 12V DC power supply.20-pin connector: Connects to the J5 connector in the above section, for video output and power supply and control of motorized lenses30 pin connection cable: Connect the J6 interface in the above section, the line spacing is 0.5mm, it is used to output digital signals and communication serial port and keyboard connection, digital signals can output 16-bit original data and 8-bit BT656 data, USB can be transmitted Video data and raw data.
█ Machine size chart
█ Machine interface diagram
█ Machine shipment list table
|
Material name |
Quantity |
Note |
|
Infrared camera movement |
1 |
Standard |
|
Fixed lens |
1 |
9mm or 13mm |
|
Warranty Card |
1 |
Standard |
|
user’s Guide |
1 |
Electronic file / Official website download |
█ Module shipment list table
|
Material name |
Quantity |
Note |
|
Infrared camera movement |
1 |
Standard |
|
Fixed lens |
1 |
Configure according to requirements |
|
2-pin cable |
1 |
Standard |
|
20-pin connection cable |
1 |
Standard |
|
30 pin cable |
1 |
Optional |
|
Warranty Card |
1 |
Standard |
|
user’s Guide |
1 |
Electronic file / Official website download |
█ Precautions
1、Protect the equipment from moisture or rain!2、Do not shake or bump the device strongly during use and transportation!3、The storage temperature of the equipment must not be lower than -50 ° C or higher than 85 ° C!4、The equipment should be stored in a cool and dry environment without strong electromagnetic fields!5、Avoid oil stains and various chemicals from contaminating the lens surface and damaged surfaces!6、It is strictly forbidden to point the device lens directly at a strong high-temperature radiation source (such as the sun) whether the device is on or off, so as to prevent the device from working properly or even being damaged!
