2015 Custom new video wall with Hydraulic bracket 46 Inch DID LD Video Wall Bezel 5.3mm led Display 4×6 Rf remote LCD video wall

Basic spec
Panel size 46″ LG and amp;  Samsung  A+ full new original LCD screen
Resolution 1080*1960
Viewing angle 178°/178°(H/V)
Color 16.7M
Backlits LED
Brightness 500 cd/m2
Contrast ratio 3000:1
OS Windows 7 and Android 4.4 option
Touchscreen 12points capacitive touchscreen
Function Full flate, water-proof, RFID card reader
Network RJ45, 3G, WIFI (optional)
Voltage AC100-240V 50/60HZ
Stability good
Interface VGA/HDMI/USB
Temperature -5°C-75°C
Material Aluminum alloy,tempered glass
Surface Spraying, frosted aluminum
Shell Galvanized      steel sheet. Thickness: 1.0-1.5mm
Color Black , white , silver or customized colors
Packing By carton with foam inside and amp; woonden



Android OS:
OS Android 4.0.4 OS
CPU Cortex-A8,1.5GHZ
DDR 1G DDR3
ROM: 4G NAND FLASH
Exteral ROM Support up to 32G bytes sd card and support stata hard disk interface
WiFi Support 802.11b/g/n wifi module
Interface USB2.0,HDMI,Ypbpr,VGA,AV,SD card slot,3G interface,SIM Card,RJ45



Windows OS(PC1 solution)
CPU Intel Dual core T7100/1.8 Processor (1.8GHz, Dual Core)
Chipset INTEL®GM45+ ICH9M-E
RAM 4GB DDR3 1333 RAM (Up to 6GB)
Graphics built in INTEL® GMA X4500M HD diplay card
Audio HD 8-channel (7.1) audio subsystem
Network Interface Card 10/100/1000M Gigabit Ethernet Controller
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 128 GB SSD
Speaker 2 build-in high quality stereo speakers (5w
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows7
TV Tuner No



Windows OS(PC2 solution option):
CPU Intel i3 (3th generation, Dual Core)
Chipset Intel H61 Chipset
RAM 4GB DDR III 1333 RAM (Up to 16GB)
Graphics Integrated with CPU
Audio HD 8-channel (7.1) audio subsystem
Network Interface Card 10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi High quality WiFi module included (802.11 B/G/N)
H.D.D. 120GB SSD
Speaker 2 build-in high quality stereo speakers (3w or 5w)
O.D.D DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit (Optional)
Pre-Installed OS Windows 8 or Linux
TV Tuner Optional



Ultra Narrow Bezel Optional:8mm, 5.3mm, 3.5mm
The OverView series comprises 46″ and 55″ LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.

In the field of large-screen mosaic, traditional DLP big screen has gradually lost
competitiveness because of the high maintenance costs and it does not fit to display
the high-definition dynamic images. Large-screen LCD video wall began to widely
used in the industry because of the advantage of its excellent high-tech display,
low power consumption, cheap and convenient maintenance.







Applications

LCD Video Wall Displays

The  AutoMedium LCD video wall is an excellent solution for both large and small control rooms, especially where space is limited. It’s an easy to operate, self-contained LCD video wall display for network monitoring, emergency operations, process control, security monitoring and military applications. This economical video wall employs either “thin bezel”, or the latest “ultra-thin bezel” commercial LCD displays with LED back lighting. This LCD video wall display is expandable to grow as your requirements grow. Select from four high-definition screen sizes. Combine this LCD video wall with matching control room furniture manufactured to your specifications.



How the Auto Medium LCD Video Wall Works

The  AutoMedium LCD video wall display offers the most advanced screen management tools available. Easily assign an individual image to fill each screen, assign multiple images to each screen, or enlarge an image across the entire screen matrix, or part of the screen matrix. Build the LCD video wall display with as many screens as space allows. Ultra-thin bezels are the least distracting when enlarging images across multiple displays, however if you don’t plan to enlarge images, the less expensive thin bezel models may be the best choice.

AutoMedium 2×2 LCD Videowall AutoMedium  2×2 LCD Videowall AutoMedium  2×3 LCD Videowal
The  AutoMedium LCD video wall cabinetry is uniquely designed to provide easy equipment access while shifting the weight of the displays from the wall to the floor. Although the cabinetry is attached to the wall, it rests on the floor. This is of critical importance because the walls of most commercial buildings are not constructed to support the weight of multiple large displays. This is an obvious safety concern, especially in earthquake zones. The base cabinet is the conduit for cabling and the storage space for racked electronics. The cabinetry is modular, expandable and easy to relocate.
AutoMedium video walls with commercial grade LCD panels and high-definition signal processing combine to form a powerful monitoring tool that’s easy to learn and simple to operate.


1.High-definition direct view LCD panels with video processor (controller) and optional sound settings.

2.Windows software with wireless keyboard and mouse operation; touch panel control optional.

3.Simultaneously display internet, network applications, individual computers, cameras and TV sources.

4.Size and move images across the entire video wall matrix with the click of a mouse.

5.Image processing compensates for bezels; no information is lost.

6.Modular, expandable and customized to ceiling height and wall space.

7.Installation and training completed in one day in most cases.

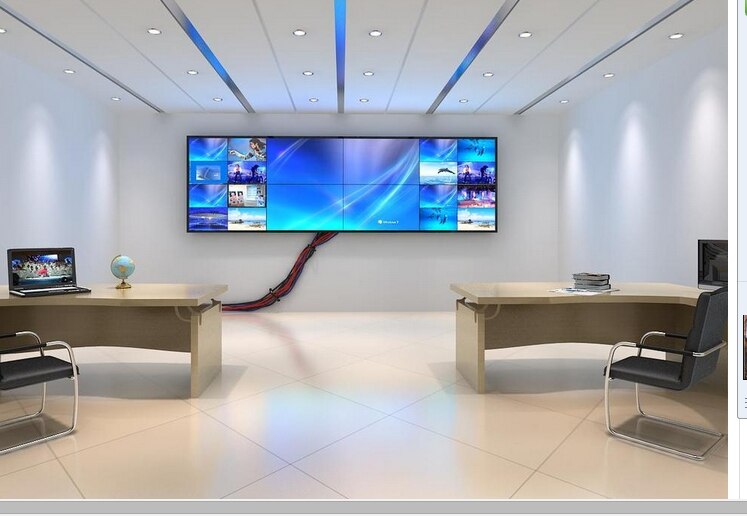

2×3 Matrix with Multiple Images 2×2 Matrix with Enlarged Image 2×2 Matrix with Enlarged Image

More About LCD Video Wall Technology

 LCD video walls  are basically comprised of commercial grade flat panels placed edge-to-edge with a video processor. This high-definition LCD video wall display system with LED  back-lighting  is mounted on the wall using a steel apparatus that ensures adequate alignment, or is installed in a specially designed freestanding cabinet like our Visionmaster video walls. You can expect the depth of installed displays to be between nine and twelve inches depending on method of mounting and screen size. LCD panels designed for videowalls have improved significantly in recent years making them the preferred choice for small spaces and limited budgets, however they don’t last forever and will eventually have to be replaced. LCD panels are getting larger, slimmer, lighter, and are now available with thin enough bezels (frames) to make them a solid alternative to projection cubes for video walls. However, LCD panel manufacturers are changing their product lines frequently, so when yours eventually fail, you want a manufacturer that can replace it with an identical model years after purchase.
