NOTICE
Please contact us to confirm the demand before placing the order. The product can be customized with a variety of ultra-high resolution modes, and the customized mode cannot be changed.
Supported models
This model of product can be supported 4×4,the whole video wall resolution is 7680×4320@60HZ. also it can be supported2x3, 2×4, 2×5, 2×6, 2×7, 2×8 madel ,and Ultra high resolution as follow:
Brief introduction

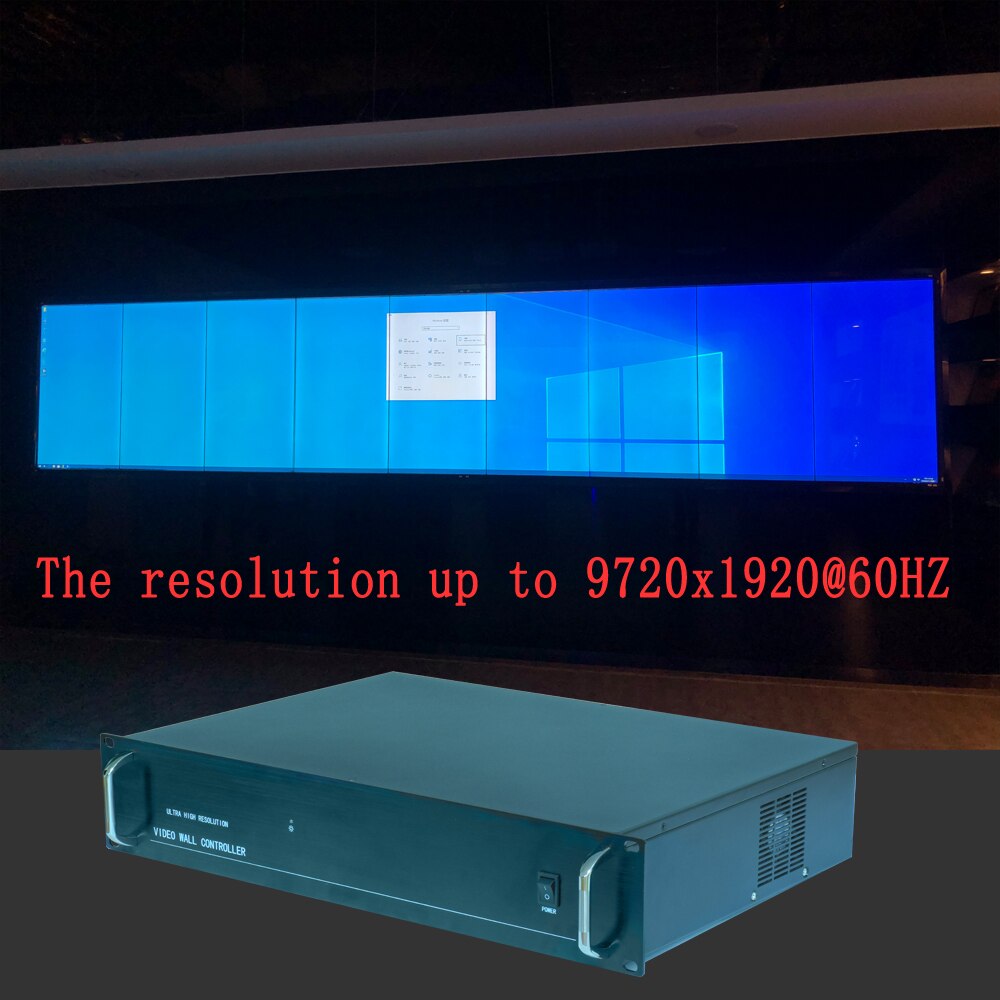

TK-mosaic is a splicing controller specially developed for super pixel mosaic wall display. It can display the super resolution required by users with no damage, no amplification, no delay, no stuck and point-to-point display. If completed with high performance PC 15360×4320@60HZ 4×8 splicing mode 15360×[email protected] mosaic ultra-high resolution splicer adopts pure hardware architecture, modular design, ultra clear high-speed image processing chip, and high-performance PC, which can fully meet the needs of user point-to-point splicing
Main function
1.The overall output of a super large, pixel lossless, point-to-point ultra-high resolution to the large screen splicing wall;2.The point-to-point @ 60Hz processing chip is used for input and output, and the image does not flicker and the mouse does not jam;3.The modular design and high-performance PC or graphics processor can be used for point-to-point splicing of infinite units;4.Built in scalar function, no need to read the display unit EDID, start more quickly and stably;5.The non coding and decoding technology is adopted, and the image processing has no delay, no compression and no frame loss, and the color is real and natural;6.Multi screen splicing supports each display unit to display web pages or other windows programs adaptively;7.It supports HDMI and DisplayPort signal input at the same time, and the input signal is automatically recognized and automatically switched;8.The standard 2U cabinet can be directly installed into the standard cabinet;
Topology
The topology is for reference only.
Cases
The 3×6 video display a resolution of 11520×3240@60HZ ;The 4×6 video wall display a resolution of 11520×4320@60HZ.
Topology
The topology is for reference only.
Cases
The 3×6 video display a resolution of 11520×3240@60HZ ;The 4×6 video wall display a resolution of 11520×4320@60HZ.
