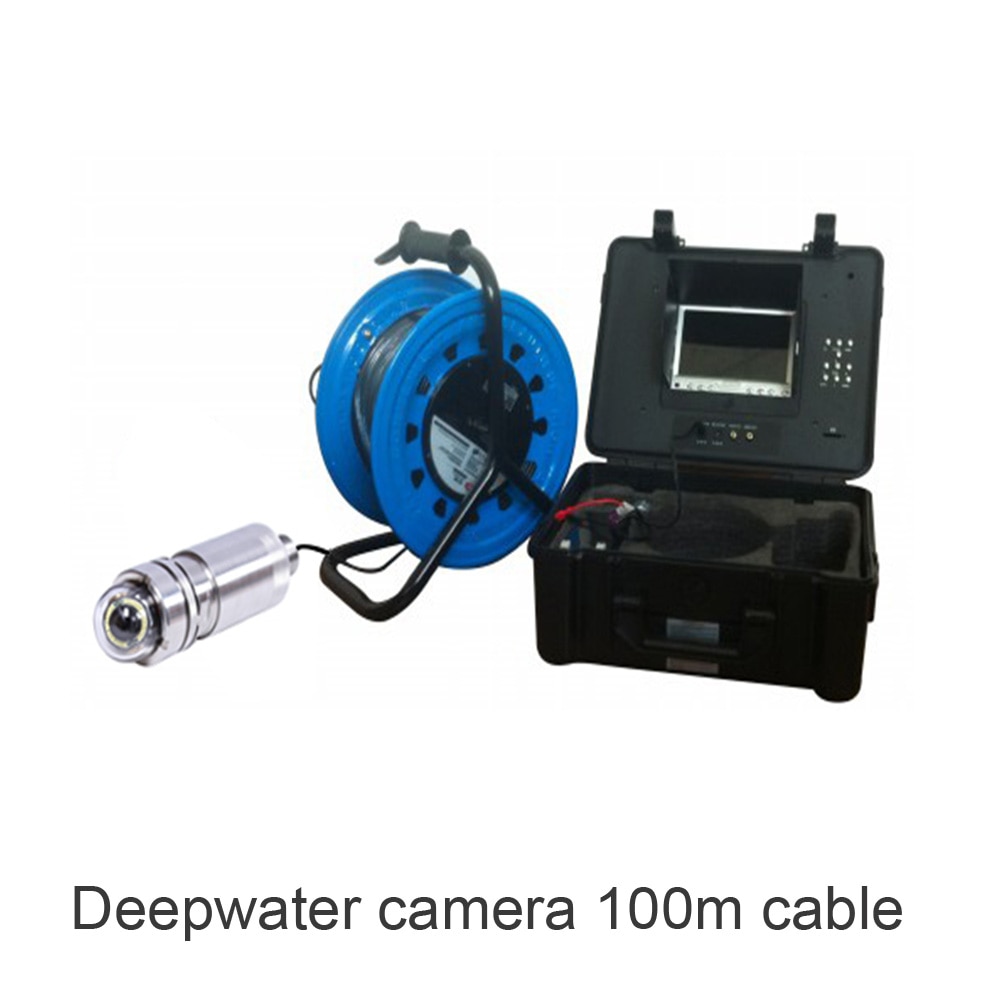

100-300M Cable Deep water camera Underwater fishing camera surveillance industry inspection night vision DVR system
Potentiometer display specifications:
1. 7 “color digital screen
2. Resolution: 800 (H) x 480 (V)
3. Voltage: DC 12V
4. OSD language: English,
5. Up, down, left and right adjustable
6.16:9 display
7. Built in sunshade
8. Battery: 4500ma battery or lithium battery, working time: 5-6 hours (under normal temperature of 20 ℃)
9. Working temperature: – 20 ° C-60 ° C
10. Portable ABS plastic box
Camera specifications:
1. Camera size: 195mm (L) x Φ 75mm (diameter)
(Φ 45mm, 55mm optional)
2. Camera material: high strength stainless steel 304
3. Camera lens material: toughened glass
4. Sensor: 1 / 3 inch Sony CCD
5. Definition: 1000 lines
6. Camera angle: 130 ° lens, 360 ° rotation
7. Waterproof grade: IP68
8 fill light: 11 white light or infrared light
9. Camera cable length: 100 / 200m/300m
10. Working current of camera: 150mA
11. Camera voltage: DC 12V
12. Working environment: underwater use
18. Working temperature: – 10 ° c-50 ° C
Winding wheel
1. Wire wheel size: 400 (L) x 315 (W) x 430 (H) mm
2. Cable material: waterproof and cold resistant cable, tensile force: more than 30kg
3. Line length: 100M, 200m,300m
4. Underwater cable diameter: 5mm
5. Underwater cable color: black or yellow box
6. Manual winding wheel
Recording function specification:
1. Working voltage of video recording: 12V
2. Working current of video recording: 200mA
3. Memory card: SD card (maximum support: 32g)
4. Digital clock and calendar
5. Video image resolution: 720×576 (D1)
6. Image capture function and video recording function
7. Video format: avi
