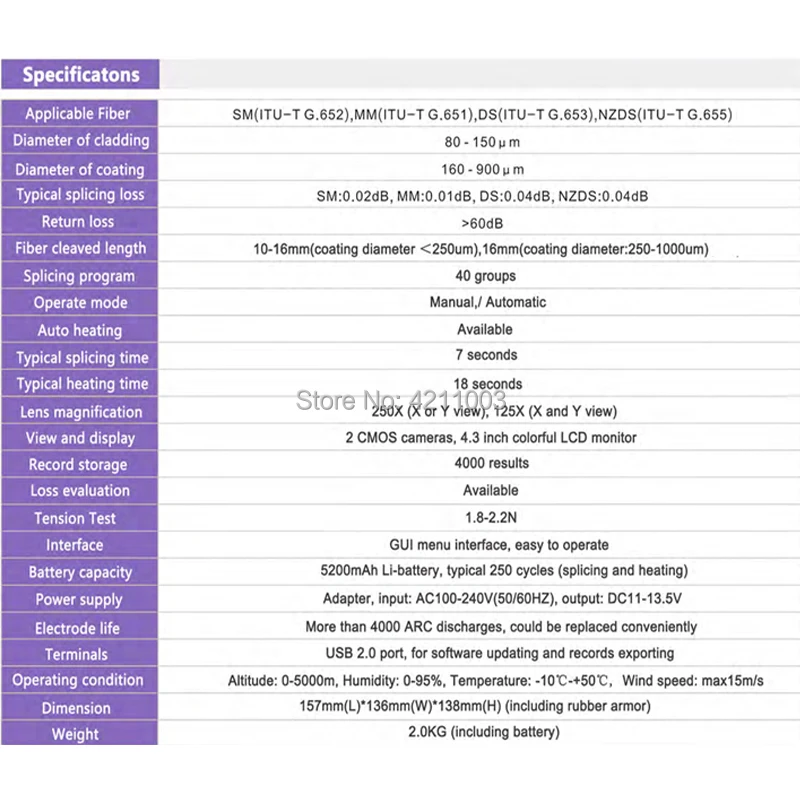

Applicable fiber

SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)

Fiber count

Single

Applicable fiber dimensions

Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm

Typical splice loss

0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss

and gt;60db

Fiber cleaved length

10-16mm (coating diameter and lt; 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program

40 groups

Operate mode

Manual, Automatic

Auto-heating

Available

Typical splicing time

7 seconds

Typical  heating time

26 seconds

Fiber view magnification

250X(X or Y view), 125X(X and Y view)

Viewing method and display

2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result

4000 results

Loss evaluation

Available

Tension test

1.8-2.2N

Interface

GUI menu interface, easier operation

Battery capacity

5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery

Power supply

Adaptor, input: AC100-240V(50/60HZ), output: DC13.5V

Electrode life

More than 4000 ARC discharges, can be replaced conveniently

Terminals

USB 2.0 port, for uploading splice results and upgrading software

Operating condition

Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s

Dimension

149mm(L)x120mm(W)x127mm(H)

Weight

1.90kg including battery
