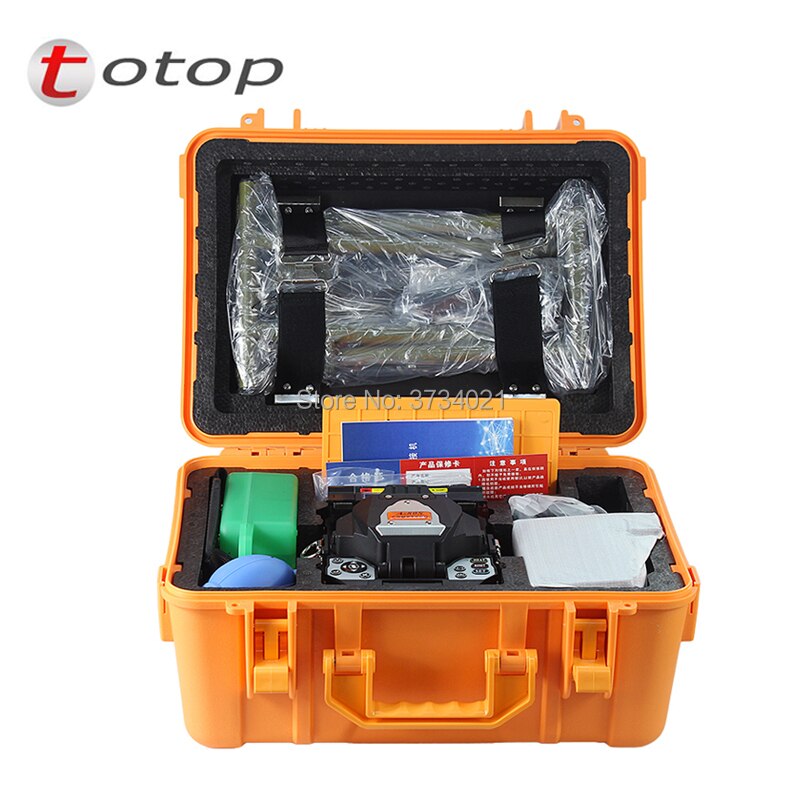

Top Quality Automatic Fusion Splicer A-80S, Fiber Optic welding Machine Splicing machine

SPECIFICATION:

Applicable optical fiber
SM(G.652 and amp;G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber types
Splicing loss
0.02dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
Return loss
Over 60dB
Typical splicing duration
9 seconds
Typical heating duration
26 seconds(configurable heating time and adjustable heating temperature)
Optical fiber alignment
Precise alignment, fiber core alignment, cladding alignment
Optical fiber diameter
Cladding diameter 80-150μm, coating layer diameter 100-1000μm
Cutting length
Coating layer below 250μm:8-16mm;coating layer 250-1000μm:16mm
Tension test
Standard 2N(Optional)
Optical fiber clamp
Multi-function clamp for bare fiber, tail fiber, jumpers, leather line; changing clamp applicable for SC and other connectors for
a variety of FTTX optical fiber and cable.
Amplification factor
400times(X axis or Y axis)
Heat Shrink bush
60mm,40mm and a series of minature bush
Display
5.0 inches TFT color LCD display
External interface
USB interface, convenient for data download and software upgrade
Splicing mode
17 groups of operation modes
Heating mode
9 groups of operation modes
Splicing loss storage
5000 latest splicing results are stored in the built-in storage
Built-in battery
Supports continuous splicing and heating for less than 200 times
Power supply
The built-in lithium battery 11.8V supplies the power, charging time≤3.5h; External adapter , input AC 100-240V 50/60Hz, output DC
13.5V/4.81A
Power saving
15% of the power of the lithium battery can be saved in a typical environment
Working environment
Temperature:-10~+50℃, Humidity: and lt;95%RH(no condensation), Working altitude:0-5000m, Max. wind speed: 15m/s
Outer dimension
158mm(long)x130mm(wide)x156mm(high)
Lighting
Convenient for optical fiber installation in the evening
Weight
1.77kg(excl.battery) 2.14kg(incl.battery)
