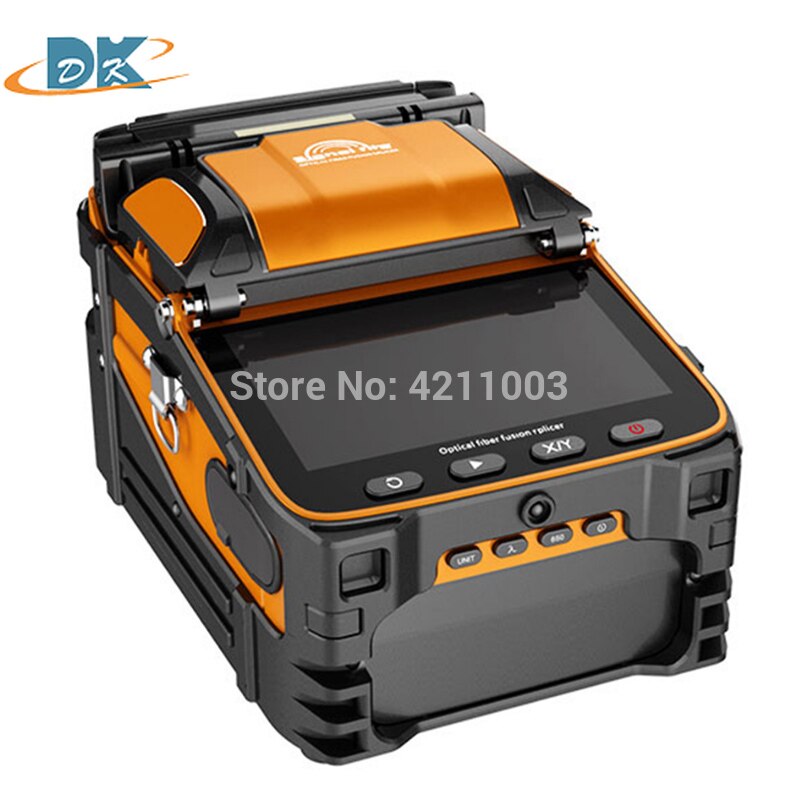

splicing fiber optic signal fire ai 9 fusion splicer 5s FTTH Fusion Machine Signalfire AI-9 Optical fiber welder

Product Description:

Product Information:

Fiber diameter: cladding diameter: 80-150μm, coating diameter: 100-1000um.

Cutting length: coating layer less than 250μm: 8-16mm, coating layer 250-1000μm: 16mm.

Heat shrink tubing: 60mm, 50mm, 40mm, 25mm.

Product protection: waterproof, dustproof, and drop-proof.

Tension test: standard 2N.

Optical fiber clamp: multi-functional disassembly-free clamp, suitable for single-mode/multi-mode, multi-core, optical cable/bare fiber, pigtail, patch cord, and leather cable.

Magnification: 300 times (X-axis or Y-axis) 150 times (X-axis and Y-axis synchronization).

Display: 5-inch TFT color display.

Software upgrade: APP Internet update, turn on Bluetooth to synchronize to the machine.

Welding mode: conventional/high precision welding.

Data storage: unlimited, 1000 sets of machine storage, the excess part is automatically stored on the server, and data can be exported.

meelight.aliexpress.com

Built-in battery: 7800mAh large-capacity lithium battery, when the charging time is ≤3.5, it can be continuously welded and heated about 240 times.

Power supply: input AC100-240V 50/60HZ, output DC13.5V/4A, the current power mode can be identified, and the current battery power can be monitored in real time.

Working environment: temperature: -15~+50°C, temperature: and lt;95%RH (non-condensing), working altitude: 0~5000m, can resist maximum wind speed: ≤15m/s.

LED lighting: convenient for night construction lighting.

Boot time: 1 second.

Red light source power: 15mW, 2Hz blinking and constant light mode.

Power meter wavelength: 850nm; 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

Measuring range: -70~+6dBm absolute error: and lt;0.3dB (-50dBm~+3dBm range).

Package Included:

1x toolbox
1x cutting knife
1x electrode rod

meelight.aliexpress.com
1x leather wire stripper
1x Three-port Miller pliers
1x strap
1x hand strap
1x power adapter
1x alcohol bottle
1x brush
1x bare wire for discharge correction
1x manual

Features:

1. 6 motors, 5 seconds welding, Heating in 15 seconds.
2. Support 300 times focus zoom
3. Large capacity battery 7800mAH, support 240 continuous welding.
4. Comes with OPM and amp;VFL to help evaluate the quality of optical fiber link transmission.
5. Built-in 10 languages, covering most countries in the world.
6. Three-in-one universal fixture, supporting single-mode/multi-mode, multi-core optical cable/bare fiber, pigtail, patch cord, and leather cord

meelight.aliexpress.com
7. Industrial-grade chips, super-speed experience. Power on for 1 second, quickly enter the state without waiting.
8. Toolbox with its own bench, humanized design, convenient for temporary construction rest.
