SM and amp;MM Automatic Optical Fiber Fusion Splicer Signalfire AI-7S 6s FTTH Fiber Optical Welding Splicing Machine

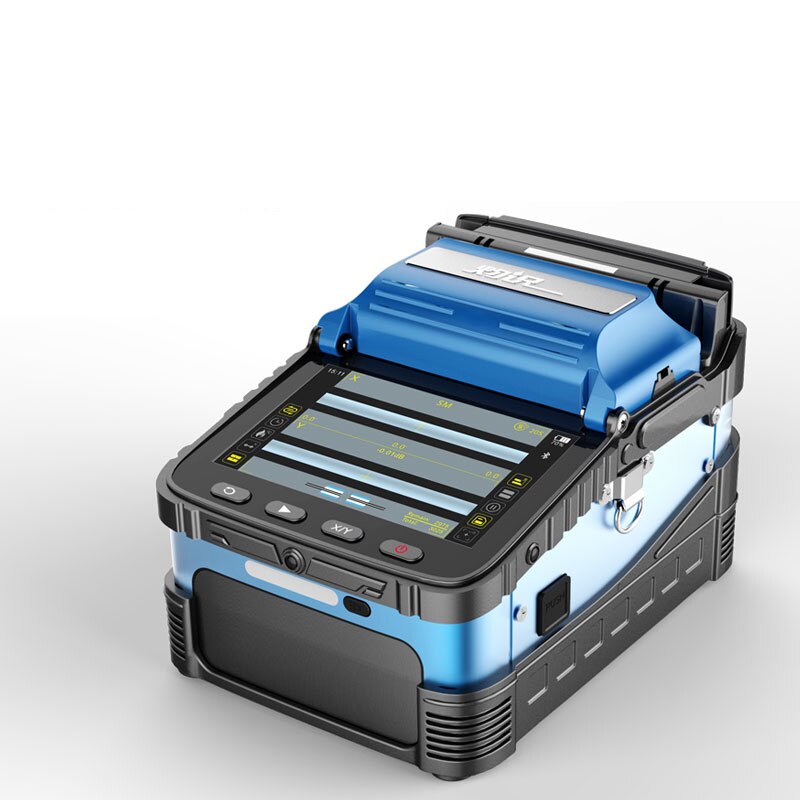

Optical Fiber Fusion Splicer AI-7S
|
Signal Fire AI-7S adopts the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 6 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. |
Applications:
-
Applicable Fibers SM(G.652 and amp;G.657),MM(G.651),DS(G.657),NZDS(G.655) Splice Loss 0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS) Focus mode Auto focus Fiber alignment Core/cladding alignment Manual alignment Typical splicing time 6S Typical heating time 15 S
Fast heating function, heating time can be setControl technology Real-time control and calibration of fusion ARC Return loss Better than 60DB Fiber diameter Cladding Diameter 80-150μm,Coating Diameter 100-1000μm Fiber Cleave Length Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm Heat shrinkable tube 60mm,40mm,50mm,25mm Tension Test Standard 2N Fiber holders Multi function holders,Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable Magnification 300 for X or Y view, 150 for X or Y view Screen 5.1 inch TFT color display Software upgrade Mobile APP update,Turn on Bluetooth sync to the machine Splicing Mode Normal / high precision splicing Splicing record storage Synchronize to the phone, the server to cloud storage unlimited Built-in battery 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 200 times Power supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power Operating Conditions Temperature -15 ~ +50 ℃, humidity: and lt;95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s Built-in lighting easy for night operation
Packaging and amp; Delivery
|
Package |
Case packing / Carton package 335 x 360 x 390 MM 8KGS |
|
Delivery Details |
Ready to deliver within 5 working days upon receipt |
