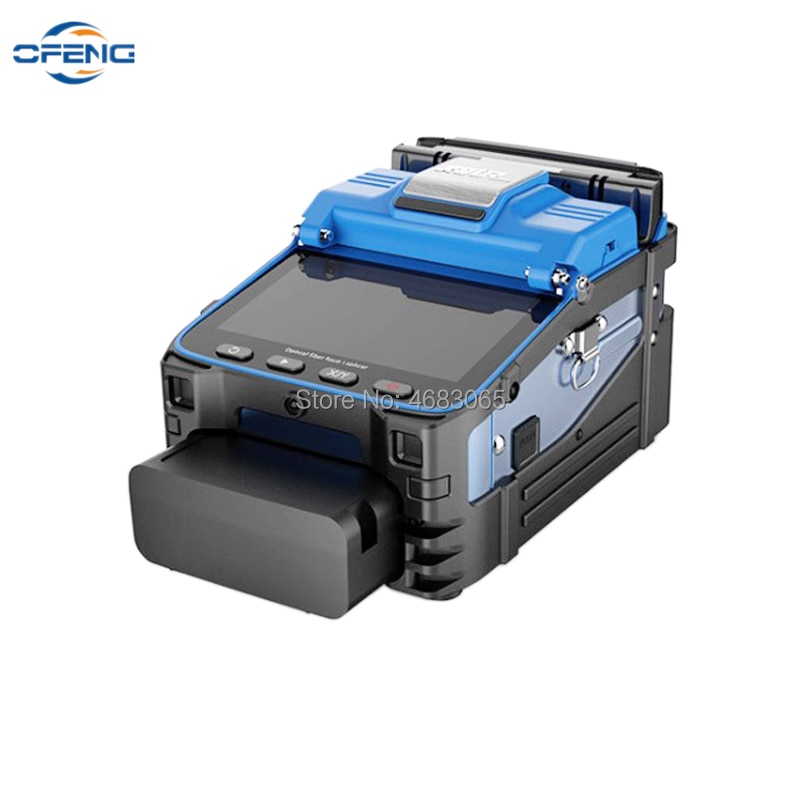

Six motors auto focus signalfire AI-7V welding splicer fusion splicing machine 6S 15S

Six motors auto focus signalfire AI-7V welding splicer fusion splicing machine 6S 15S



Six motors auto focus signalfire AI-7V welding splicer fusion splicing machine 6S 15S



Specification:

Fiber alignment
Core/cladding alignment/ manual alignment
Splicing time
6s
Heating time
15s
Heating mode
Automatic heating (preheating)
Focus mode
Six motors auto focus
Applicable fibers
SM MM DS NZDS
Splice loss
0.025db(sm) 0.01db(mm) 0.04db(ds/nzds)
Control technology
Real-time control and calibration of fusion ARC
Return loss
Better than 60db
Fiber diameter
Cladding diameter:80-150umCoating diameter:100-1000um
Fiber cleave length
Coating less than 250um:8-16mmCoating less than 250-1000um:16mm
Software update length
Automatically update,update by a key
Boot time
1 second
Built-in lighting
Easy for night operation
Tension test
Standard 2N
Fiber holders
3 in 1 fiber holder,sm,mm,bare fiber,pigtail,rubber-insulated,multi fiber cable
Magnification
300 for x or y view,150 for x or Y view
Screen
5 inch TFT color display
Splicing Mode
Normal/high precision splicing
Splicing method
Fully automatic,step by step splicing
Splicing record storage
Synchronize to the phone ,the server to cloud storage unlimited
Built-in battery
7800 mA high-capacity lithium battery,charging time and lt;=3.5 hoursContinuous splicing and heating about 200 times
Power supply
Input AC 100-240V 50/60HZ Output DC13.5v/4A,the current power mode can be identified,real-time detection of battery power
Operating conditions
Temperature -15~+50°C ,humidity: and lt;95% RH(no condensation) Working altitude:0~5000m,resist max,wind speed: and lt;=15m/s
Shrinkable tube
60mm,50mm,40mm,25mm
Product protection
Waterproof,dust proof,shock-resistant



*AI-7V  Adopt fiber core alignment technology, auto focus, six motors, a new generation of optical fiber fusion splicer, used for short-distance trunk line, FTTH entry, security monitoring and other fiber optic cable fusion projects
*300 times focus magnification, you can observe the core with naked eyes
*Can charge the mobile phone, can connect LED lighting
