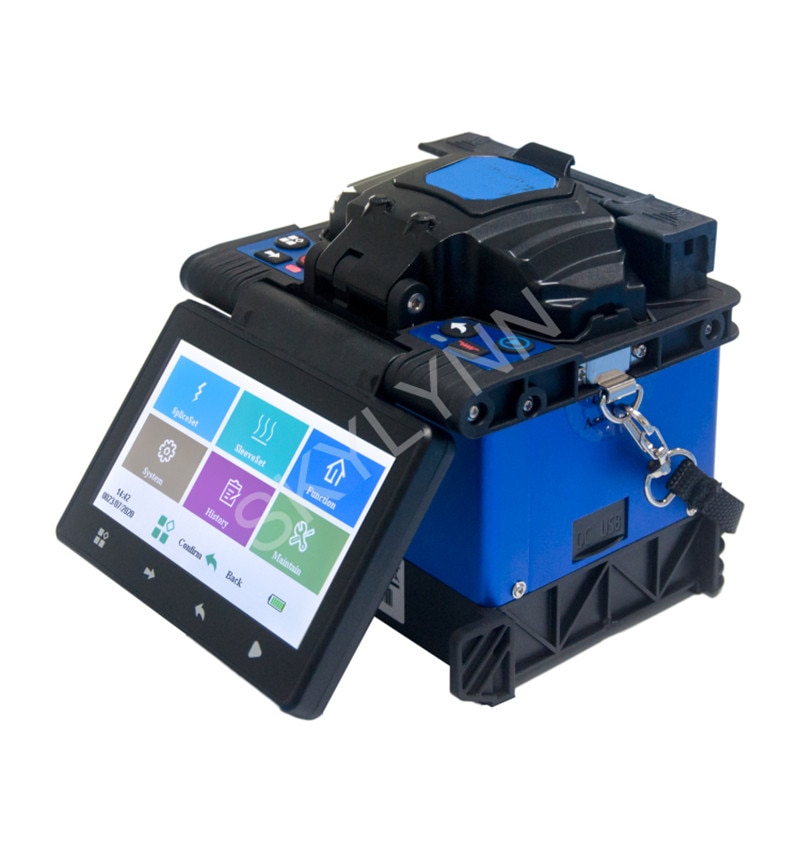

New Arrival Fiber Optic Splice Machine, FS-4108S 7s Fast Splicing Fiber Optic Fusion Splicer With 5 Inch Touch LCD Color Screen
Product description:
4108 type FTTH Dual heater Fusion Splicer, with high performance price ratio, is the main product for under promotion with smart appearance, reliable quality, dual heater splicer is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Applicable Fibers:SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
Average Splice Loss:0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss:≥60dB
Tension Test:2.0N(200gf)(Standard)
Splicing Program:50 groups
Protection Sleeve Length:20mm, 40mm, 60mm
Language:Chinese, English
Environmental Conditions:-10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply:AC adaptor: 100~240Vinputvoltage,50/60Hz; 12V, 5A outputvoltage(DC)DC adaptor: 12V voltage 8AH
Dimensions:155(W)*165(D)*150(H)
Features:
l5 inches high Resolution colorful touch screen LCD display
lAverage splice time: 10 second
lAverage tube-heat time: 30 second
lLithium battery: up to 180 times of continuous splice and heat
lSimultaneous X and Y views with 180 times magnification
lNew developed technology providing wind and dust resistance
lSplicing mode:Auto and amp; Manual and amp; Full-Automation
lUSB Port
lStoring 6,000 groups of splice results.
lMultipurpose optical fiber fixture (Such as: Rubber-insulated wire, fiber optic patch cord, bare fiber)
