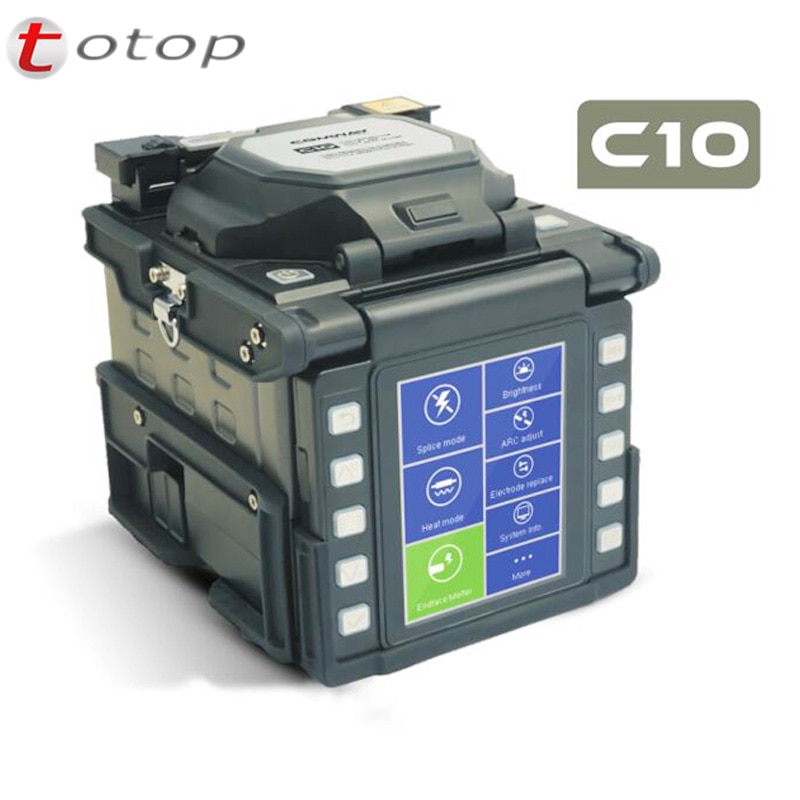

Multi-language USA Comway C10 optical fusion splicer 6 motors core alignment fiber endface melter 2 in 1 ARC Splicing machine
FEATURES:
Core to Core alignment system
Most suitable design for FTTx, LAN, backbone, factories, long-haul installations
1 sec. bootup time, 6 sec. splicing time
Enhanced Outdoor Color screen display
Long life battery with 7800mAh high capacity battery, more than 300 times splices and heats
Shock resistance: 95cm drop on 5 faces
Easy to change electrodes and fiber holder
Auto-start shrink sleeve oven feature
Easy maintenance – Easy electrode replacement /mirror free alignment System
Fast and easy to use, no need to study.
Easy Software upgrade via the internet
High speed USB Port. Support remote interactive maintenace.Using PC to connect to maintenance center
Splicer is compatible with the Seikoh Giken and Diamond Spliceon- connector (SOC)
CE, RoHS compliant
SPECIFICATION:
|
Size and amp; Weight |
D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh |
|
Fiber alignment |
6 motors core alignment |
|
Fiber type |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
|
Splice mode |
Single fiber |
|
Fiber diameter |
Cladding diameter 80~150µm, coating 100~1000µm |
|
Cleave length |
250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm |
|
Splicing programs |
Max. 100 |
|
Splicing cycle time |
6 sec. SM-SM Fast program, 12 sec. AUTO program |
|
Heating programs |
Max. 30 |
|
Heating cycle time |
Adjustable, 25 sec. typical |
|
Splice protector |
10 ~ 60mm |
|
Splice image capture |
Max. 30 |
|
Splice data storage |
Max. 3000 |
|
Splice loss |
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
|
Return loss |
and gt; and gt;60dB |
|
Loss estination |
Provided |
|
Operation condition |
Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s |
|
Storage condition |
Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C) |
|
Tension |
1.96~2.25N |
|
Fiber view |
Two cameras observation, 4.1 inch color screen |
|
Fiber magnification |
300x fo X or Y single axis view, 180x for both X and amp;Y dual axis view |
|
Port |
High speed USB, used for PC software connection and firmware upgrade |
|
Electrode life |
3500 arc discharges |
|
Power supply |
AC100-240V, 50/60Hz |
|
Battery module |
7800mAh High capacity battery, more than 300 times splicing and heating |
PACKING LIST:
|
1.Fusion Splicer C-10 |
2.Quick Reference Guid |
|
3.High Pression Cleaver CC-01 |
4.Stripper CS-01 |
|
5.Extra Electrade CE-02 |
6.High capacity bettary BAT-01 |
|
7.AC Adaptor ADC-01 |
8.Cooling Tray |
|
9.USB Cable USBC-01 |
10.DC Charging cable DCC-01 |
|
11.AC Adaptor Cable ACC-01 |
12.Hand Strap |
|
13.Shoulder strap |
14.Carry case CP-01 |
