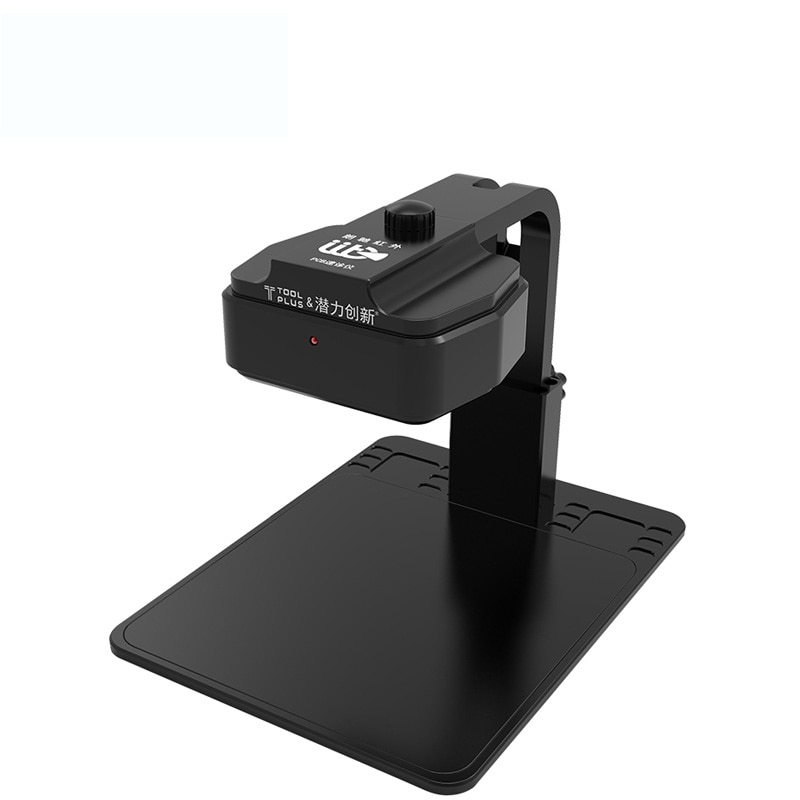

Infrared Thermal Imaging Analyzer Speed Diagnostic Cellphone PCB Motherboard Fault Problem Diagnostic Instrument Mobile Fix

Applications:

Infrared Thermal Imaging Analyzer for Speed Diagnostic Cell Phone PCB Circuit Board Fault Problem, Check PCB Component Troubleshooting and Find mobile phone Circuit Board (PCB) Fault Defects, Phone PCB Fault Infrared Thermal Imaging Thermal Image Analyzer for iPhone Samsung Xiaomi Huawei Vivo HTC All SmartPhones.

Features:

1. Detect the motherboard chip, resistor and capacitor running temperature by the powerful PC intelligent analysis software and intelligent algorithm;

2. Fastly Locate the capacitance of micro current leakage, short-circuit position;

3. Through the analysis of normal / abnormal motherboard comparison mode, quickly and accurately identify the problem chip, help phone fix technician troubleshooting motherboard, greatly improve the efficiency and accuracy of maintenance of the new generation of overhaul equipment

Specification:

1：Package include : 1 set PCB motherboard diagnostic tools

2：Packing Box: 1 paper box, 30*20*15cm, 3kg

3：100% brand new

4：1080p camera 19200 heat camere

5：Automatic, Tested before shipping

6：PCB motherboard diagnostic

7：AC 110V/220V

8. Resolution: 160×120

9.  Wavelength range: 7.5-13.5 μm

10.  Lens angle: 57 °x44°
