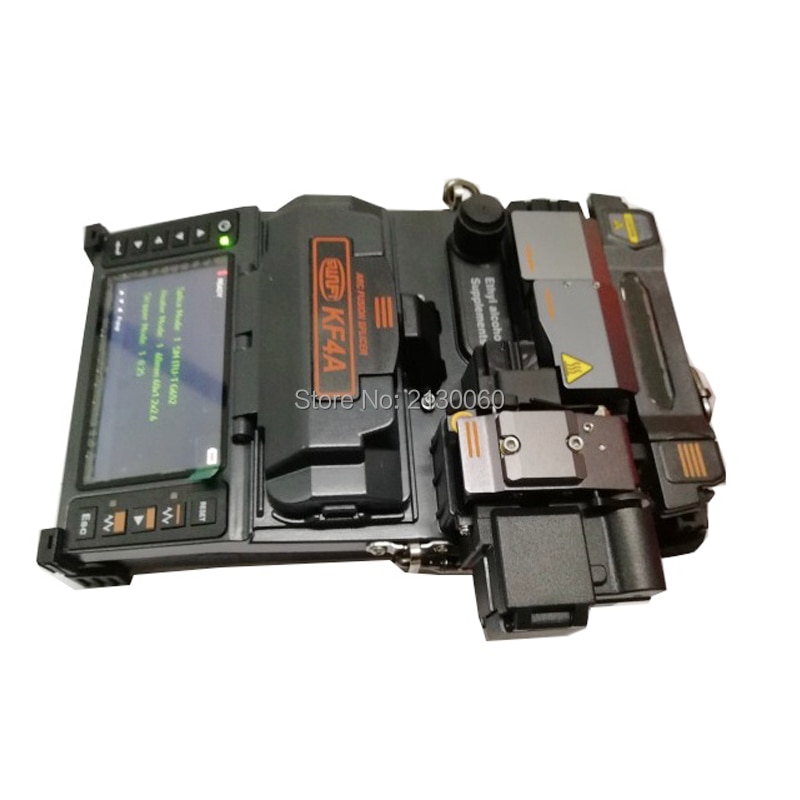

Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving.In addition, optional Optical Power Meter and V.F.L(Visual Fault Locator) is imbedded in the machine.
They allow users check the splice result immediately without additional tools. (ALLINONE+, KF4A+) The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector(SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors.(low quality, weak durability and high maintenance cost). Swift KF4A+fusion Splice-On-Connector gives our customer the best ROI

Swift Connector Assembly Sequence

Specification

Fiber alignment

IPAAS Active V-Groove Alignment

Applicable type of fibers

0.25mm, 0.9mm, 2.0mm, 3.0mm   Indoor cable

Fiber count

Single fiber

Applicable fiber dimensions

Cladding diameter : 125µm, Coating diameter : 150µm~3mm

Fiber setting and cleaved length

5mm to 16mm

Splicing modes

Splice mode: 300, Heater mode: 100

Typical Splice Loss

SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss

and gt; 60dB

Splicing time

Typical 7sec (with SM)

Splice loss estimate

Available

Sleeve heating time

Typical 13sec with IS-60 mode, IS-20 sleeve

Applicable protection sleeve

40mm, 60mm and Micro sleeve

Storage of splice result

The last 5000 results to be stored in the internal memory.

Tension test

1.96N to 2.25N

Operating condition

Altitude: 0~5000 m above sea level, Temperature: -10°C – +50°C, Humidity: 0~95%, Wind: 15 m/s, non-condensing, dust proof, water proof, shock proof

Storage condition

Temperature: -40°C -+80°C, Humidity: 0~95%

Dimension

132(W)x212(L)x73(H)mm

Weight

1.5kg(Including battery)

Viewing method and display

2AXIS Two CMOS cameras and 4.3-inch color LCD monitor

Fiber view and magnification

X/Y : 130X, Max : 260X

Power supply

DC Lithium polymer battery(DC 14.8V, 1650mAhx2), 100 ~ 240V AC Adapter

No. of splice cycles with battery

Typical 200 cycles

Electrode life

More than 3000 times

Terminals

USB
