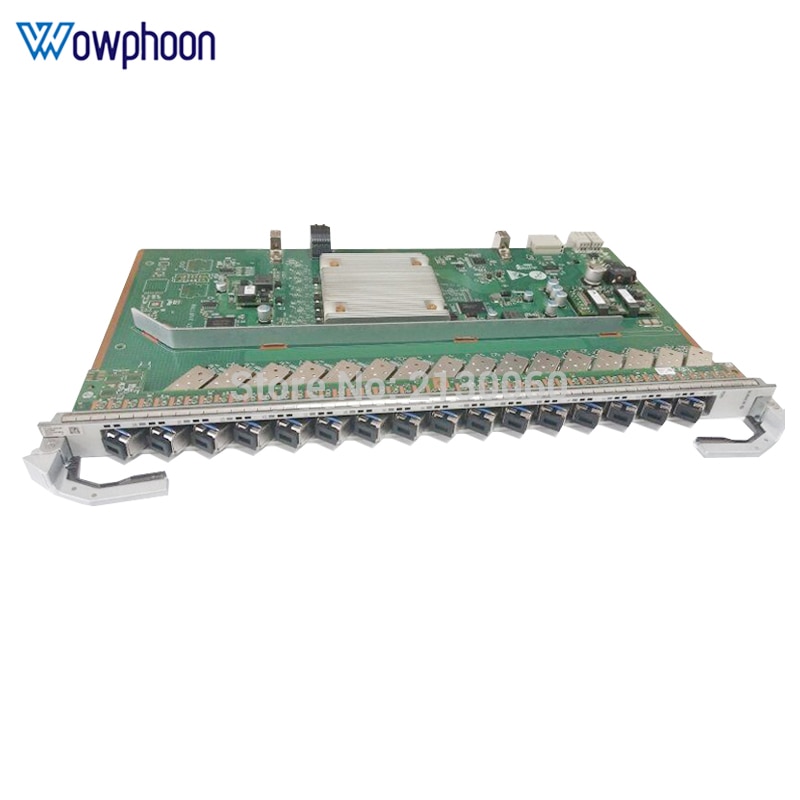

HUAWEI OLT control board of GPHF 16 ports GPON board GPHF for For 10GE MA5800  OLT with 16 SFP C++ modules

Huawei GPHF Product parameters:

Huawei GPHF Features and Specifications:
– Supports 16 GPON SFP interfaces
– Supports up to 1: 128 splitting ratio
– Support Class B + / C + / C ++ single fiber bi-directional optical module
– Support RSSI detection, optical module light control
– Support temperature query and high temperature alarm
– Support high temperature automatic shutdown protection
– Support up and down FEC
– Supports Type B / Type C protection
– Maximum transmission distance of 20KM
– Support rogue ONT detection
-GPON port supports the optical power budget
-CLASS B +: 28.5db
-CLASS C +: 32db
-CLASS C ++: 35db

Huawei GPHF power introduction:
Static power: 25W
Maximum power: 50W

Huawei GPHF works:
The basic principles of Huawei GPHF are as follows:
Control module to complete the software board loading, operation control, management and other functions.
The switching module implements the aggregation and forwarding of 16 GPON port signals.
The interface module implements the conversion between GPON optical signals and Ethernet packets.
The power supply module provides working power for each function module in the board.
The clock module provides the working clock for each function module in the board.

Applicable to Huawei MA5800 series OLT

Size: 55 * 40 * 10CM Weight: 2.5KG
