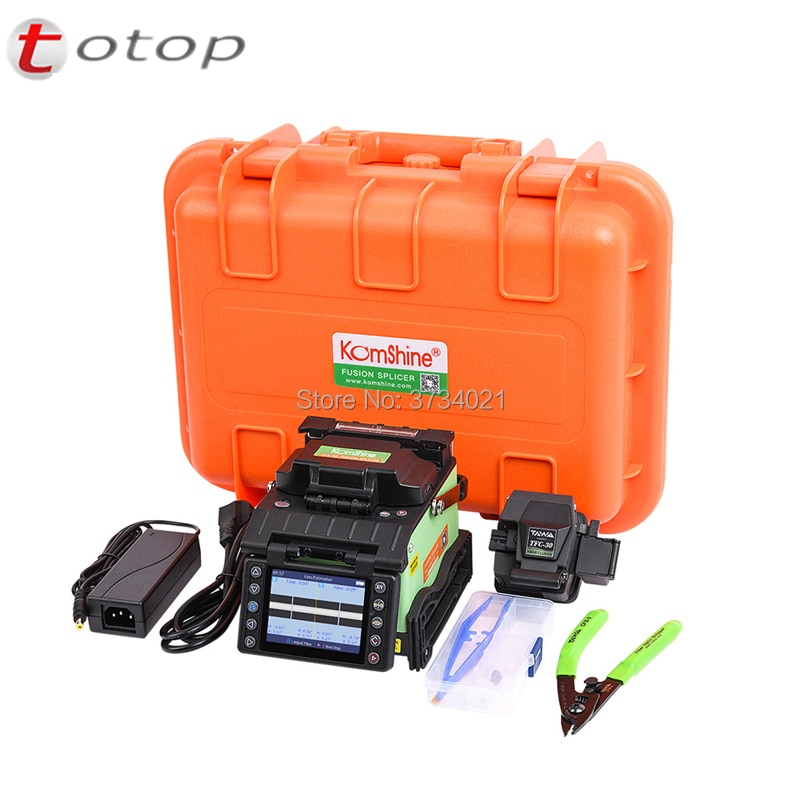

GX39 Komshine fiber splicing machine fusion splicer 9S Tube Typical Splicing Time Single fiber fusion splicer
Specification:
Komshine GX39 FTTH optical fiber fusion splicer is widely used in industries such as fiber-to-the-home, fiber-optic cable rapid termination, machine room jump fibers remediation and so on. Its newest all-in-one fixture design can splicing various optical fibers. The machine has automatic, manual, and semi-automatic functions to choose. At the same time, the machine small in size;light weight;anti-shock and drop resistance; the volume is 40% smaller than the traditional welding machine and the weight is only 1.77KG. 5200mAh large-capacity lithium battery, which can be connected and heated more than 350 times after being fully charged.
1.Fast-splicing: 9S Fast-heating: 20s
2.3000 Times Electrode Service life
3.Average Loss under 0.01dB
4.5200mAh Battery Capacity. Circular Welding 350 times
5.3.5Inch 800 x 480 HD LCD Screen
6.Real Time Discharge Correction. Stable Fiber Splicing
|
Type |
GX39 |
|
Fiber Type |
SM(G652 and amp;G657) 、 MM(G651)、DS (G653)、NZDS(G655) |
|
Actual Splicing Loss |
0.02dB（SM） 0.01dB（MM） 0.04dB(DS/NZDS) |
|
Control Technique |
Real-time control and correction of welding arc; Self-adaptation within working environment; Self-adaptive electrode oxidation |
|
Return Loss |
Better than 60dB |
|
Tube Typical Splicing Time |
9S(Standard SM) |
|
Tube Typical Heating Time |
20S(Heating time can be set. Heating temperature can be adjusted) |
|
Fiber Aligning Method |
Meticulous ; Core ; Clad ; Manual |
|
Fiber Diameter |
Clad Diameter is 80 ~ 150μm; Coating100 ~ 1000μm |
|
Cutting Length |
Coating layer＜250μm: 8 ~ 16 mm; Coating 250 ~ 1000μm: 16mm |
|
Heat-shrinkable Sleeve |
60 mm、40 mm and a series of thermal sleeves |
|
Tension Test |
Standard 2N(can choose) |
|
Fiber Clamp |
Suitable for Bare fiber, Tail fiber, Jumper wire, Leather wire |
|
Fiber Image Magnification |
300X(X-axis or Y-axis); 150X(X-axis and Y-axis) |
|
Graphical Display |
3.5Inch TFT Color LCD,can be flipped, convenient bidirectional operation |
|
External Port |
USB 2.0 interface, convenient for data download, using U disk upgrade software |
|
Splicing Program |
100(User Mode) ; 53(Factory Mode) |
|
Heating Program |
40 (User Mode) ; 11 (Factory Mode) |
|
Fusion Splicing Record |
Saved 10000 groups splicing results.100 sets of latest Images |
|
Internal battery |
Lithium battery 12.5V power supply (10.8V storage), independent charger, charging time ≤3.5,heating time no less than 350 times(Typical) |
|
Power Supply |
Power supply connector, external adapter (Import AC:AC100~240V,50/60Hz, 0~1.5A, Export DC:DC13.5v/4.8A) |
