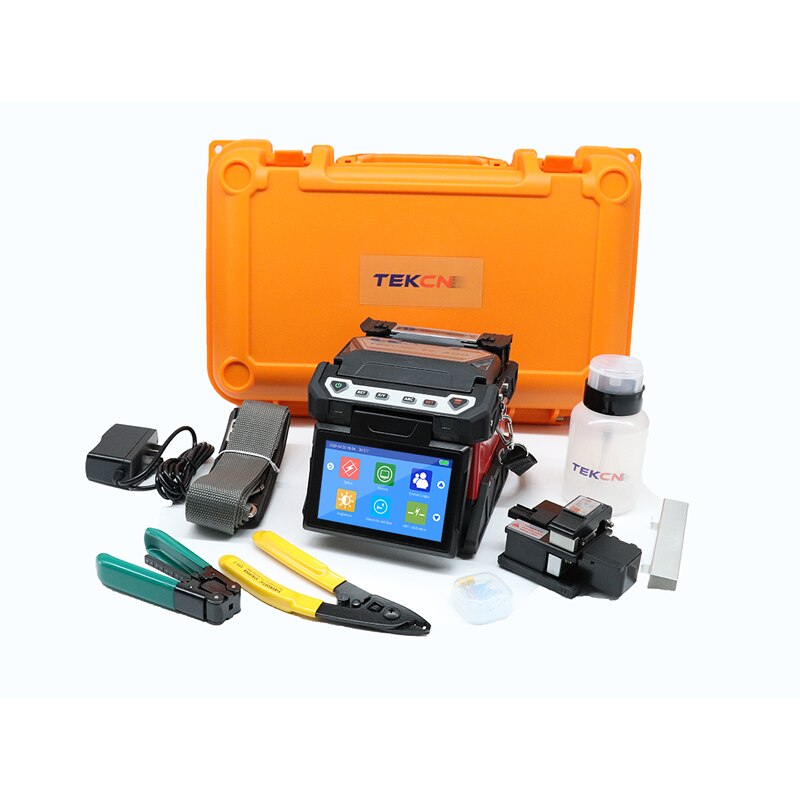

Fiber alilgnment

4  motors  PAS  alignment

Applicable fibers

Single / SMF (G.652/657),   MMF (G.651),   DSF (G.653),   NZDSF (G.655), BI(G.657)

Cladding dia. / Sheath dia.

80-150μm / 100-1000μm

Cleave length

5mm to 16mm with sheath clamp

Splice mode

Total 100 modes, supportsself-defined mode and parameter

Typical splice time

7 sec. SM FAST

Typical splice loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS) and 0.02dB(BI)

Return loss

and gt; and gt;60dB

Heating mode

Max. 20

Heating time

9 sec.

Applicable protection sleeve

10~60mm

Splice result storage

Last 20,000 splices

Splice image storage

Max.800

Viewing methods

2 axis CMOS camera with 4.73” HD color capacitive touchscreen

Magnification

Supports X / Y or both X and Y simultaneously, maximum up to 760X magnification

Wireless connectivity

GPS positioning and tracking system through inbuilt SIM card

Port

MicroSD and USB port for software upgrade / data management

Electrode life

Typical 5000 splices

Battery compacity

5600mAh battery, more than 240 times splicing and heating; Standard charging time 4 hours (up to 80% electric quantity in 2 hours)

Power supply

AC100-240V, 50/60Hz

Tension test

2N

Operating condition

Altitude : 0 to 5,000m above sea level, Wind : 15m/sec

Temperature : -10 to 50deg C,           Humidity : 0 to 95%RH

Storage condition

Humidity : 0 to 95%RH       Temperature : -10 to 80deg C(Battery: -10 to 40deg C)

Size / weight

133W x 144D x 133H (mm) / 1.5kg (1.8kg including battery)
