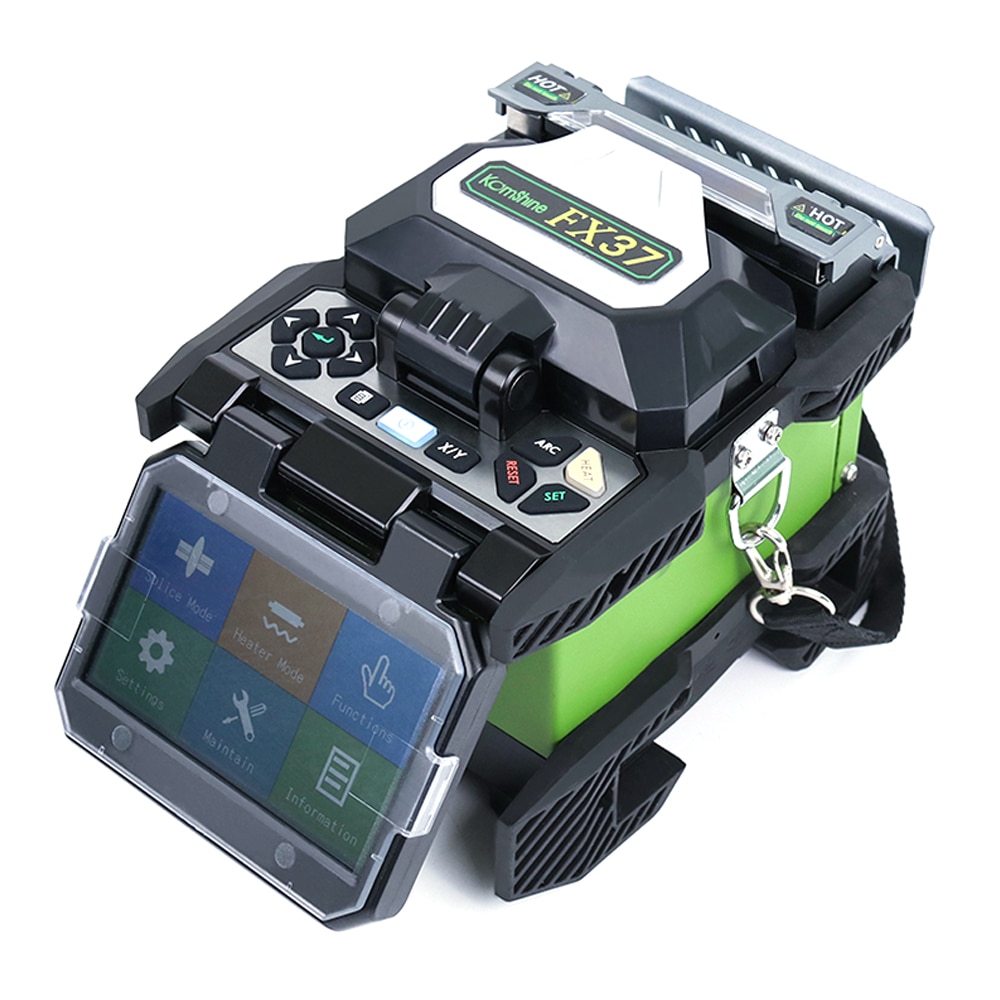

FTTH Fiber Optic fusion splicer KOMSHINE FX37 Optical Fiber welding machine

FTTH Fiber Optic fusion splicer KOMSHINE FX37 Optical Fiber welding machine



Features:

  • The advanced core to core fiber profile alignment system(PAS)
  • Friendly smart GUI
  • X/Y axes were displayed meanwhile,magnification up to 320 times
  • 7 sec.splice time ,18 sec.tube-heat time
  • Hig high-resolution true color 4.3 inch LCD display
  • Four display modes, fiber core visible
  • Store 10000 groups of splice results
  • Four display modes, fiber core visible
  • USB interface – for updates + result transfers
  • Built-in high capacity battery, support 330 times splicing and heating, to meet one days’ work
  • Long Electrode Lifetime,up to 4000 time



Specifications:



Applicable  fibers SM    MM    DS    NZDS
Fiber  diameter Cladding  diameter:80-150μm;  Coating  diameter:100-1000μm
Fiber  count Single
Fiber  cleaved  length 12-16mm  (Coating  diameter:250μm)
Actual  average  splice  loss 0.02dB(SM),  0.01dB(MM),  0.04dB(DS),  0.04dB(NZDS)
Typical  splicing  time Typical 7 sec  (standard  SM  fiber)
Return  loss and gt;60dB
Splicing  mode Auto  Calibrate  Normal  Special
Fiber  aligning  method Meticulous,Core,Clad,Manual
Splicing  program 53  (templet),  40(user)
Tube  heating  program 9  (templet),24(user)
Tube  typical  heating  time Typical 18 sec
Protection  sleeve  length 60mm,  40mm
Storage  of  splice  result                   10000  results,  20  parameter  per  result
Fiber  image  magnification 320X  (X  or  Y  view),170X    (X  and  Y  view)
Battery  capacity Typical 330  cycles  (splice/tube  heat  with  inner  Li-battery)
Monitor 4.3 inch  color  LCD  monitor
Tension  test 2N
Electrode  life 4000
Terminal USB
Power  supply AC  100-240V  with  AC  adapter    Inner  Li-battery  (6800mAH)    DC  13.5V
Operating  condition 0-5000m  above  sea  level,  -10-50OC    Max  wind  velocity  of  15m/s
Dimension 120mm(L)×130mm(W)×154mm(H)
Weight 1.59 Kg  excluding  battery,1.22Kg  including  battery




Standard Package:


Item Name Qty
1 KOMSHINE FX37 Fiber Fusion  Splicer 1PC
2 Fiber Cleaver 1PC
3 Tri-hole  Fiber  Coat  Stripper 1PC
4 Kimwipes  Lint-Wipers  280  wipers/box 1PC
5 Manual  CD 1PC
6 Fusion  Splice  Protection  Sleeves 100 100PCS
7 Internal  Battery 1PC
8 Charger,  AC  Power  Cord 1PC
9 Spare  Electrodes 1Pair
10 Cooling  Tray 1PC
11 Alcohol  Pump  Bottle 1PC
12 Blower  Brush 1PC
13 Carrying  Case 1PC
