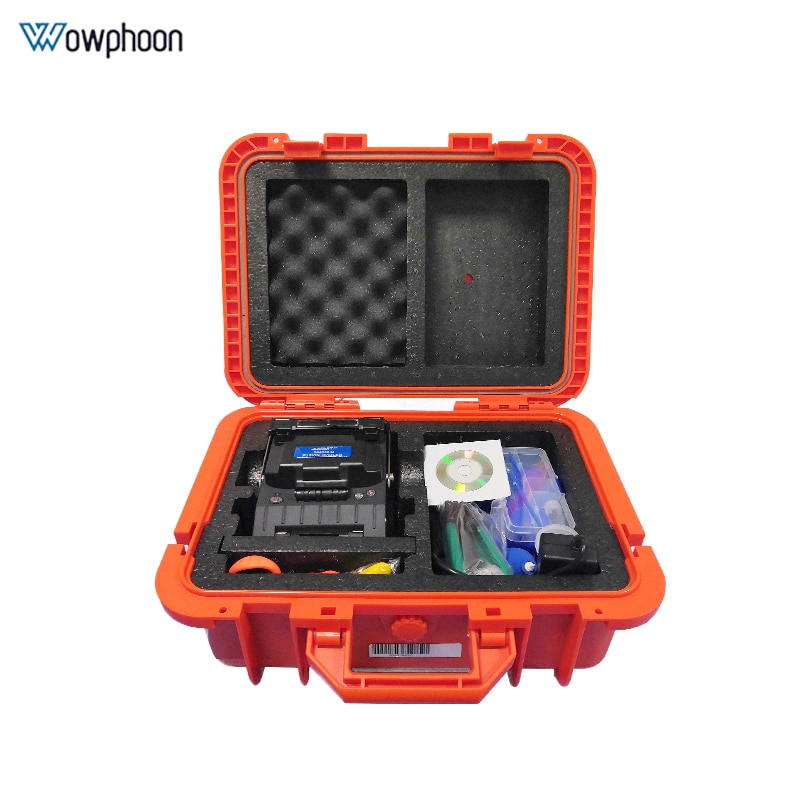

Free Shipping JW4108M FTTH Optical Fiber Fusion Splicer Welding Splicing Machine English Menu
Overview:
JW4108M is a special design for the installation, operation and maintenance of optical fiber specially designe a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.
Features:
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
9 sec splicing time and 30 sec heat time
300 X or Y view, 200 X and Y view
3.5 inch digital high-quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pig tail
Built in large capacity lithium battery of 200 times splicing and heating
Small size and light weight, 1.5KG including battery
Specification:
|
Model |
JW4108M FTTH Fusion Splicer |
|
Splicing Type |
SM, MM, DS, NZDS |
|
Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Return Loss |
and gt;60dB |
|
Splicing Mode |
Manual, Half Auto, Auto |
|
Fiber Alignment |
Core to Core Alignment by PAS technology |
|
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
|
Splicing Time |
≤9s |
|
Heat Time |
≤30s |
|
Cleaved Length |
8~16mm |
|
Fiber Image/ Magnification |
300/200 |
|
View Display |
3.5 inch digital high-quality LCD screen |
|
Tension Test |
Standard 2N (option) |
|
Heat Shrinkable Sleeve |
60mm, 40mm and serials heat Shrinkable Sleeve |
|
Battery Capacity |
200 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
|
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
|
Electrodes Life |
3000, easy to replace electrodes |
|
Power Source |
≤20W |
|
Interface |
USB Convenient data download and software update |
|
Construction Lighting |
Built in high brightness, wide range of lights, easy to operate at night |
|
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
|
Operating Condition |
0-5000m above sea level, Temperature: -10-60c, Humidity:0~95%RH (No dew) |
|
Weight (including battery) |
1.5 KG (including battery) |
|
Dimension (LxWxH) |
135mm(L)×158mm(W)×155mm(H) |
