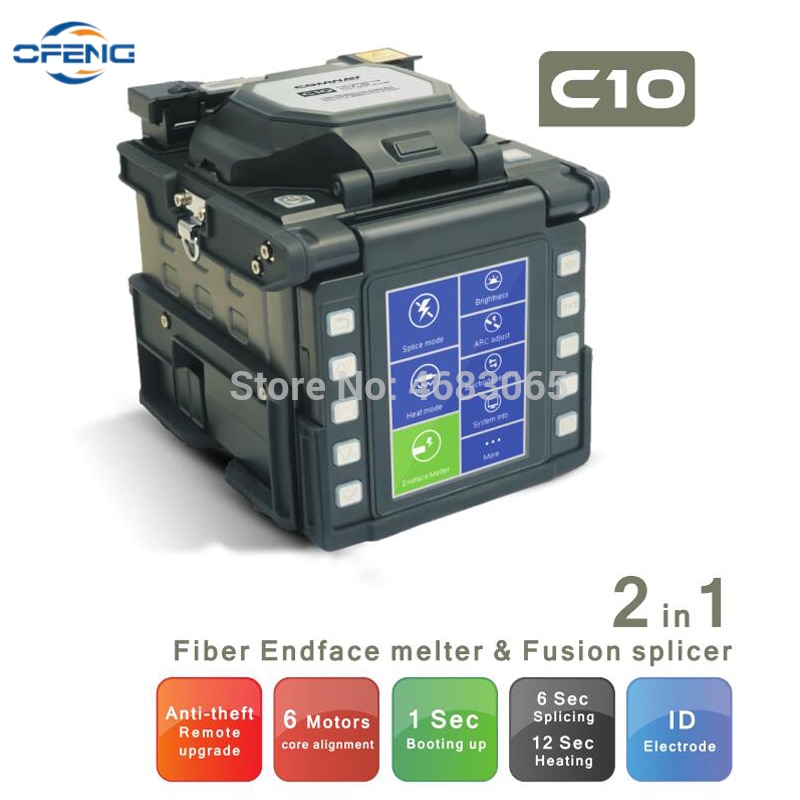

Free Shipping Comway C10 ARC Multi-language function Fiber Optical Fusion Splicer 6 motors Core to Core Alignment fusion splicer

Product Attribute

Size and amp; Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	and gt; and gt;60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X and amp;Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz
Battery module	7800mAh High capacity battery, more than 300 times splicing and heating

Features:

Most suitable design for fiber optic construction site

More than 300 times splicing and heating.

Core to Core alignment system

Fiber type Identify: AUTO splicing mode

Fast boot technology

High speed USB, maintenance via the internet

Splicing 6 sec, heating 30 sec

Resist dust, rain, wind and shock

Standard Configurations
