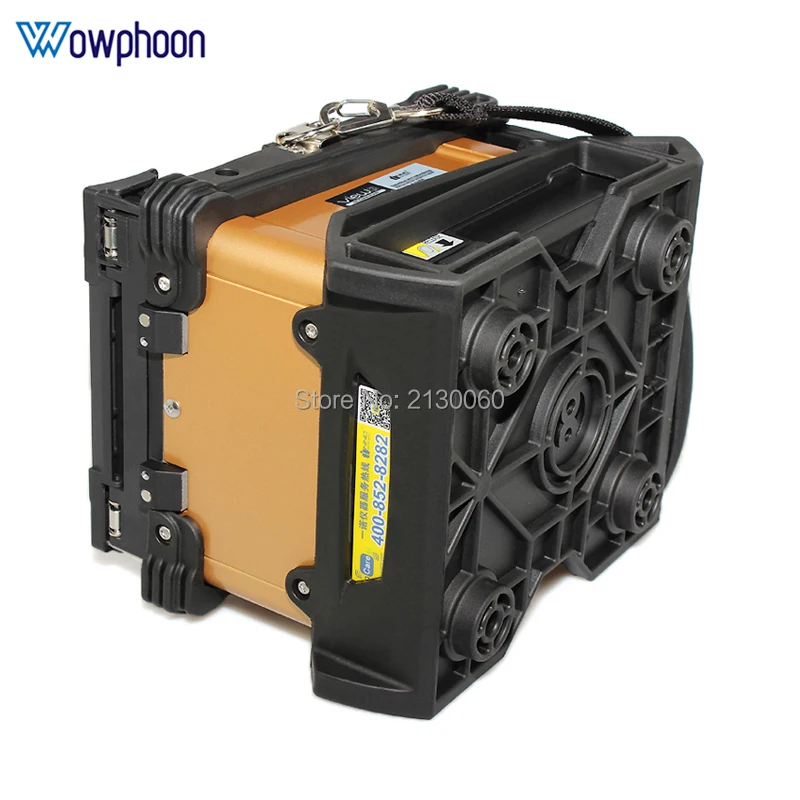

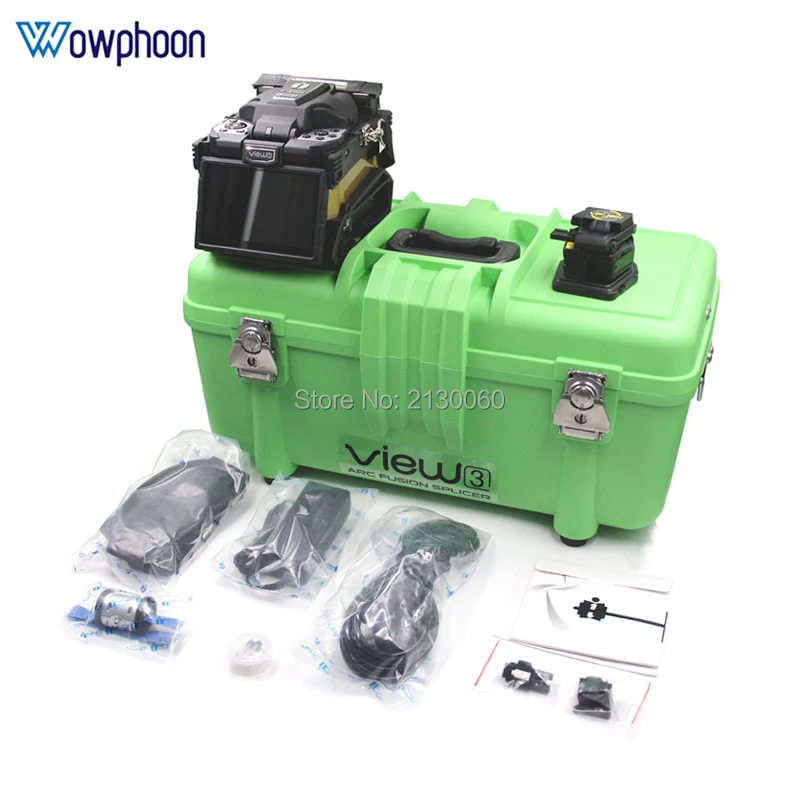

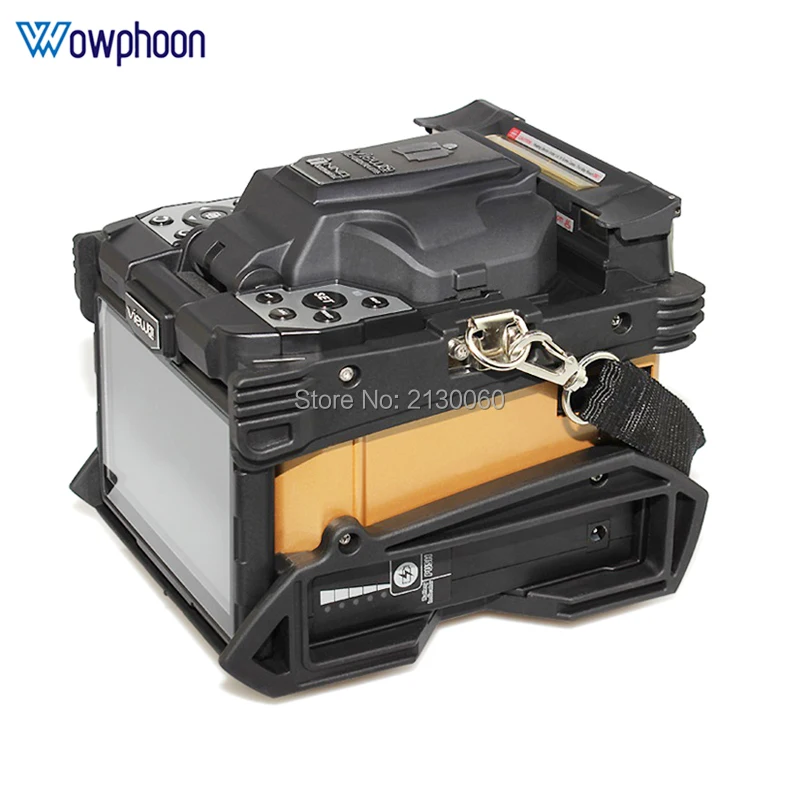

Fiber optic splicing machine INNO VIEW 3 optical fiber ARC fusion splicer

Descriptions:

View 3, active v-groove clad-alignment fusion splicer with the highest magnification, is one of the most dependable splicers on the market. View 3 has a user friendly, intuitive GUI (Graphical User Interface) with a 5 inch high-resolution color LCD touch screen that is easy to see and use. With the high-performance and cost-effectiveness, View 3 provides satisfactory working experience for its users in FTTx field. In addition, View 3 is compatible with being widely used fibers and cables, even for splice-on connector. It combines the functions of both splicing and heating for those cables, which are popular in FTTx: 250ìm fiber, 900ìm fiber, 3mm fiber, flat cable, and splice-on connector.

Features:

1. Active V-groove Clad Alignment Method

2. The World’s Highest Magnification and Resolution

3. 5″ Color High Resolution Touch Screen

4. 3 Bright LED for Dark Environment

5. Mirrorless Design for improved work efficiency

6. 5mm cleave length for 250µm/900µm/3 mm, Flat cable, and SOC

7. 35 Splicing Modes Illuminated Keypads

8. Harsh Weather Conditions Adaptability

Specifications:

Model	View 3
Dimension	143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
Weight	2.31KG (with battery) / 1.95KG (without battery)
Number of Fiber	Single
Applicable Fibers	SM(ITU-T G.652 and amp;G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor Cable
Cleaved Length	Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter	80~150 μm
Splicing Mode	Max 128 modes
Heating Mode	Max 32 modes
Typical Splice Loss	SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB
Typical Splice Loss	(ITU-T Standard)
Return Loss	and gt; and gt; 60 dB
Lighting	3 White LEDs
Splicing Time	Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss	Available
Protection Sleeve Length	20~60 mm
Heating Time	FP-03 typical heating time: 30 sec
Results Storage	The last 2000 results
Tension Test	1.96~2.25N
Operating Condition	Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -40~80°C
Display	90° bi-directional view, 5.0” Color High Resolution Display
Fiber View and amp; Magnification	X, Y, XY, X/Y : 520X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
No. of Splice / Heating with Battery	4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
Operating Methods	Button / Touch screen
Automatic Calibration	Automatic arc calibration by air pressure and temperature
Electrode Life	3500 arcs, can be extended by using an electrode grinder
Terminal	USB2.0 / MINI USB
