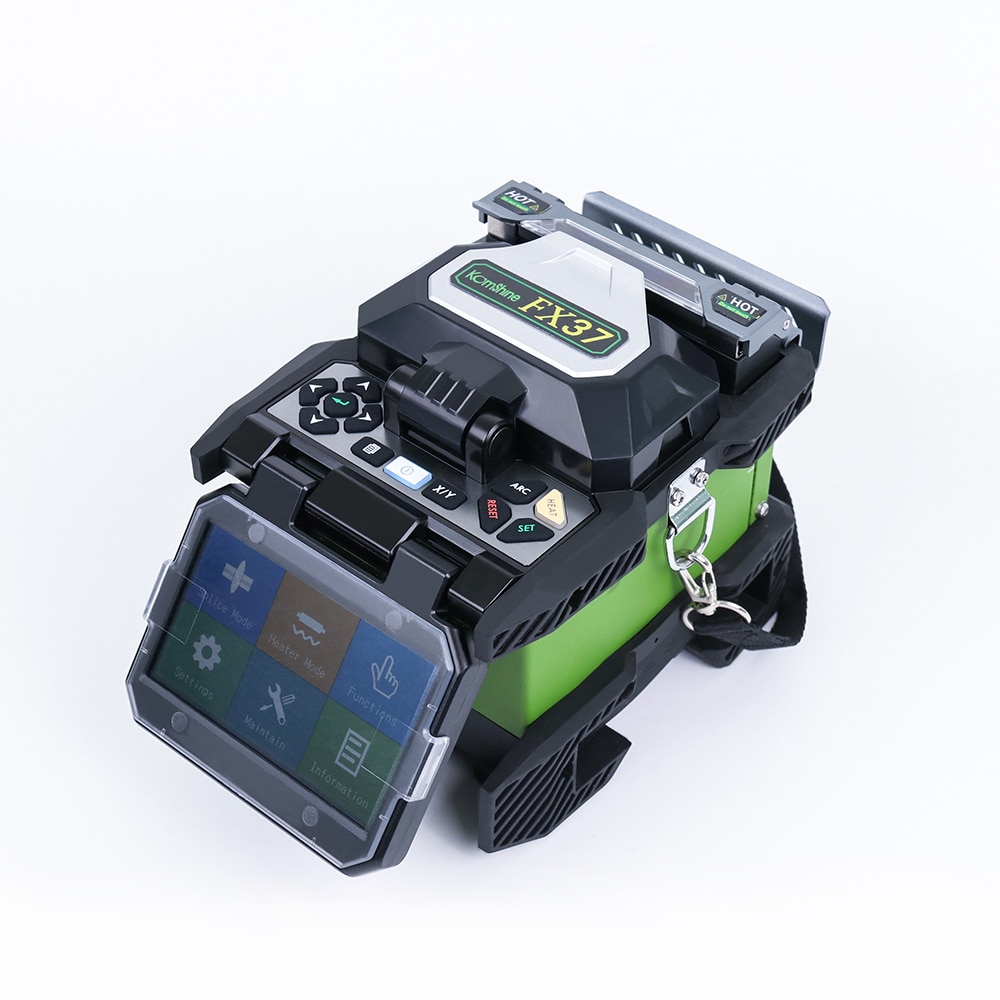

Komshine FX37 welding machine optic fiber fusion splicer same as Fujikura 70s fiber splicing machine
Main Charateristics
—4.3-inch high definition capacitive touch screen.
—320 timesimage magnification，5mm fusion splicing for fibers of ultra-short cutting length
—300 groups of fusion splicing modes，100 groups of heating modes USB and SD card interfaces，U-disk automatic software upgrade
—built-in modular lithium battery,supports 330 times of splicing and heating.
—7s fast fusion splicing，18s highly efficient heating. Precise fiber core alignment，ultra-low fiber fusion splicing consumption
—10000 groupsof fusion records，64 images storage Ceramic presser foot,ceramic V-block,all-in-one fixture
—Dual-direction splicing,automatic splicing,intelligent pyrocondensation
THE BASIC PARAMETERS
|
Subject |
Description |
|
Alignment |
IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) |
|
Applicable fibers |
SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655), EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 |
|
Compatible Fiber / Cable |
0.25mm/0.9mm/3.0mm/ Flat/Drop cable |
|
Fiber cleave length |
250 um(Coat) : 8 ~ 16mm, 900um : 16mm |
|
Typical splice loss |
SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB |
|
Return loss |
Less then -60dB |
|
SPLICE Time |
SPLICE : Typical7sec, Tube Heat : Typical18 secwith S-160(60mm) Tube |
|
Program |
SPLICE Mode : 100, Heat Mode : 50 |
|
Storage of splice result |
10000 results |
|
Operating altitude |
0 ~ 5000m above sea level |
|
Operating condition |
-10℃ to 50℃ , humidity : 95%, non-Condensing |
|
Storage condition |
-40℃ to 80℃ , 0 to 95% RH |
|
Protection |
Wind 15m/s , shock proof, water proof, dust proof |
|
SIZE, Weight |
1.59kg(host engine).0.37kg(battery) |
|
Terminal |
USB, External Power |
|
Power |
11.1V，6800mAh，typical value offusion splicing and thermal cycle is 330 times |
|
Additional power |
Cycle charging times reach 300-500，can be replaced by customers |
|
Noofsplice/HeatingwithBattery |
330cycle, lithium polymer batteries |
|
Electrode |
4,000 times splicing without exchange |
|
Languages |
English, Spanish, French, Portuguese |
|
Display |
4.3 inch touch screen |
|
Fiber view and magnification |
120mm(W)×130mm(H)×154mm(D),(without rubber anti-vibration pad) |
Strandard package
|
Item |
Name |
Qty |
|
1 |
KOMSHINE FX37 Fiber Fusion Splicer |
1PC |
|
2 |
Fiber Cleaver |
1PC |
|
3 |
Tri-hole Fiber Coat Stripper |
1PC |
|
4 |
Drop Cable Stripper |
1PC |
|
5 |
Kimwipes Lint-Wipers 280 wipers/box |
1PC |
|
6 |
Manual CD |
1PC |
|
7 |
Fusion Splice Protection Sleeves 100ea |
1PC |
|
8 |
Internal Battery |
1PC |
|
9 |
Charger, AC Power Cord |
1PC |
|
10 |
Spare Electrodes |
1Pair |
|
11 |
Cooling Tray |
1PC |
|
12 |
Alcohol Pump Bottle |
1PC |
|
13 |
Steel wire clamp |
1PC |
|
14 |
Needle nose pliers |
1PC |
|
15 |
Side cutting pliers |
1PC |
|
16 |
Carrying Case |
1PC |
