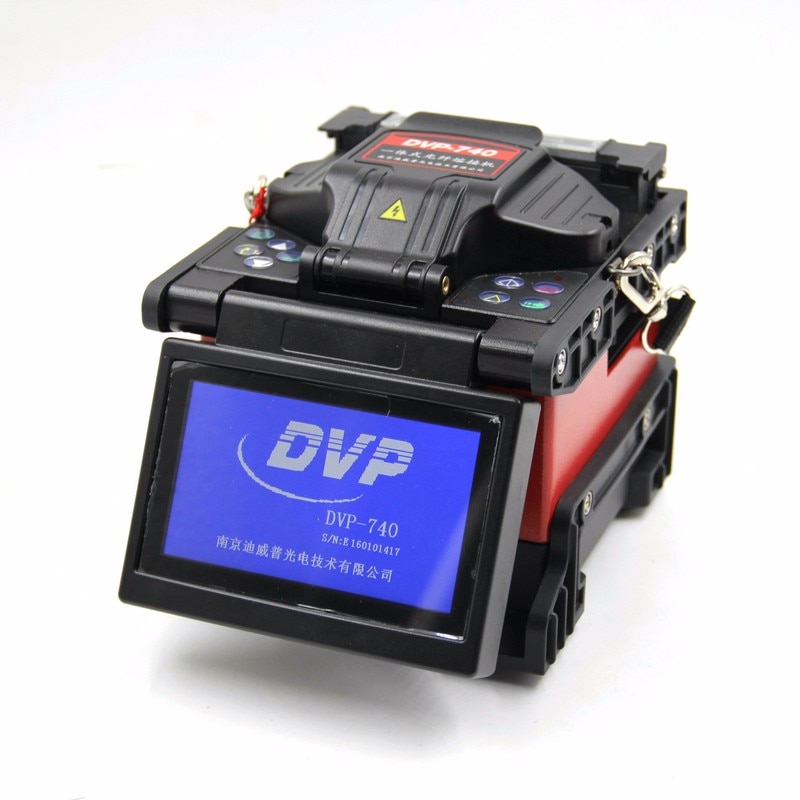

DVP-740 FTTH Optical Fiber ARC Fusion Splicer Original Multi-language FTTH Fiber Optic Splicing Machine Fusion Splicer

SALE 5% OFF

DVP-740 FTTH Optical Fiber ARC Fusion Splicer Original Multi-language FTTH Fiber Optic Splicing Machine Fusion Splicer





DVP Brand Optical Fusion Splicer, OTDR are widely used in the field of China Telecom , China Unicom, Mobile CATV, Power, Railway, Petro-chemical, Troop, Coal, Science and Research College and etc.

DVP is a professional hi-tech Enterprise which is registered as ISO9001, specializing in designing, manufacturing and selling optical and electrical equipment and test instruments.

DVP engineers are experts who have many years experience of development and test. They lay a solid foundation for advanced technology, prompt and effective after-sales service support. DVP series fusion splicers are CE, ROHS and Russia national system approved and developed by DVP whose intellectual property is also owned by our company. They have gained praise from the customers from home and abroad for its hi-tech, reliability, small size, light-weight, easy-handling.

DVP products are sold to Korea, Malaysia, India, Finland, UK, Germany, Australia, France and Canada, etc, which are also widely marketed in Broadcasting and amp; Television network.











  • Compact and amp; Light weight
  • Applied for Fibers, Cables and SOC (splice- on connector)
  • Integrated Holder Design
  • Fully Automatic, Semi-automatic and Manual Operation
  • Shockproof, Drop resistance
  • Power saving Function
  • 4.3 inch Color LCD monitor
  • USB and amp;DC interface





Applicable fibers

SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.

Fiber cleaved length

8-22mm

Average splice loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Returnloss

60dB

Tensiontest

2.0N(200gf)(Standard)

Protection sleeve length

20mm . 40mm. 60mm

Splice Program

5 groups of preset programs, 75 group of manual setting

Language

English, Chinese, Russian, Spanish, Portuguese.

Environment conditions

25~+50C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)

Alignment

CoreAlignment(PAS Technology)

Storage environment

-40~ +80C (temperature) , 0~95%RH (humidity)

Power supply AC adaptor

85~260V input voltage

Internal battery

12V, 6Ah, up to 120 times of continuous splice and heat

Dimensions/Weight 142(D)×122(W)×138(H)mm/1.95kg







  • Main body(DVP-740)
  • Fiber Cleaver
  • Drop Cable Stripper
  • Connector holder
  • Heater Device for Connector
  • Spare Electrodes
  • Charger
  • Cooling Tray
  • Manual Instruction
  • Carry Box/ Bag.

DVP-740 FTTH Optical Fiber ARC Fusion Splicer Original Multi-language FTTH Fiber Optic Splicing Machine Fusion Splicer
