Feature

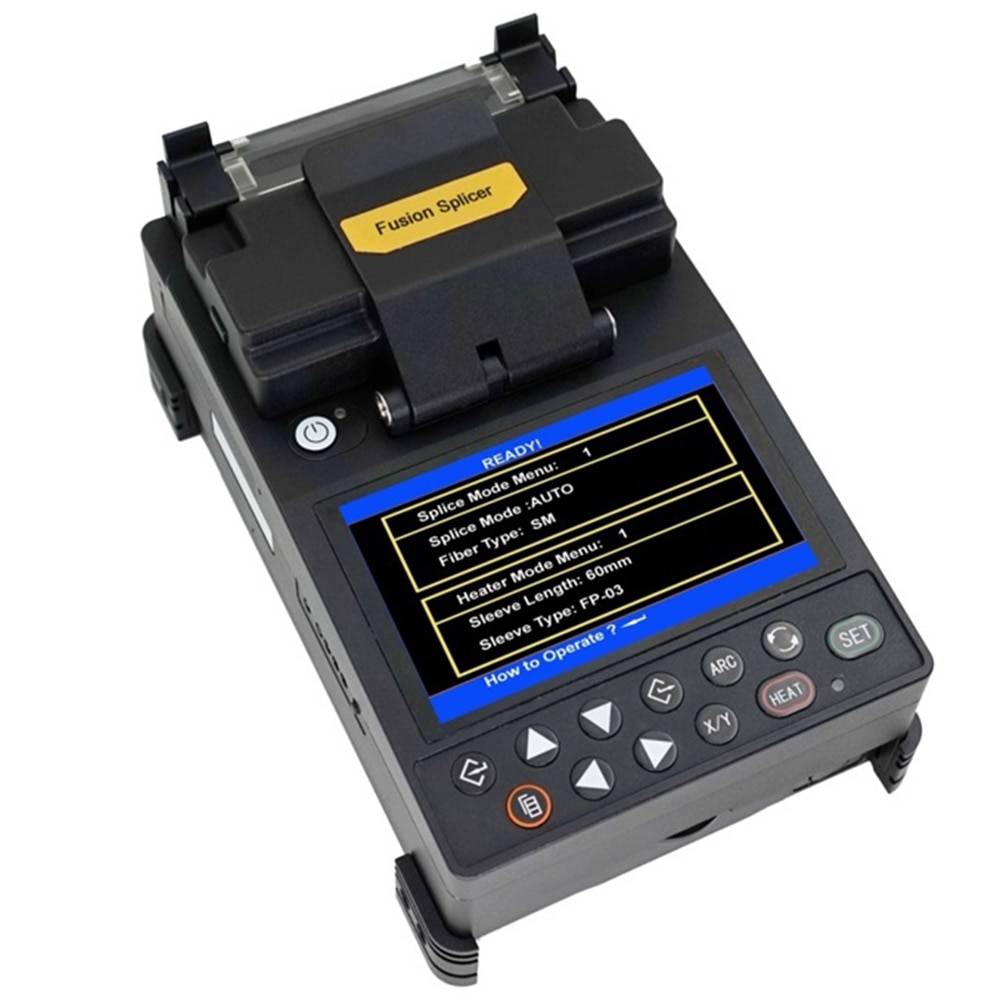

GY115 Hand-held Fusion Splicer, with high performance price ratio, is the main product of
GUYANG CO., LIMITED . With smart appearance, reliable quality, GY115 is a special design for the
installation, operation and maintenance of optical fiber specially design a precision, durable,
convenient optical fiber construction instrument. Widely used in the construction, inspection,
maintenance of fiber cable.
|
Model |
GY115 Handheld Fusion Splicer |
|
Splicing Type |
SM, MM, DS, NZDS |
|
Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
|
Return Loss |
and gt;60dB |
|
Splicing Mode |
Manual, Half Auto, Auto |
|
Fiber Alignment |
Core to Core Alignment by PAS technology |
|
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
|
Splicing Time |
≤9s |
|
Heat Time |
≤30s AUTO HEAT |
|
Cleaved Length |
8~16mm |
|
Fiber Image/ Magnification |
300/150 |
|
View Display |
4.3 inch digital high quality LCD screen |
|
Tension Test |
Standard 2N (option) |
|
Heat Shrinkable Sleeve |
60mm, 40mm and serials heat Shrinkable Sleeve |
|
Battery Capacity |
300 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
|
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 150 X and Y view
4.3 inch digital high quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pigtail
Built in large capacity lithium battery of 200 times splicing and heating
Small size and light weight, 1.6KG including battery
