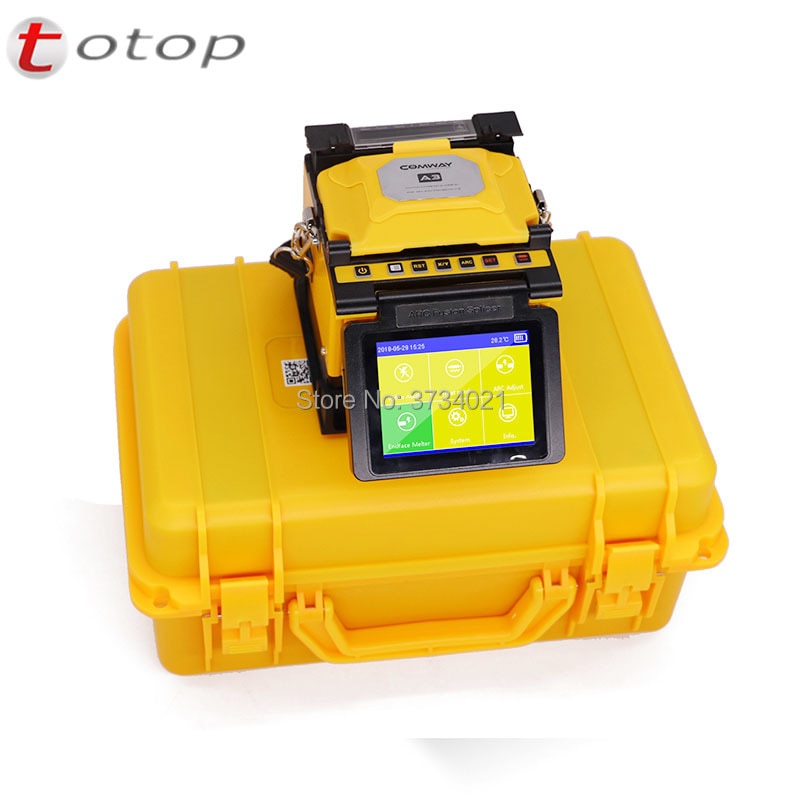

DHL Free Shipping COMWAY A3 High Precision PAS Alignment FTTH FTTX fusion splicer ARC Welding Machine Fusionadora de fusion
Features:
High precision PAS alignment system
*Splicing time 6 sec., heating time 30 sec.
*Fast boot technology
*More than 240 times splicing and heating
*Resist dust, rain, wind, and shock
*Fiber type identify, AUTO splicing mode
*Easy to change electrodes and fiber holder
*High speed USB, maintenance via the Internet
Specifications:
| Size and amp; Weight | D136×W135×H136(mm),1.5kg (1.8kg with battery) |
| Fiber alignment | High precision PAS Alignment |
| Fiber type |
SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657) |
| Splice mode | Single fiber |
| Fiber diameter | Cladding diameter 80~150um,coating 100~1000um |
| Cleave length |
250um cladding diameter 8~16mm,over 250um cladding diameter 16mm |
| Splicing programs | Max.100 |
| Splicing time |
6 sec. [SM Fast] program, 15 sec. [SM G652] program |
| Heating programs | Max.30 |
| Heating time | Typical 15 sec.(Adjustable) |
| Splice protector |
10~60mm |
| Splice image capture | Max.300 |
| Splice data storagge | Max.20000 |
| Splice loss |
SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB;BI:0.02dB |
| Return loss | and gt; and gt;60dB |
| Fiber view |
Two 300x cameras observation,4.1 inch high-light color screen |
| Operation condition |
Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50℃,Wind velocity up to 15m/s |
| Storage condition | Humidity 0~95%, Temperature -40~+80℃,(Battery -20~+40℃) |
| Fiber magnification | 300x for X or Y single axis view,150x for both X and amp; Y dual axis view |
| Battery parameters | 4000mAh High capacity battery,more than 240 times splicing and heating |
| Port |
High speed USB |
| Electrodes life |
5000 arc discharges |
| Power supply | AC 100-240V,50/60Hz |
Standard accessories:
Fusion Splicer Comway A3 — 1 pc.
User Guide — 1 pc.
Stripper CFS-2 — 1 pc.
Drop Cable Stripper — 1 pc.
High-precision Cleaver — 1 pc.
Carrying Case — 1 pc.
High-capacity Battery BAT-05 — 1 pc.
AC adapter ADC-05 — 1 pc.
Extra Electrodes — 1 set
Cooling Tray — 1 pc.
AC Adapter Cable ACC-01 — 1 pc.
Hand Strap — 1 pc.
Alcohol Bottle — 1 pc.
