Advantages:
1. Fiber Optic Power Meter KPM-22E for free
2. 5.0 Color LCD Monitor
3. Splice 0.25mm/0.9mm/3.0mm/Plat
4. Average Splicing Loss: 0.02dB
5. Shake Proof. Dust Proof and Water Proof
6. Up to 200 times of continous splices and heat
7. HD CMOS sensor and HD aligner for duble seperate optical fibers
8. Attached Night Light
9. Ideal for both Indoor and Outdoor
10. Electrodes Life: 4000 times splicing
11. Take only 9 secs for splicing; 30 secs for heating

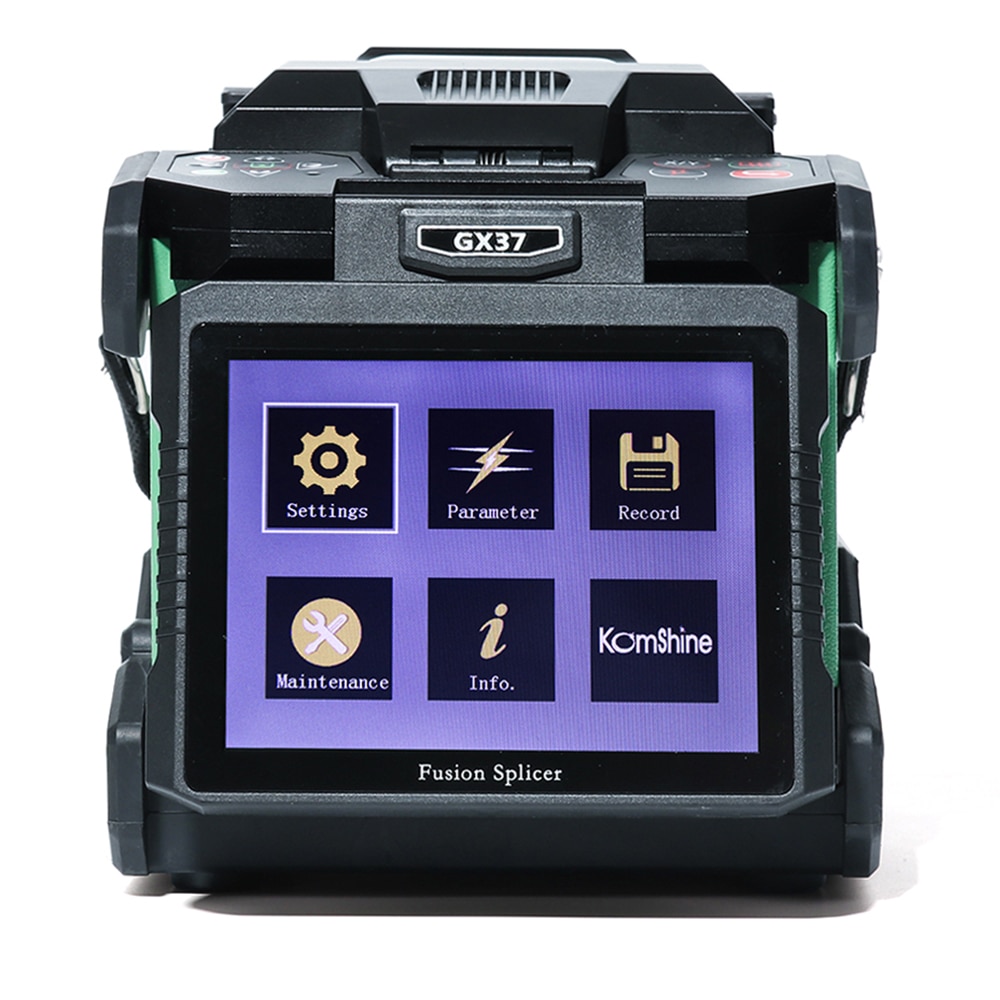

GX37 combines the functions of both splicing and heating for those cables which are popular in FTTX : 250μm fiber,900μm fber, flat cable, fber jumper. This splicer is the smallest, lightest and fastest among all the existing core alignment splicers . Performs 200 cycles of fusion splicing and sleeve heating with the standard battery . Reliability and Durability: Anti-Shock, Waterproof, Dustproof
English,Italian,Spanish,Franch,Português,Русский ,Bahasa

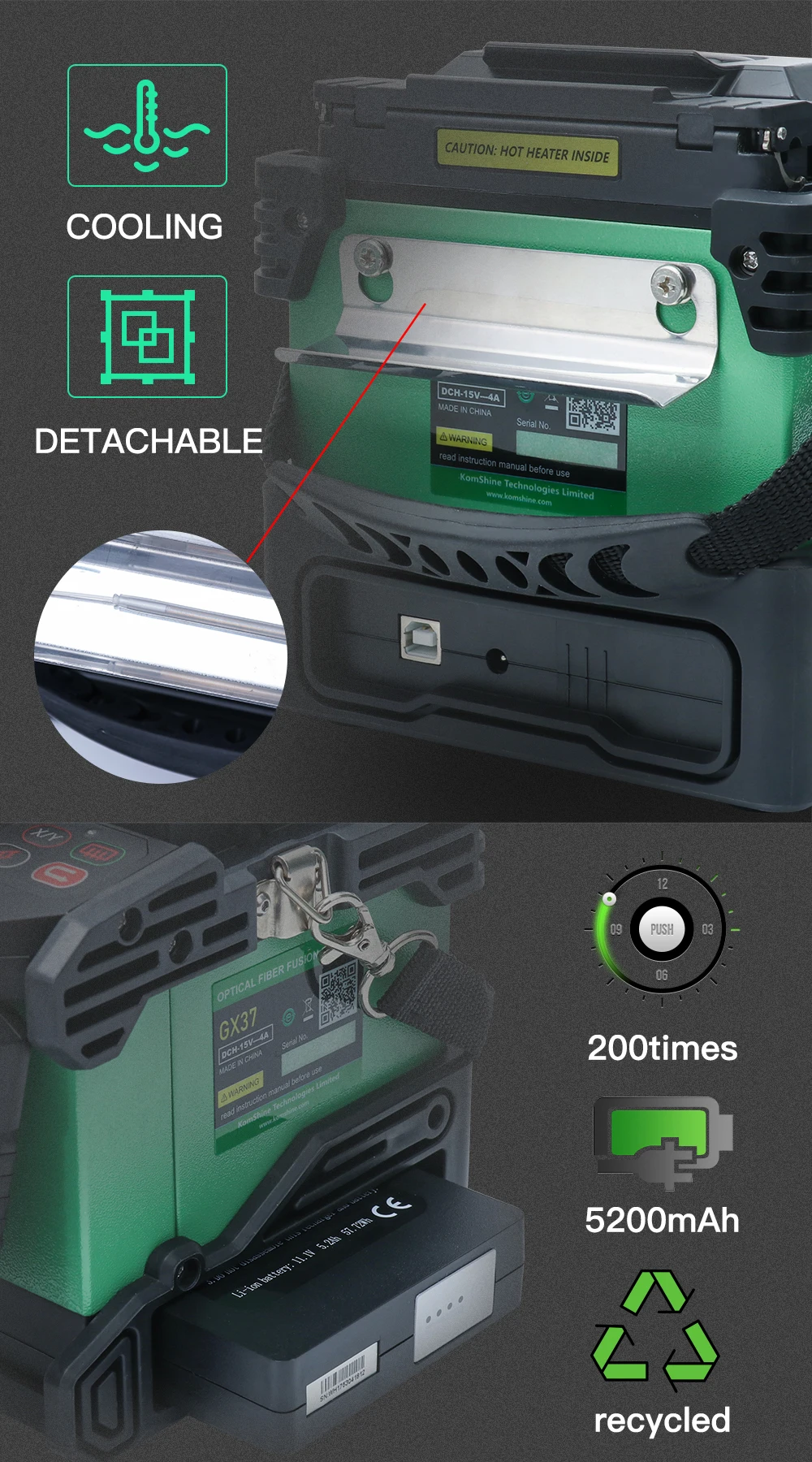

Tech1: 5200mAH high capacity replaceable battery to extend your productivity
Tech2: 6 Motors 3 Axle alignment make lower loss

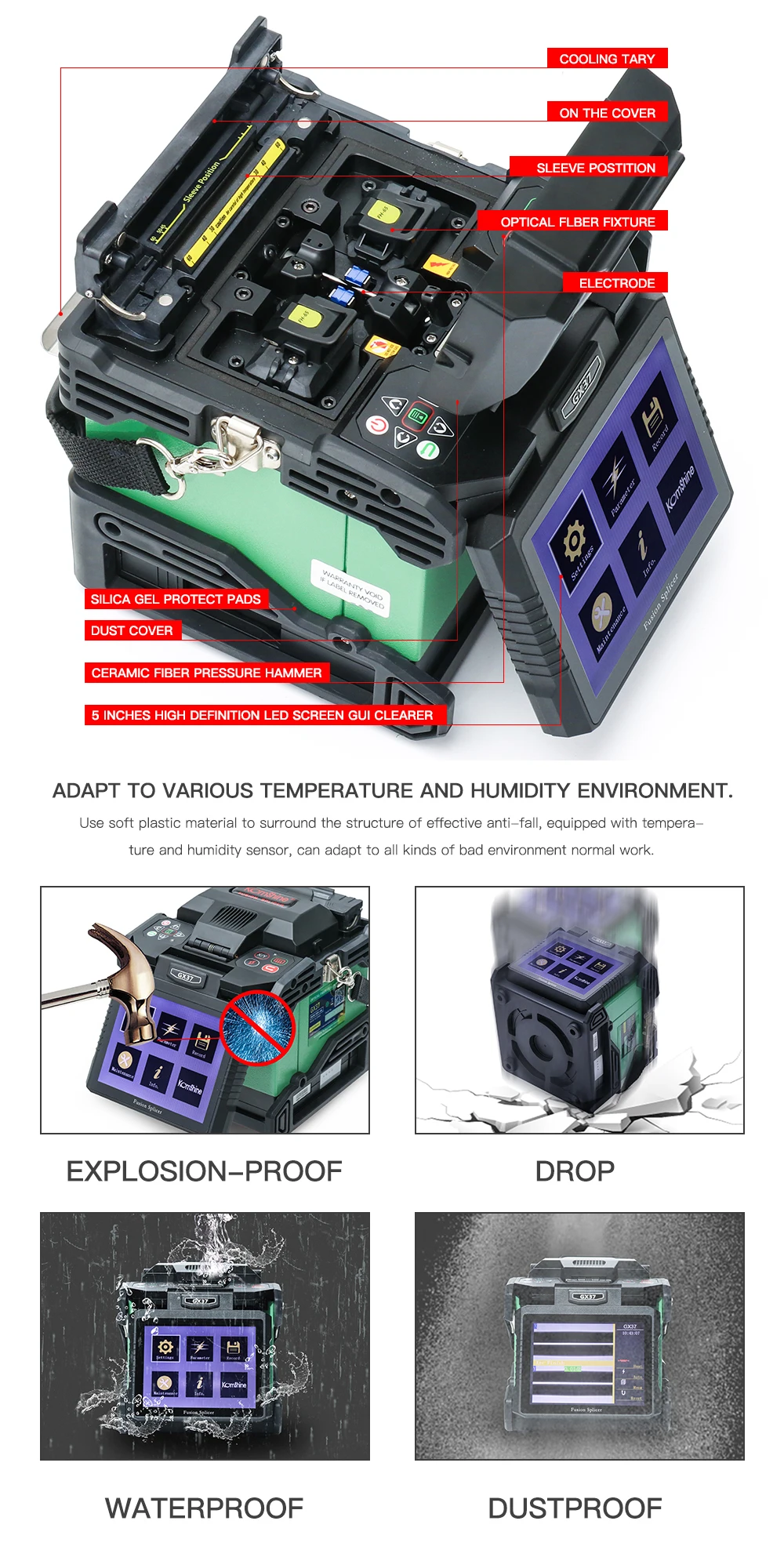

Tech3: Reliability and Durability: Anti-Shock, Waterproof, Dustproof
Specifications:
| Alignment | IPAS Core to Core Alignment (Image Pattern Analysis Alignment System) |
| Applicable fibers | SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655), EDFA, EI980, Splicing available with different type fiber(SM/MM), ITU-T G.657 |
| Compatible Fiber / Cable | 0.25mm/0.9mm/3.0mm/ Flat/Drop cable |
| Fiber cleave length | 250μ(Coat):8 ~ 16mm, 900μ:16mm |
| Typical splice loss | SMF : 0.02dB, MMF : 0.01dB, DSF : 0.04dB, NZDSF : 0.04dB |
| Return loss | Less then -60dB |
| SPLICE Time | SPLICE : Typical 9sec, Tube Heat : Typical 30sec with S-160(60mm) Tube |
| Program | SPLICE Mode : 100, Heat Mode : 50 |
| Storage of splice result | 4,000 results |
| Operating altitude | 0 ~ 5000m above sea level |
| Operating condition | -10Cto 50C, humidity:95%, non-Condensing |
| Storage condition | -40C to 80C , 0 to 95% RH |
| Protection | Wind 15m/s,shock proof,water proof,dust proof |

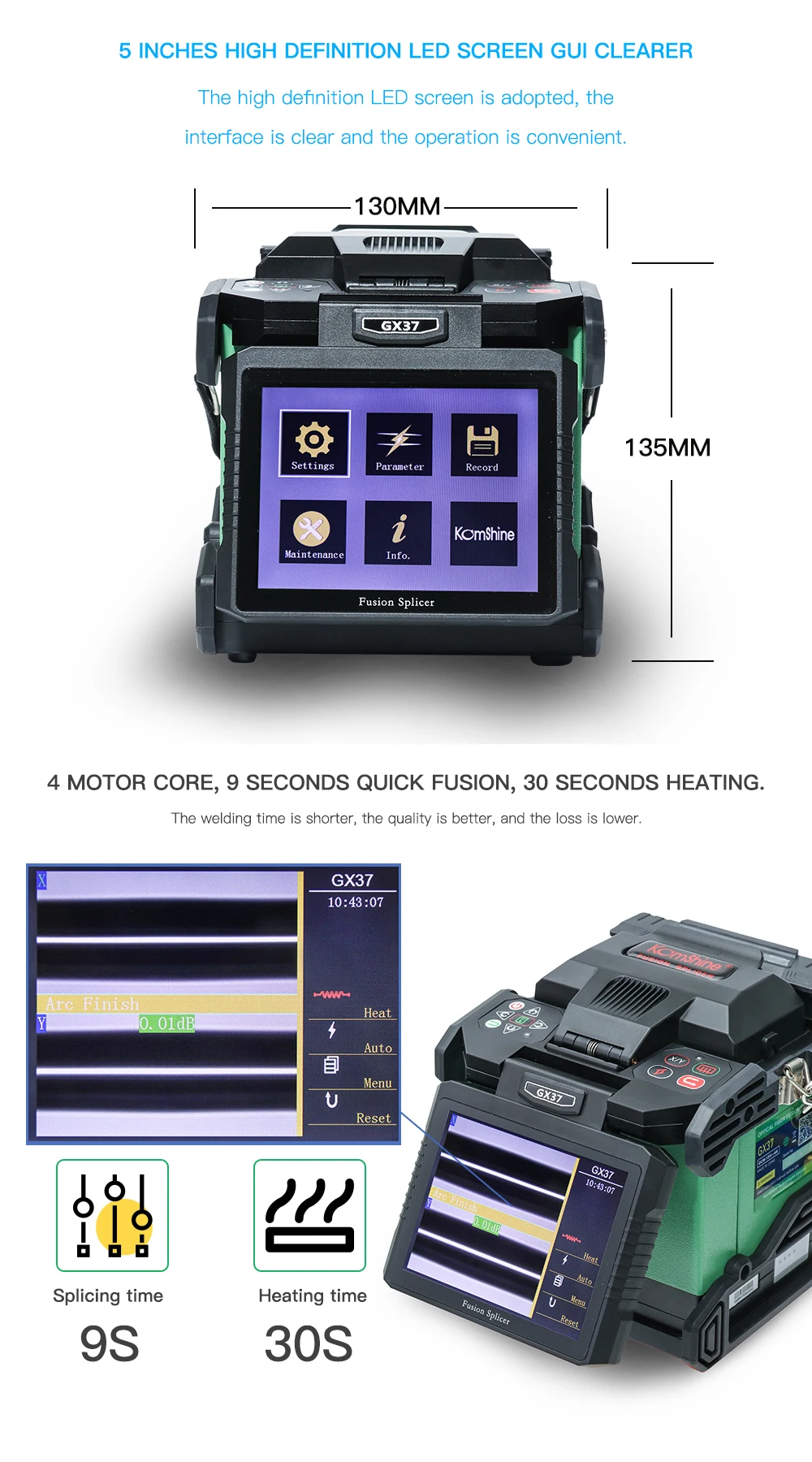

| SIZE, Weight | 130W*130L*135H(include Monitor),2.2Kg(Exclude Battery) |
| Terminal | USB, External Power |
| Power | DC 14.8V Battery (7800mAh), 100 ~ 240V AC Adapter |
| Additional power | DC 12V automobile power outlet available |
| No of splice/Heating with Battery | 200cycle, lithium polymer batteries |
| Electrode | 4,000 times splicing without exchange |
| Mechanical proof test | 2N / 4.4N (OPTION) |
| Display | Two CMOS cameras and 5.0 color LCD monitor |
| Fiber view and magnification | X/Y 300X, 170X |
