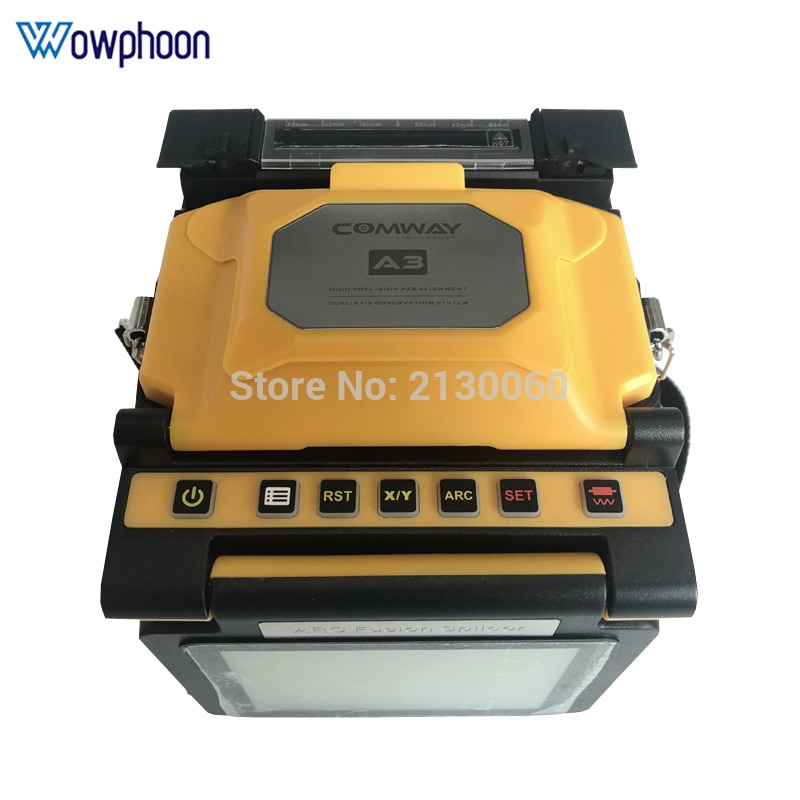

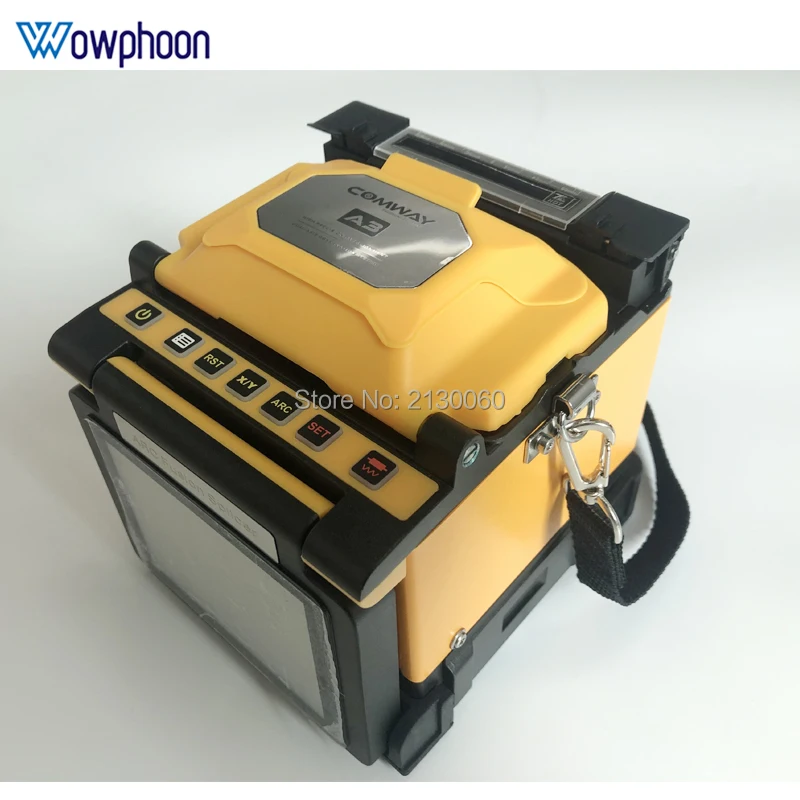

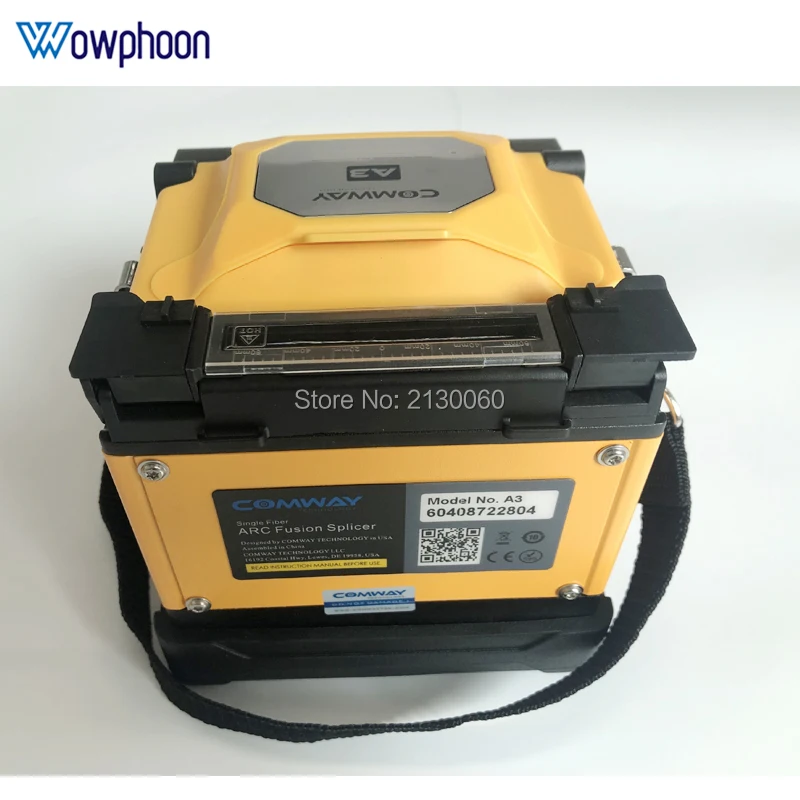

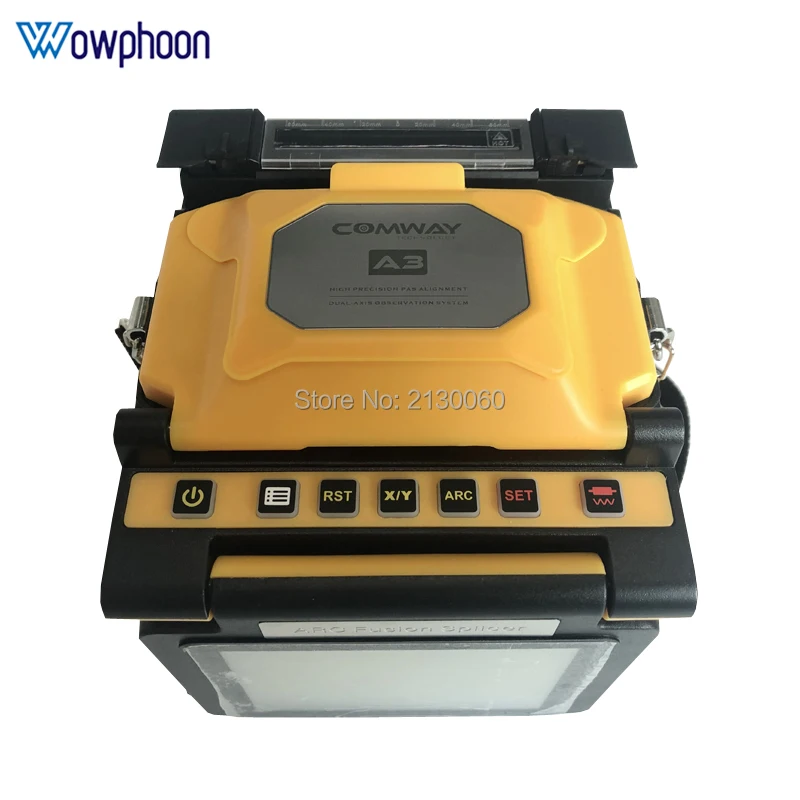

COMWAY A3 FUSION SPLICER high precision PAS alignment system splicer fiber optic fusion Splicing time 5 sec splicing machine

COMWAY A3 FUSION SPLICER high precision PAS alignment system splicer fiber optic fusion Splicing time 5 sec splicing machine



COMWAY A3 FUSION SPLICER high precision PAS alignment system splicer fiber optic fusion Splicing time 5 sec splicing machine



Features:

High precision PAS  alignment system

*Splicing time 5 sec., heating time 15  sec.

*Fast boot technology

*More than 240 times splicing and heating

*Resist dust, rain, wind, and shock

*Fiber type identify, AUTO splicing mode

*Easy to change electrodes and fiber holder





Specification:



Size and amp; Weight D136×W135×H136(mm),1.5kg (1.8kg with battery)
Fiber alignment High precision PAS Alignment
Fiber type

SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)

Splice mode Single fiber
Fiber diameter Cladding diameter 80~150um,coating 100~1000um
Cleave length

250um cladding diameter 8~16mm,over 250um cladding diameter 16mm

Splicing programs Max.100
Splicing time

6 sec. [SM Fast] program, 15 sec. [SM G652] program

Heating programs Max.30
Heating time Typical 15 sec.(Adjustable)
Splice protector

10~60mm

Splice image capture Max.300
Splice data storagge Max.20000
Splice loss

SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB;BI:0.02dB

Return loss and gt; and gt;60dB
Fiber view

Two 300x cameras observation,4.1 inch high-light color screen

Operation condition

Altitude 0~5000m,Humidity 0~95%,Temperature -20~+50℃,Wind velocity up to 15m/s

Storage condition Humidity 0~95%, Temperature -40~+80℃,(Battery -20~+40℃)
Fiber magnification 300x for X or Y single axis view,150x for both X and amp; Y dual axis view
Battery parameters 4000mAh High capacity battery,more than 240 times splicing and heating
Port

High speed USB

Electrodes life

5000 arc discharges

Power supply AC 100-240V,50/60Hz

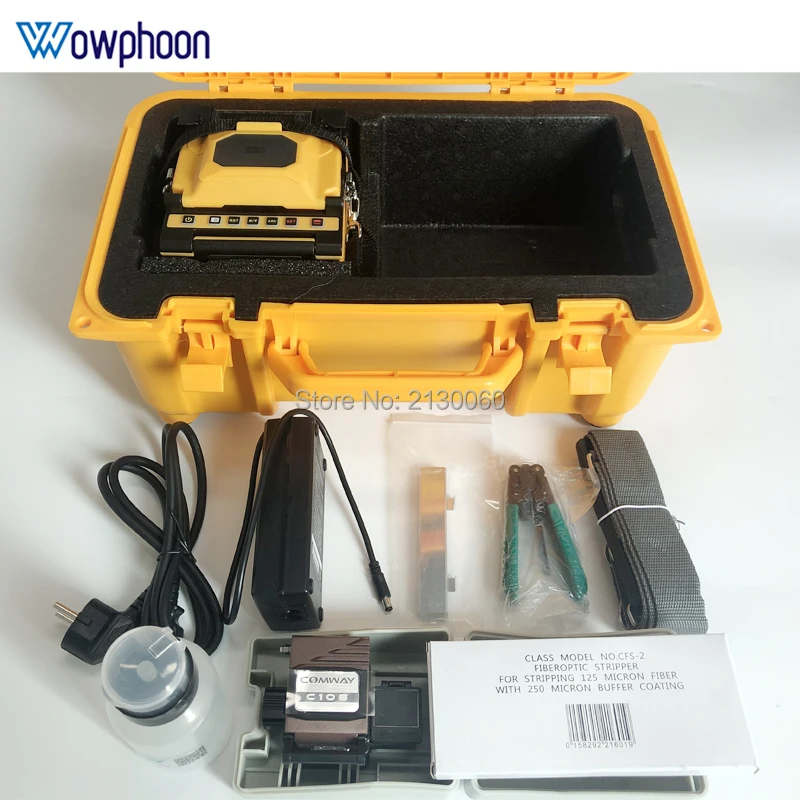

Standard accessories:

Fusion Splicer Comway A3 — 1 pc.

User Guide — 1 pc.

Stripper CFS-2 — 1 pc.

Drop Cable Stripper — 1 pc.

High-precision Cleaver — 1 pc.

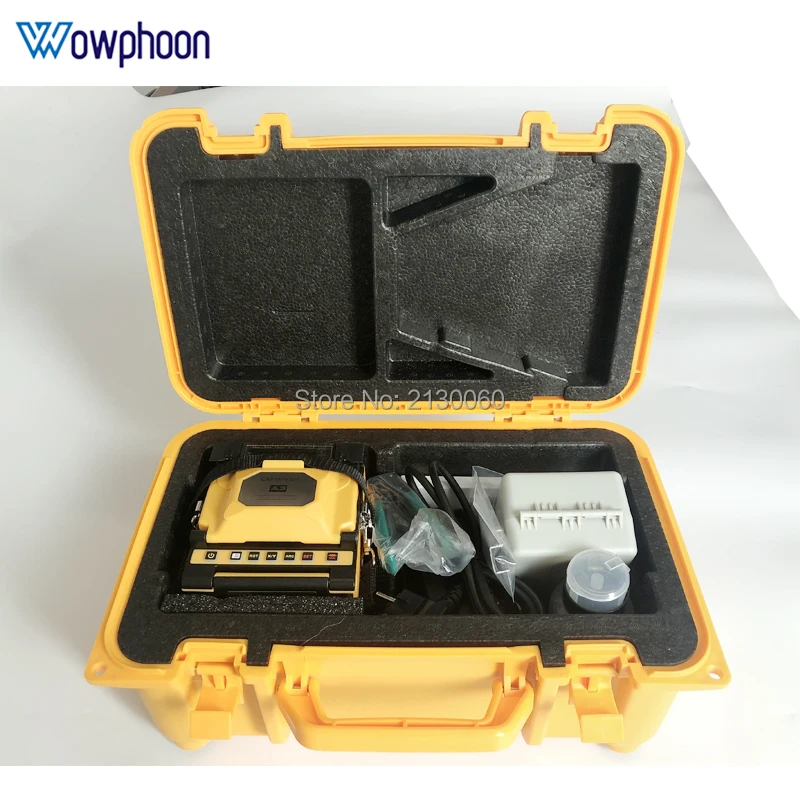

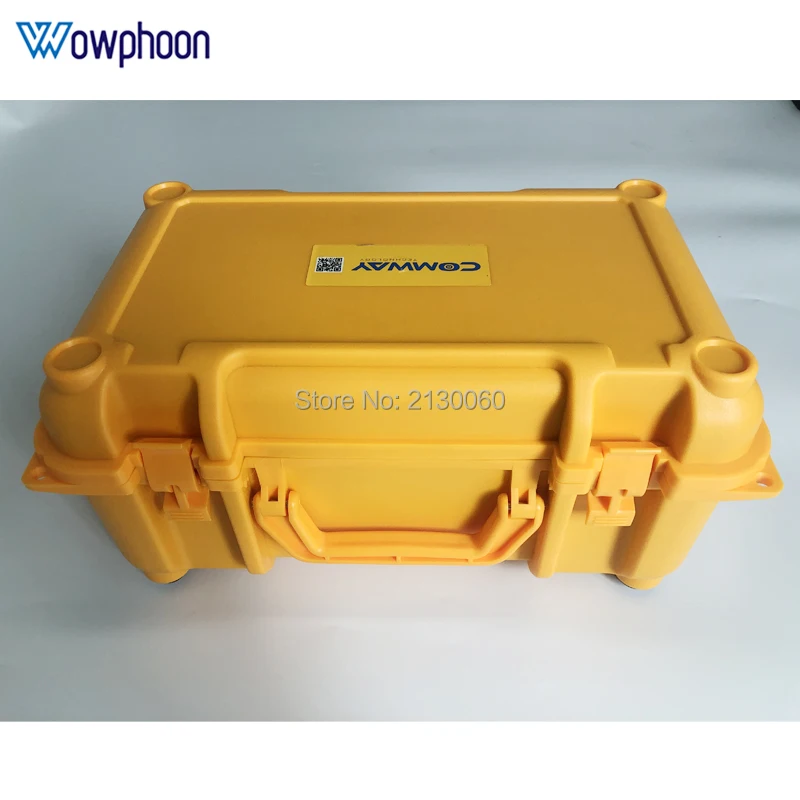

Carrying Case — 1 pc.

High-capacity Battery BAT-05 — 1 pc.

AC adapter ADC-05 — 1 pc.

Extra Electrodes — 1 set

Cooling Tray — 1 pc.

AC Adapter Cable ACC-01 — 1 pc.

Hand Strap — 1 pc.

Alcohol Bottle — 1 pc.
