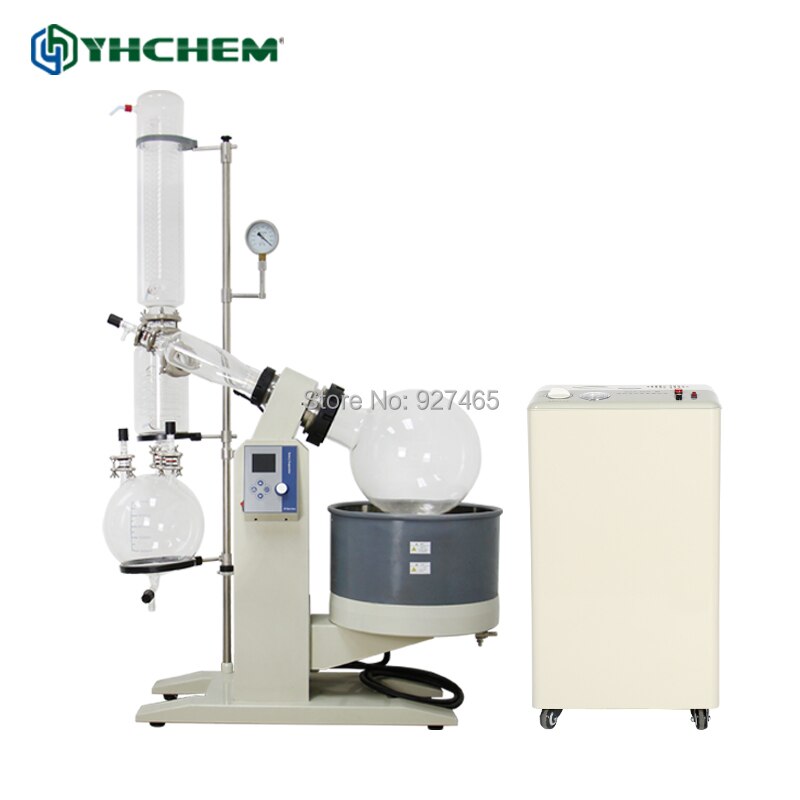

YHChem Glass Vacuum Distillation Rotary Evaoprator with Vacuum Pump for Pilot Plant Test

YHChem Glass Vacuum Distillation Rotary Evaoprator with Vacuum Pump for Pilot Plant Test

YHChem Glass Vacuum Distillation Rotary Evaoprator with Vacuum Pump for Pilot Plant Test



​Kindly remind: As the product is heavy, so  before you buy, please kindly contact with us first, we would like to try our best  to find out a best shipping method for you!



About  Vacuum distillation evaporator 20L

♦RE-20V2 vacuum rotavapor keeps cost to minimum, without any compromise in the essential performance of rotary evaporation. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes.
♦RE-20V2 vacuum rotavapor is OUR new-developed model with a button to control the motor lift to adjust the position of the rotary flask automatically, different from the traditional type to adjust the height of the bath. In this way, the operation of the equipment is more flexible and convenient.









As a professional lab equipment manufacturer, providing  Turnkey Solution  for you is our  mission.

♦Rotary evaporator

♦Supporting chiller

♦Supporting vacuum pump



Structure Display







Main Features of digital display rotary evaporator



·  Modular design (individual rotary and bath modules) for extremely easy maintenance and easy future upgrades.

·  PID temperature controller ensures accurate temperature control.

·  Easy operation of motor lift, moving up and down smoothly and easy to lock.

·  Heavy-duty SS304 support frame guarantees vibration-free operation.

·  Double seal  of Teflon (PTFE) and Viton ensures high vacuum.

·  All parts that come into contact with chemical liquids and gases are made of PTFE and borosilicate glass 3.3 with high corrosion resistance.

·  Specialized motor with extremely compact, intermeshed worm and gear provides precise driving for very quiet, vibration-free operation.

·  Various option and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc.























Control Panel



Integrated control Panel with temperature, rotation speed and bath height display.

LCD display for clearand obvious view.

































 Bath



 Material: Stainless steel 316, with  coating double-sided Teflon for high temperature                                             resistance and  anticorrosion.

Volume: Matching rotation flask for providing adequate heat.

Advantage: Applicable as oil bath and  water bath; Automatic ascending and descending.

























       Rotation Flask

      Material: High borosilicate glass 3.3 with high chemical resistance and endurance.

      Flask Volume: From 10 to 50L for multiple options..

      Advantages: Large evaporation area for efficient rate.





















                                     Condensers

                                 Material: High borosilicate glass 3.3 with high chemical resistance and endurance.

                                Flask Volume: Matching rotation  flask to ensure adequate condensate  volume.

                                Advantage: Double condensers with large condensate area and efficient condensate rate.















            Water Cycly Vacuum Pump



              Flow(L/min): 80                                       Lift(m): 12

              Power(W): 370                                        Extraction gas capacity per tap(L/min): 10

              Water storage capacity(L): 50                 Vacuum degree(MPa): -0.098

              Power supply(V/Hz): 220V, 50Hz           Taps: Singer meter with 5 taps

              Material: Anti-corrosive material















Technical Data:









We have many kinds of vacuum evaporation crystallization equipment , including:

1-5L classic model: RE201, RE301, RE501
1-5L new model: RE2000, RE200B, RE2000E, RE3000, RE3000B, RE3000E
10-50L   large model: RE1001, RE2001, RE3001, RE5001
10-50L explosion-proof model RE1001, RE2001, RE3001, RE5001





About US



Shanghai YHCHEM, Professional Lab Equipment Manufacturer and amp; Solution Provider. We have 10 years’ production and export experience for following products, Short Path Distillation equipment, Molecular Distillation System, Rotary Evaporator, Chemical Reactors, Vacuum Filtration System, etc.
