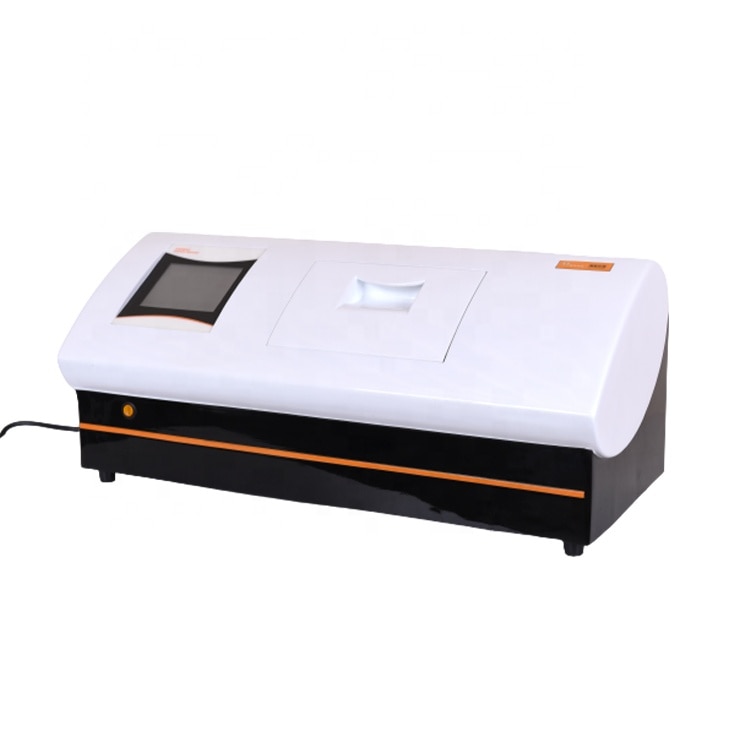

P810Pro Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement,convenient operation. By detecting the optical rotation, the density, content and purity of substances can be analyzed and determined. It’ s widely used in pharmaceutical,petroleum, food, chemicals, flavors, spices, sugar marking and other industries , and universities and research institutes.
Characteristics
·Adopt a 8 inch TFT touch screen, with the brilliant Android system, let the operating easier.·Meet FDA CFR21 part11.·User ID management function. Users ID are available for adding, deleting and jurisdiction setting.·Timing measuring and atlas display function, displaying the samples optical rotation changing dynamic process.·8GB capacity for data storage.·Classify and synchronous result searching function is convenience for user’s result searching.·3 USD port for U-Disk, keyboard and amp;mouse connecting. And WiFi for connecting printer. Let operating much easier
Features
Additional Standard polarization tubes with software for calibration by user.Large Color Touch ScreenLarge color touch screen display and innovative software interface give extremely convenient device operation and data acquisition. P810/P850 adopt a 5.6inch TFT display, P810 Pro/ P850 Pro adopt 8inch TFT display.LED Light Source,High brightness LED lights with service life exceeding 100000 hours. To void the light source exchanging.
Specifications
|
Product Model |
P850 Pro |
|
Measuring range |
±89.99°Arc;±259°Z |
|
Measuring Model |
Optical Rotation;Specific Rotation;Concentration;SUgar Degree |
|
Min.reading |
0.001°(optical rotation) |
|
Accuracy |
±0.01º (-45º≤ optical rotation ≤ +45º) ±0.02º ( optical rotation and lt;-45º or optical rotation and gt;*45º) |
|
Repeatability (standard deviation) |
0.002°(optical rotation) |
|
min.transmittance |
1% |
|
Wavelength/b and gt; |
589.3nm (sodium D spectrum) |
|
Temperature Control |
Peltier |
|
Temperature Control Range/b and gt; |
10℃~50℃ |
|
Temperature Control Accuracy |
0.3℃ |
|
Communication Port |
USB*3;RS232;WI-FI |
|
Data Storable |
8G |
|
21CFR Part 11 |
Yes |
|
Display |
8inch |
|
Sample Cell |
Upto 200mm |
|
Atlas Duraltion |
4hour |
|
Power |
220V AC (±10%)50Hz |
|
Calibration System |
Option |
