Product Description

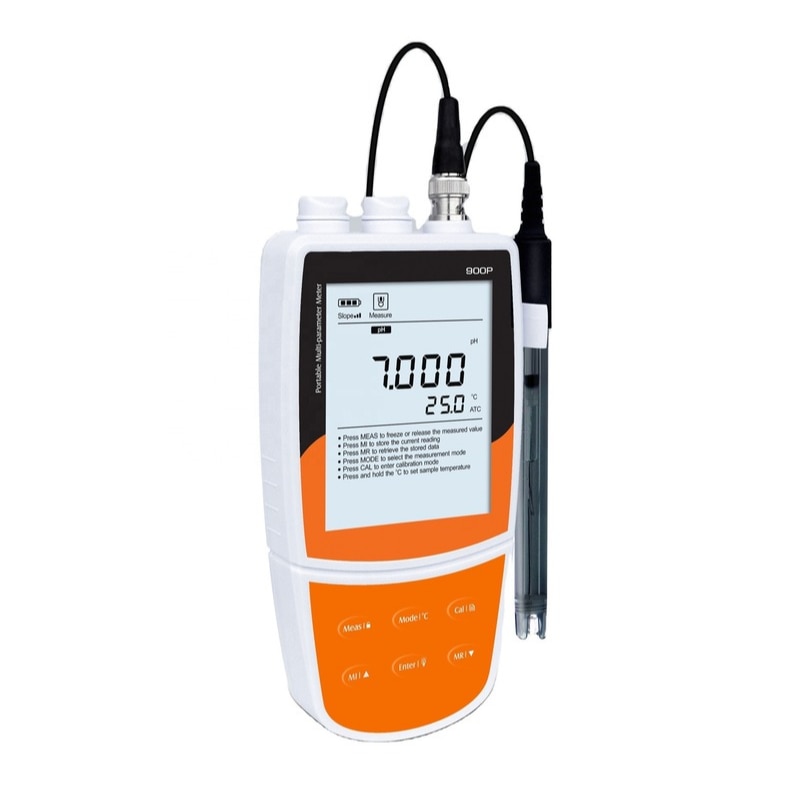

900P Portable Multiparameter Water Quality Meter

Multiparameter water quality meter contains 8 measurement modes, the meter is suitable for measuring the pH, ORP, ion, conductivity, TDS, salinity, resistivity and dissolved oxygen.



Features

 pH Mode:
• Multiparameter portable water quality meter is equipped with a backlit LCD display.
• 1 to 5 points push-button calibration with auto-buffer recognition.
• Selectable pH buffer group (USA/NIST/DIN) or using the custom calibration solutions.
• Automatic electrode diagnosis with pH slope and offset display.

ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes provide the reliable ORP measurements.

Ion Mode:
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Automatically recognizes the ion selective electrode, does not need to specify type of ion.
• Direct ion concentration readout simplifies the measurement process.
• Selectable concentration units, including the ppm, mg/L and mol/L.

Conductivity/TDS/Salinity/Resistivity Modes:
• 1 to 5 points calibration, automatically recognizes the conductivity standard solutions.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear/
  pure water compensations, seawater and practical salinity measurement modes.

Dissolved Oxygen Mode:
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Selectable the salinity and barometric pressure compensation coefficients.

Other Features:
• Automatic Temperature Compensation ensures accurate readings over the entire range.
• Calibration Due Alarm prompts user to calibrate the meter regularly.
• Stability indicator shows when a measurement is recognized as stable.
• Auto-Read feature senses and locks the measurement endpoint.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off effectively conserves battery life.
• Calibration report provides the details for checking the electrode performance.
• Setup menu allows setting the 15 parameters, including the number of calibration points,
  stability criteria, temperature unit, date and time, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Expanded memory stores and recalls up to 500 data sets.
• Stored readings can be transferred into the computer by USB communication interface.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that use the
  meter smoothly.

Specifications

 Model



900P

   pH



   Range



-2.000~20.000pH

   Accuracy



±0.002pH

   Resolution



0.1, 0.01, 0.001pH, selectable

   Calibration Points



1 to 5 points

   pH Buffer Options



USA, NIST, DIN or Custom

   mV



   Range



±1999.9mV

   Accuracy



±0.2mV

   Resolution



0.1, 1mV, selectable

   Calibration Points



1 point

   Measurement Modes



Relative or Absolute mV

   Ion



   Range



0.001~19999 (Deponding on the range of ISE)

   Accuracy



±0.5% F.S (Monovalent), ±1% F.S (Divalent)

   Resolution



0.001, 0.01, 0.1, 1

   Calibration Points



2 to 5 points (0.001, 0.01, 0.1, 1, 10,  100, 1000, 10000)

   Measurement Units



ppm, mg/L, mol/L, mmol/L

   Conductivity



   Range



0.01~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm

   Accuracy



±0.5% F.S

   Resolution



0.001, 0.01, 0.1, 1

   Calibration Points



1 to 5 points

   Calibration Solutions



10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm

   Temperature Coefficient



0.0~10.0%/°C

   Compensation Modes



Linear or Pure water

   Cell Constant



K=0.1, 1, 10 or Custom

   Reference Temperature



20°C or 25°C

   TDS



   Range



0~10.00, 100.0, 1000ppm, 10.00, 100.0ppt (Max. 200ppt)

   Accuracy



±1% F.S

   Resolution



0.01, 0.1, 1

   TDS Factor



0.1~1.0 (Default 0.5)

   Salinity



   Range



0.00~80.00ppt, 0.00~42.00psu

   Accuracy



±1% F.S

   Resolution



0.01

   Measurement Modes



Practical salinity (psu) or Natural seawater (ppt)

   Resistivity



   Range



0.00~20.00MΩ

   Accuracy



±1% F.S

   Resolution



0.01, 0.1, 1
