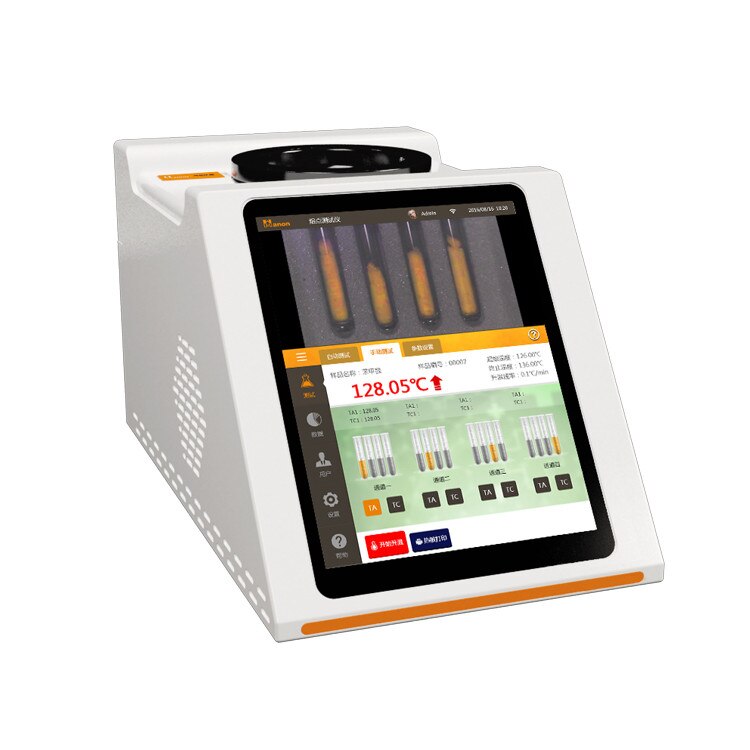

MP430 Video Melting Point Apparatus, and MP450/MP470/MP490 Automatic Video Melting Point Apparatus, perfectly integrate video technology into melting point measuring. It not only provides users with reliable melting point test result, but also intuitively displays temperature curve and real-time video image, and achieves the function of save, replay the video,stamp video and so on. It also provides better help for users to observe melting process of sample.
Features
1. All Screen Design2. Adopt a 8 inch capacitive touch screen, with the brilliant Android system, let the operating easier.3. Amazing Data Processing and amp; Exporting4. The methods, atlas and detailed result are available for storage. Connecting printer or all data export are both available. 5. MP470/MP490 Compliant with GLP, GMP(EU,UPS and amp;CN) and FDA CFR21 part 116. Visual and Automatic Determination It includes a color display to observe the phase transition, is equipped with a video camera and a video replay function which allows reviewing the melting point determination. It also suit for color samples, which tradition automatic melting point apparatus not available.7. Available Testing 4 Samples Concurrently8. Max concurrent sessions 4 samples each batch, record and track each result independently, meet FDA CFR21 part 11 requirements.9. Multi-user ID Classify Function10. Adopt User ID management function. Users ID are available for adding, deleting and jurisdiction setting.
Product Parameters
|
Position Capacity |
4 |
|
Magnification of lens |
8 |
|
Display |
8 inch capacitive touch screen |
|
Temp Range |
RT -300° |
|
Temperature resolution |
0.1℃ |
|
Temperature Accuracy |
±0.4℃( and lt;200℃)±0.7℃( and lt;300℃) |
|
Temperature Gradients |
Step-less setting at 0.1℃~20℃ |
|
ID classify |
No |
|
Camera and amp; Video |
Camera |
|
video reply |
No |
|
Atlas Storage Capacity |
0 |
|
Method Storage Capacity |
0 |
|
Room Capacity |
8GB |
|
FDA CFR21 part11 |
No |
|
Communiction Ports |
USB,WIFI,Internet,RS232 |
