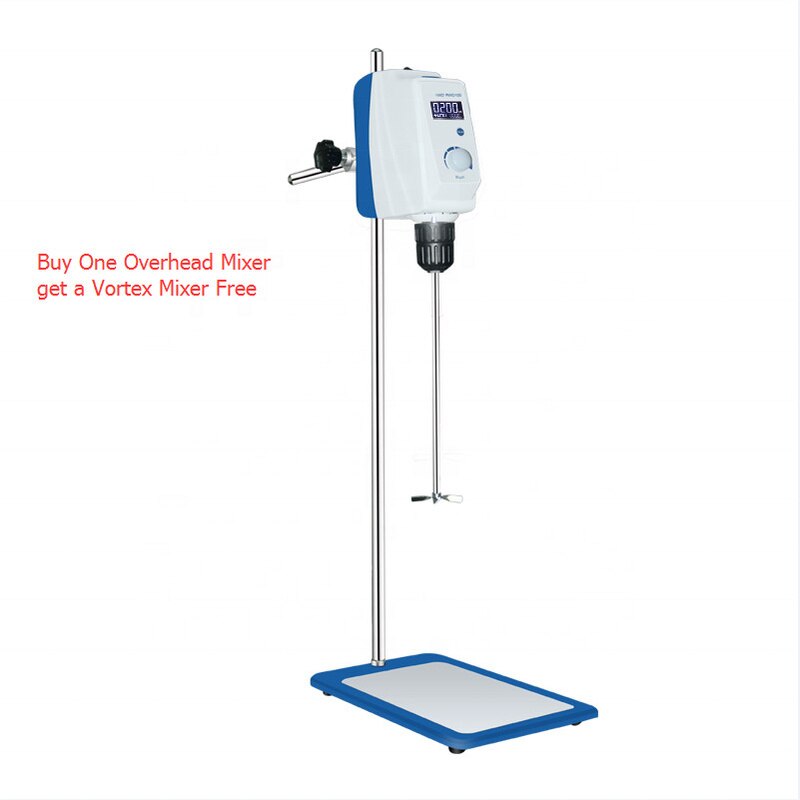

Laboratory Electric Overhead High Shear Lab Mixer Agitator Mixer

Laboratory Electric Overhead High Shear Lab Mixer Agitator Mixer

Product Description:

The Technical Parameters

Model   RWD150 RWD100 RWD50
Capacity 50L 40L 20L
Speed range 30~2200rpm 30~2200rpm 30~2200rpm
Speed display LCD LCD LCD
Speed resolution ±1rpm ±1rpm ±1rpm
Torque 80N.cm 60N.cm 40N.cm
Overload  protection YES YES YES
Motor protection YES YES YES
Max viscosity 80000mPas 50000mPas 10000mPas
Diamter   0.5-10mm 0.5-10mm 0.5-10mm
Exterior Dimension   186*83*220mm 186*83*220mm 186*83*220mm
Net weight 3.0kg 2.8kg 2.6kg
Protect class IP42 IP42 IP42
Ambient temp 5-40C 5-40C 5-40C
Ambient moisture 80% 80% 80%
RS232 Yes Yes Yes
Input power 160W 120W 60W
Output power 150W 100W 50W
Voltage AC220V50HZ AC220V50HZ AC220V50HZ
Power 160W 130W 70W





Laboratory Electric Overhead High Shear Lab Mixer Agitator Mixer
