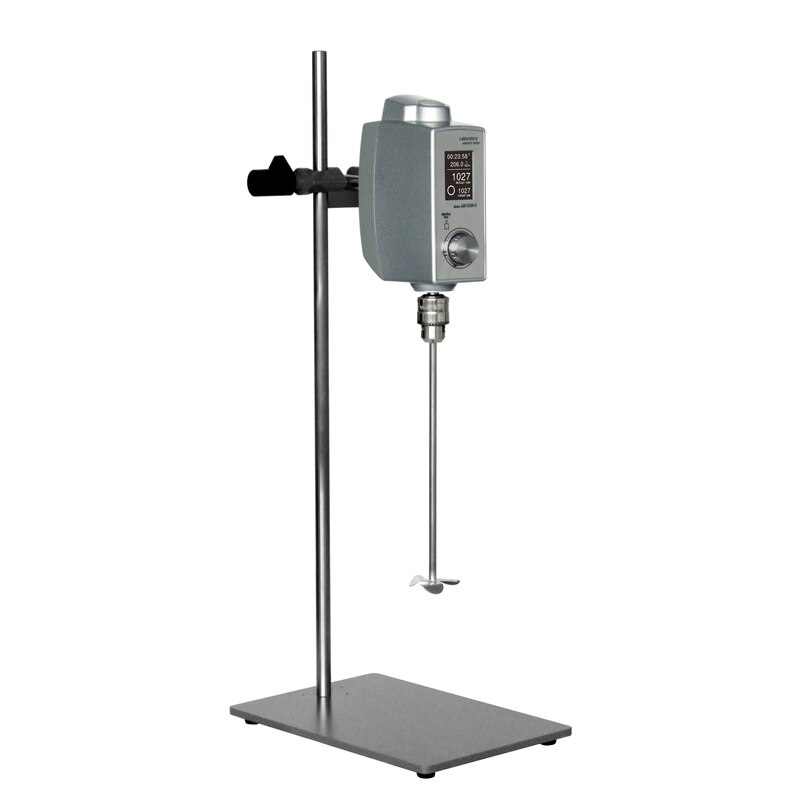

Laboratory 20L 30-2000rpm Strong Power Brushless Motor Overhead Mixer Chemical Lab Stirrer

Laboratory 20L 30-2000rpm Strong Power Brushless Motor Overhead Mixer Chemical Lab Stirrer

NOTE: Please Read It Before Order

1.We are not responsible for any custom duty or import tax fee , it is buyer’s responsibility, if you have any problem, pls contact us freely. Regardless of the buyer from which country or region you are in, when the declared value of the goods exceeds a certain value (each country or region is different, please consult the local customs), import tariffs will be generated. The tariff must be paid by the buyer. If you are not willing to pay customs duty, please kindly do not buy products in our store!

2.We will fill in the declared value according to the actual payment amount. You can contact us and ask us to fill in a lower declared value, but the resulting customs deduction risk will be borne by you!

Introductions
1. This high-power brushless mixer is driven by a brushless DC motor and is suitable for mixing low-to-medium, high-viscosity liquids in the laboratory.
2. The machine has low speed operation, high torque output, low noise, and no maintenance.
3. The stirring speed is controlled by the microprocessor. It can instantly and effectively compensate the speed change caused by the load change and power supply voltage fluctuation, and the constant speed is reliable.
4. Built-in automatic overload protection device to ensure the safety of continuous high-load continuous operation for a long time.
5. The stirring speed is adjusted steplessly to meet the stirring speed at any time in the experiment.
6. The digital display shows the actual output stirring speed and speed increase and decrease to ensure the intuitive collection of experimental data.
7. Running timing control ensures that the time of the experiment is effectively controlled.

Application
The stable stirring speed of the machine is suitable for stirring high viscosity media and slurry.

The stirrer can stir high viscosity medium or thick liquid and stirring speed can be regulated easily during operation.  The stirrer is an ideal device in the field of biological material, physics and chemistry, reagent, building material, cosmetics and health products etc. for products developing, quality control and material testing.

Features:

1. Brushless Direct Current Motor.

2. Widely used in laboratory for mixing and dispersing material of solid-liquid, liquid-liquid, in different viscosity from low to high.

3. Suitable for a wide range of material with different stirring paddle and different speed.

4. Stable and constant operation.

5. Overload protection.

6. Long time running.

7. High effective in speed control.

8. Easy operate and easy clean easy maintenance.

9. Timing. speed setting memoried.

Specification:

Model

AM100W-O

Processing capacity (H2O)

20 L

Input power

162 W

Output power

110 W

Rated torque

13.1 N.cm

Peak torque

39 N.cm

Rated voltage

AC 100~240 V

Rated frequency

50\60 Hz

Rotary clamp head range

Φ2~10 mm

Stirrer configuration

3 blade paddle

Drive type

Brushless DC Motor

Work mode

S1 (Continuous)

Operation status display

LCD

Operation control method

Function knob

Speed adjustment range

30~2000 rpm

Speed control type

Stepless

Timing control range

1~6000 min

Speed dynamic detection function

Yes

Motor temperature dynamic detection function

Yes

Speed memory function

Yes

Overload protection

Yes

Stir bar fixing method

Quick install chuck

Treatment viscosity

100000 mPa.s

Allowable ambient temperature

Not more than 40 ℃

Allowable relative humidity

Not more than 80 %

Protection level

IP 40

Machine size

215×310×720 mm

Weight

7.6 kg



We provide a wide range of stirrer/mixer/agitator/homogenizer, at different speed, different capacity, with different paddle shapes, suitable for different liquid.



Model

AM100W-O

AM200W-O

AM300W-O

AM400W-H

Processing capacity (H2O)

20 L

30 L

50 L

60 L

Input power

162 W

295 W

440 W

615 W

Output power

110 W

200 W

300 W

418 W

Rated torque

13.1 N.cm

40.2 N.cm

60.1 N.cm

100 N.cm

Peak torque

39 N.cm

120 cm

180 N.cm

300 N.cm
