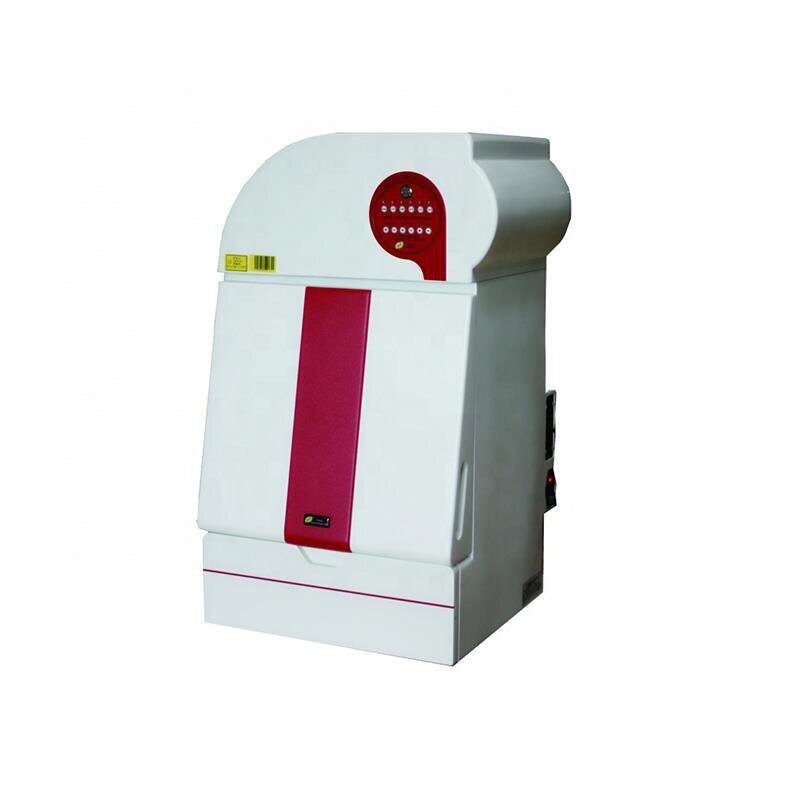

JS-780 fully automatic gel image analyzing system is applicable to take picture for DNA/RNA electrophoresis gel, protein electrophoresis gel, Dot blot by means of high sensitivity CCD and without losing the strip. It can control EB pollution to the most degree and protect health of laboratory assistant. Also it help to get the image and analytic result quickly.
Key Features
1.Can adjust focal length, aperture, UV and Reflector lamp through chassis panel2.Can adjust focal length, aperture, UV and Reflector lamp through computer3.Can observe gel real time through computer
Application
DNA/RNA gel, protein gel, Northern blot, ELISA PLATE, thin layer chromatography and culture vessel
Specification
1.CCD: SONY ICX674 digital professional low illumination integral CCD2.Sensitivity: and gt;= 0.02ng Nucleic acid3.Pixel: 1920×14604.Lens: Japanese Computar AF lens, F=1:1.2, 12.5 – 75mm, can zoom in the size of gel5.A/D Conver: 16 bit(0-655356.Pixel size: 4.6 x 4.6 um7.SNR: and gt;= 60db8.Shutter control: electronic shutter9.Exposure time: 4ms – 60 minutes, can multi-capture and save all images, has function of image correction10.Transmission interface: USB2.011.Tapping device: special tapping device12.Filter: 590nm EB/SYBR Green, BP13.Box controller: can adjust focal length, aperture, UV and Reflector lamp14.Computer controller: can adjust focal length, black box, power, UV, white light, aperture, zoom and focal length15.Timing off: can set timer(10-60 minutes), prolong the life of UV light and uviolglass16.Open door way: swing door and drawer-style17.UV transmission stage: transmission wavelength: 302nm(254nm, 365nm is optional), size: 20cm x 25cm(customizable)18.White light reflection: luminescence, 12v(brightness is controlled by computer)19.White light transmission stage: luminescence, 12v, drawer-style platform, size 20cm x 25 cm(customizable)20.Software: SensiAnsys, professional image collection and analysis system
