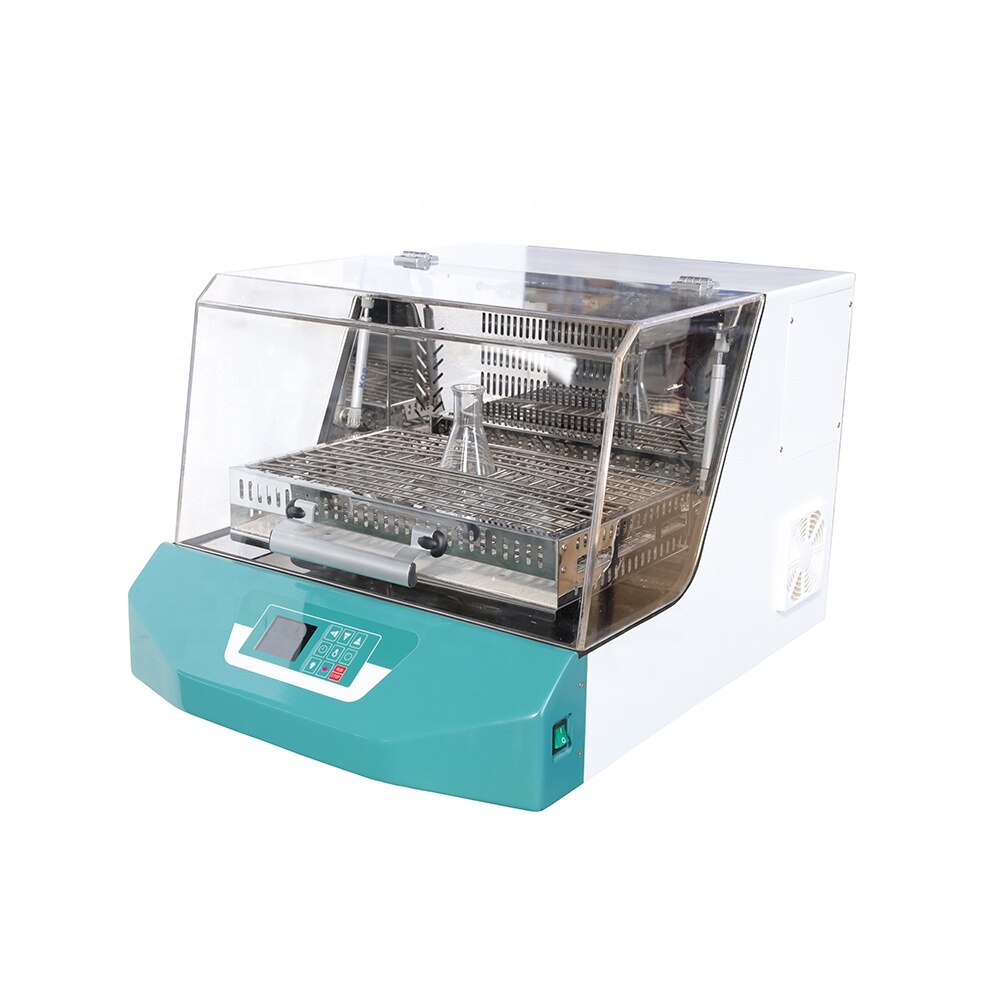

FS-50B Best Price 200L Fully Automatic Laboratory Equipment Benchtop Shaking Shaker Incubator

FS-50B Best Price 200L Fully Automatic Laboratory Equipment Benchtop Shaking Shaker Incubator

Key Features

1. Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.2. Microcomputer control temperature and oscillation frequency with timing functions, Built-in power-off protection canautomatically resume operation after power on.3. Unique air duct breeze circulation, Large observation window.4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control.Adjustable starting speed to prevent the splash of shake flask liquid.5.With function of cutting off UV lamp by open door.6.Studio at the bottom waterproof, Spills will not affect the normal operation of the machine.

Specification

Model
FS-50B
FS-70B
Shaking Mode
Cyclotron Oscillation
Function
Amplitude
Ф20mm
Temp. Resolution
0.1℃
Temp. Motion
±0.1℃
Temp. Uniformity
±1℃
Temp. Range
RT+5~65℃
4~65℃
Rotary Speed
30~300rpm
30~300rpm
Rotary Speed Precision
±1rpm
Structure
Chamber Material
Mirror Stainless Steel
Outer Shell
ABS
Observation Window Material
Imported resin
Thermal Insulation Material
Polyurethane
Cooling System
No
Yes
Coolant
No
R134a
Heater
Stainless steel heating tube
Drive Mode
Three-axis level
Oscillating Plate
Spring Wire Rack
Air Circulation Mode
Horizontal convection
Power Rating
0.6kW
0.8kW
Controller
Temp. Control Mode
LCD PID intelligent control
Cyclotron Control Mode
Automatic changes of rotation direction
Setting Mode
Touch button setting
Temp. Display Mode
LCD display
Speed Display Mode
Timer
0~9999min
Operation Function
Fixed value operation、timing function、bidirectional automatic switchover、auto stop、quick stop start
Temperature Sensor
Pt100
Speed Sensor
Hoare
Gating System
Yes
Additional Function
Deviation correction, menu keys locked, power-off memory
Safety Device
over temperature alarm, menu locked, gating system ,power-off protection , plugging turn protection
Specification
Inner Chamber Size (W*L*H)(mm)
455*380*290
560*390*320
Exterior Size (W*L*H)(mm)
500*640*480
600*770*500
Packing Size (W*L*H)(mm)
550*690*530
940*780*655
Shelf Size(mm)
380*320
480*315
Max capacity of Shelf for single specification(ml/pc)
100ml*16/250*10/500*6
100ml*28/250*15/500*8/1000*6
Number of flask clamp as standard (ml/pc)
250*8
250*12
Inside Volume
50L
70L
Shelf Load Bearing
≤10kg/layer
≤15kg/layer
Shelf Layer
1
Power Supply (50/60Hz)Current Rating
AC220V/2.5A
AC220V/3.5A
NW/GW (kg)
25/35
65/85
