Product Paramenters

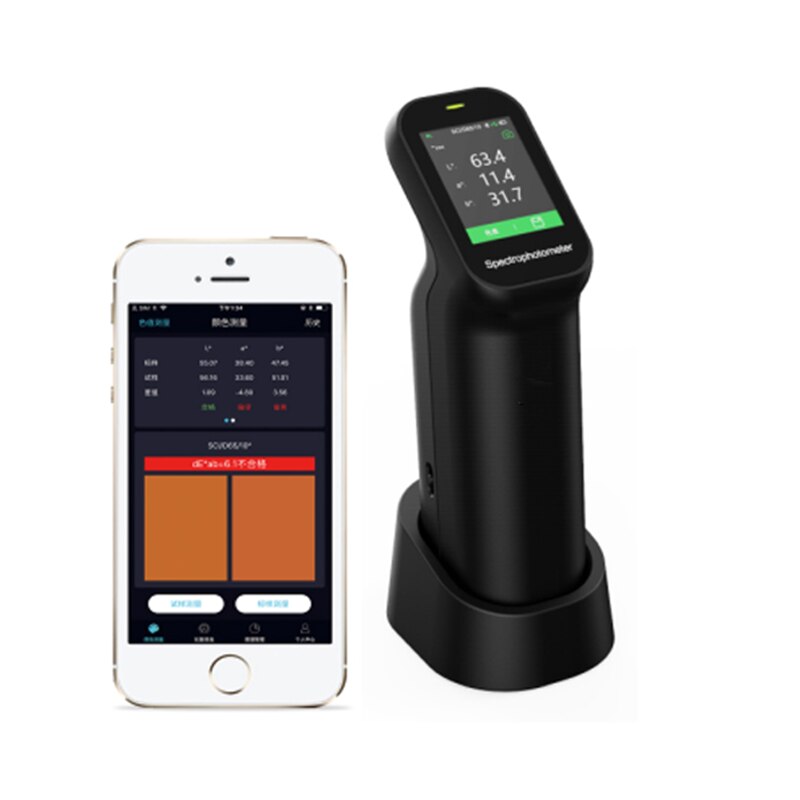

Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation… it will fully upgrade the user experience.

Model

Spectrophotometer CS-500

Geometry

d/8

SCI

Light Source

LED

Color Spaces and Indices

Reflectance, CIE-Lab, CIE-LCh,

HunterLab, CIE Luv, XYZ, Yxy, RGB,

Color difference(ΔE*ab, ΔE*cmc,

ΔE*94,ΔE*00),WI(ASTM E313-00,

ASTM E313-73,CIE/ISO, AATCC,

Hunter, Taube Berger Stensby),

YI(ASTM D1925,ASTM E313-00,

ASTM E313-73), Blackness (My,dM),

Color Fastness, Tint,(ASTM E313-00),

Color Density CMYK(A,T,E,M), Milm,

Munsell, Opacity, Color strength

Illuminants

A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,

F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,

U35,DLF,NBF,TL83,TL84

Observer Angles

2°,10°

Sensor

256 pixel CMOS sensor

Calibration

Auto

Wavelength Range

10nm

Wavelength Range

400-700nm

Reflectance Range

0-200%

Reflectance Resolution

0.01%

Sphere Size

40mm

Repeatability

Chromaticity value:
Max. :dE*ab and lt; 0.1
Average :dE*ab and lt; 0.05
Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval)
Reflectance:
Standard deviation and lt; 0.1%

Illumination Area/Aperture

MAV:Φ8mm/Φ11mm

Inter-instrument agreement

ΔE*ab<0.3
(BCRA Series Ⅱ, average measurement of 12 tiles,MAV/SCI)

Test Time

About 2s

Storage

APP mass storage

Battery

Rechargeable, 8000 times continuous tests, 3.7V/3000mAh

Screen

IPS Full Color Screen,2.4 inches

Interface

USB,Bluetooth

Lamp Lifetime

10 years, 1 million tests

Language

Chinese and English

Software

Andriod,IOS,Windows

Pass Metrology

Yes, metrology level I

Camera

without

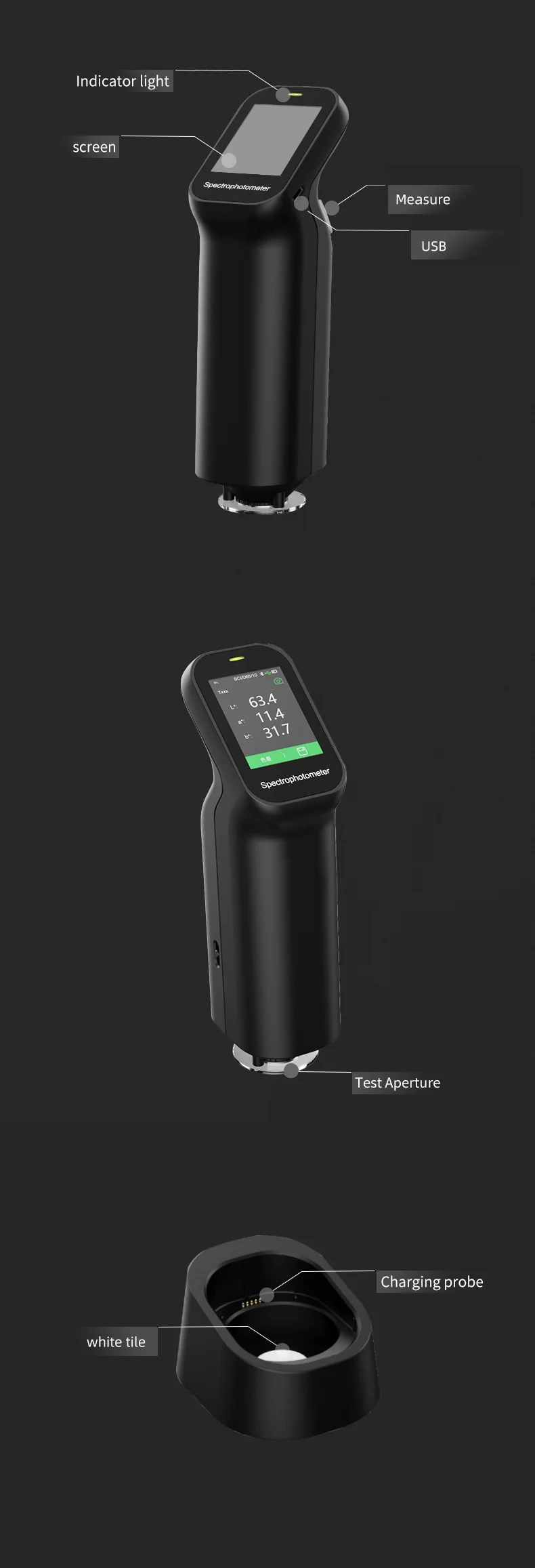

Detailed Images
