China factory price for lab chemical double layer jacketed 50 litres reactors glass w cap-cover w shirt W PTFE Stirrer

China factory price for lab chemical double layer jacketed 50 litres reactors glass w cap-cover w shirt W PTFE Stirrer

China professional Laboratory Equipment Manufacturer sell Glass Reactor with different size from 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L



It can stir and react under the natural pressure or negative pressure in the sealed reactor and The stirring and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.



The price is just for 50L Jacketed glass reactor .Thanks for your kindly attention







 Jacketed glass reactor drawing details

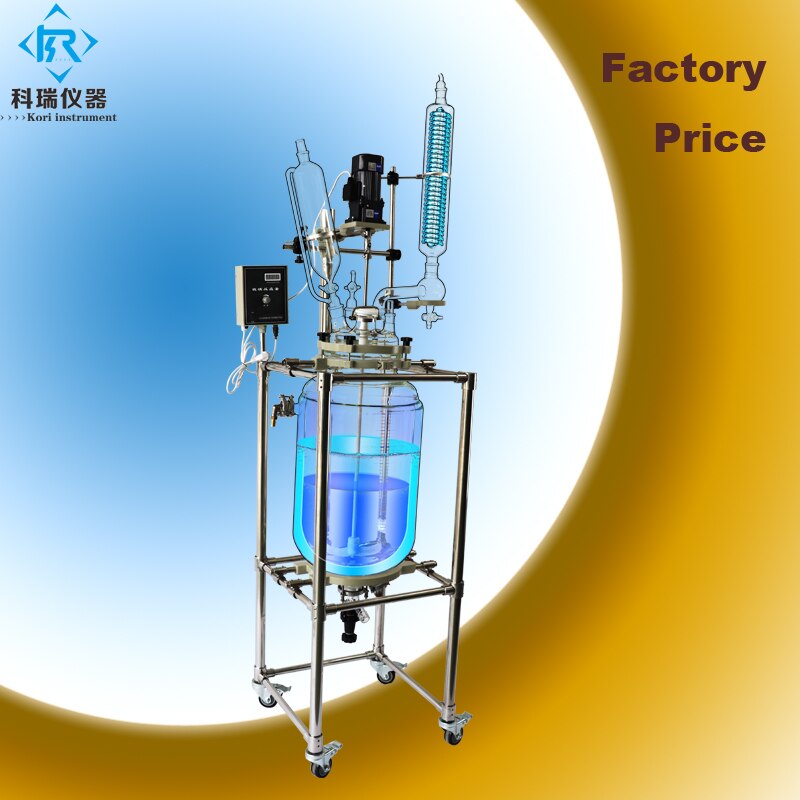

 Jacketed glass reactor ( 50l Glass reaction tank , glass lid, Reflux Flask    /condenser , liquid feeding valve, stopcock , thermowell , big solid feeding valve and motor stirring )





  If you need add receiving flask or condenser into reaction tank direclty   or any other special request , kindly contact us for more details



 Glass lid of Jacketed glass reactor



 Bottom discharge Valve of Jacketed glass reactor













Feature:
1. Overall Stainless steel (SS304)frame and screw with strong support and hardness
2. GG17 (3.3) high borosilicate glass with uniform thickness and big glass mouth design to clear conveniently .
3. Double coil pipe inside Condenser
4. PTFE mechanical component sealing without any leakage and corrosion resistance
5. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable;
6. Casters with brake fixed, it is convenient and stable
7. Stirring Rob is made of stainless steel inside and PTFE outside
8. Flange is protected big glass mouth
9. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L
10. Pallet is made of solid stainless steel to support glass bath
