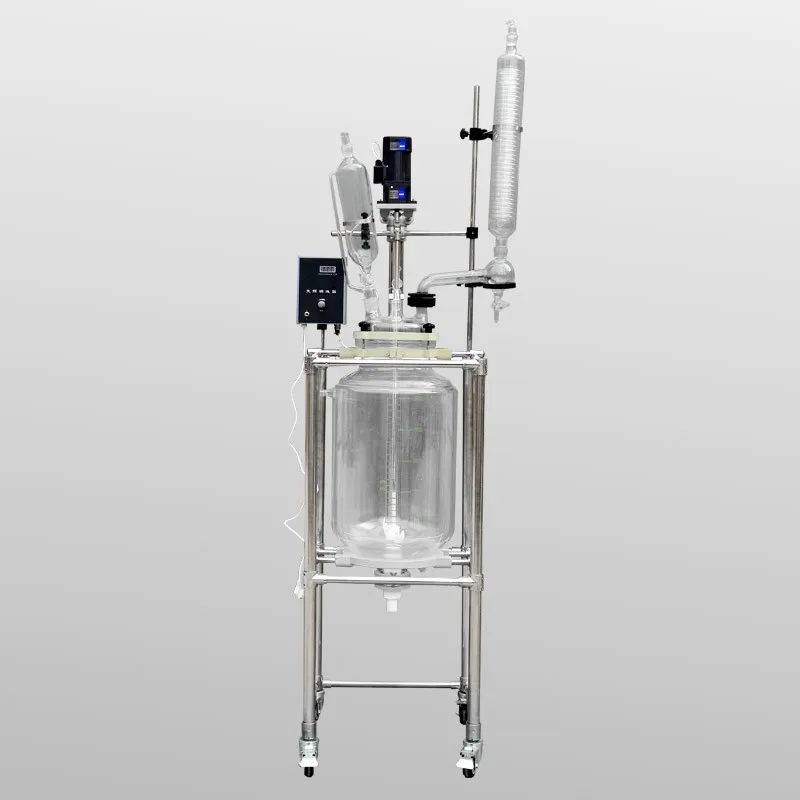

China professional Laboratory Equipment Manufacturer sell Glass Reactor with different size from 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L
It can stir and react under the natural pressure or negative pressure in the sealed reactor and The stirring and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.

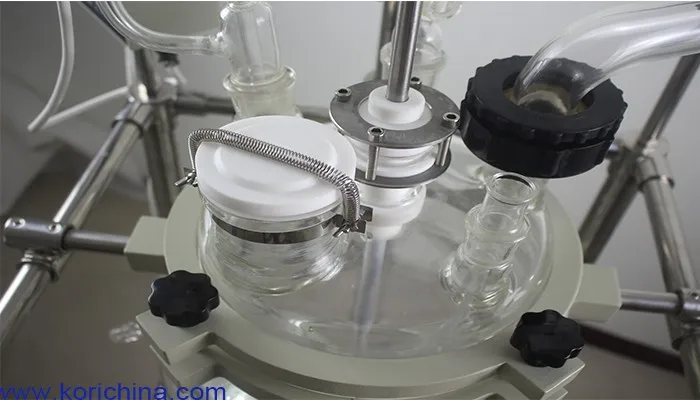

6 Glass ports in the Cap (1.Big mouth for material input , 2.thermometer 3.Reflux 4. Material Stopcock 5.Constant pressure funnel 6. Stirring mouth )

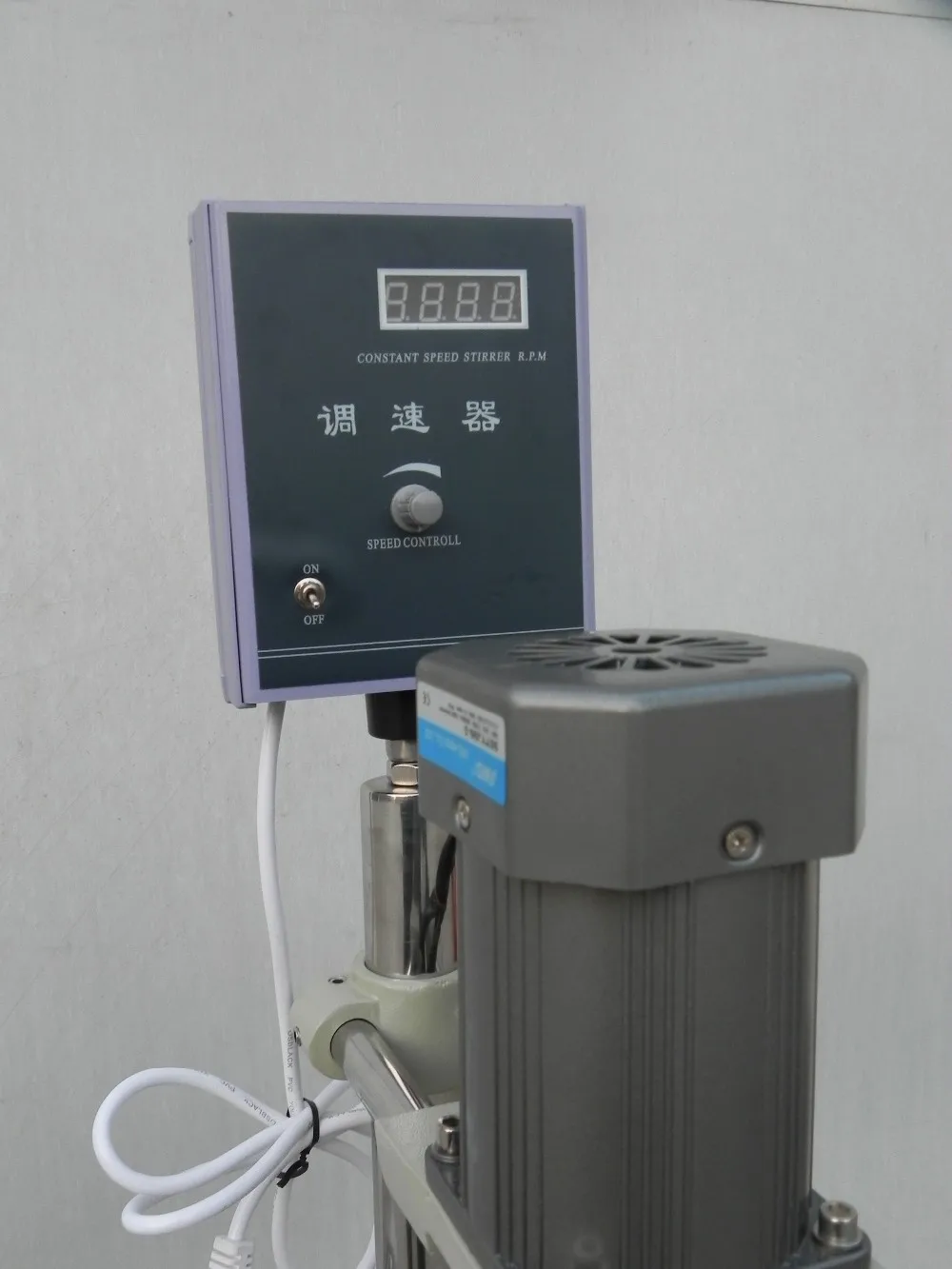

Motor and amp; Speed controller

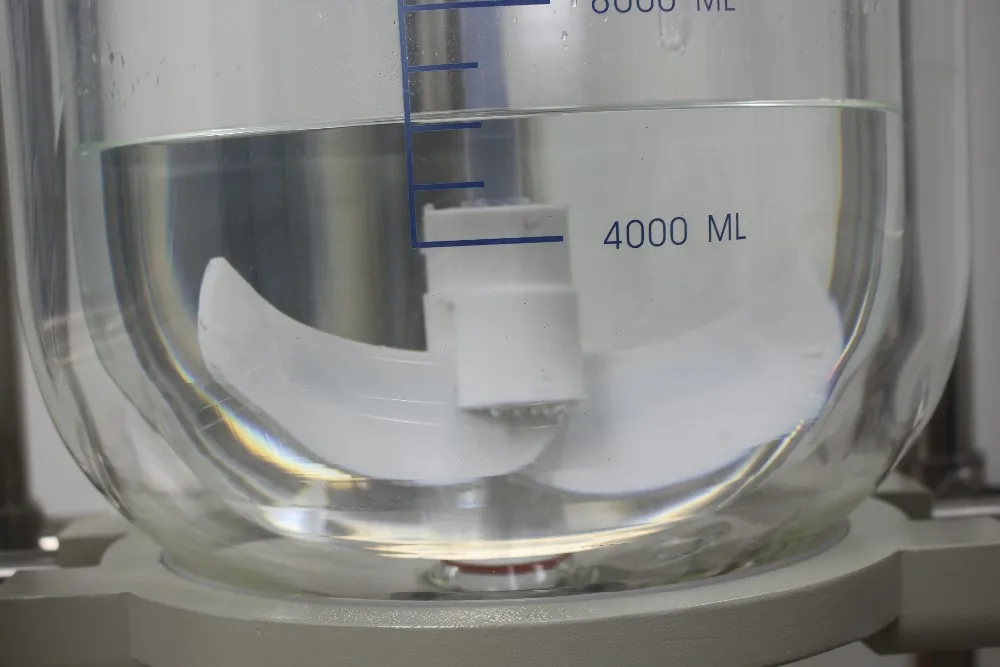

PTFE Stirring Shaft

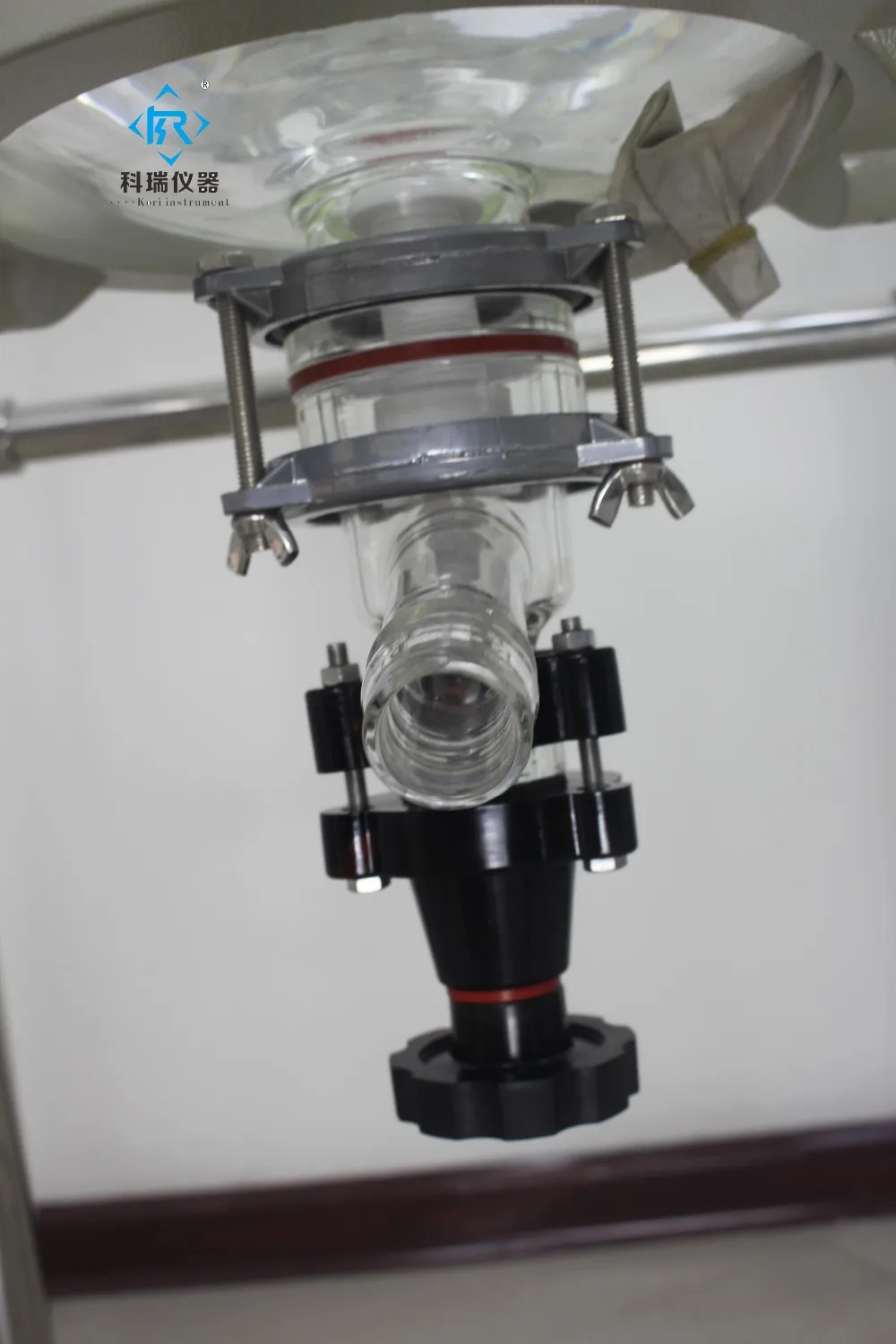

PTFE Discharge Valve
Feature:
1. Overall Stainless steel (SS304)frame and screw with strong support and hardness
2. GG17 (3.3) high borosilicate glass with uniform thickness and big glass mouth design to clear conveniently .
3. Double coil pipe inside Condenser
4. PTFE mechanical component sealing without any leakage and corrosion resistance
5. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable;
6. Casters with brake fixed, it is convenient and stable
7. Stirring Rob is made of stainless steel inside and PTFE outside
8. Flange is protected big glass mouth
9. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L
10. Pallet is made of solid stainless steel to support glass bath
Double coil pipe in the Glass Condenser
Glass: High Borosilicate GG3.3
