Product Description
Xingyang Kori Instrument Factory is manufacturing Glass Reactor with different size at 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L
10L,20L,30L,50L,100L,150L,200L are optional for Explosion proof .
It can stir and react under the natural pressure or negative pressure in the sealed reactor and The stirring and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.

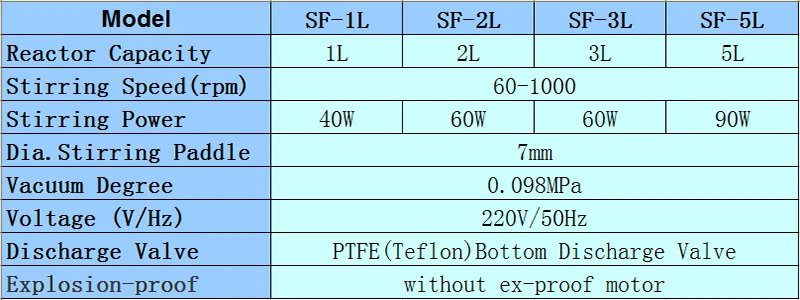

Technical Data
Main Features
1. GG3.3 borosilicate glass, good chemical and physical properties.
2. AC induction motor, Digital display of mixing speed, frequency conversion, and constant speed mixing system, brushless, no spark, safe and stable.
3. Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.
4. PTFE discharge valve can discharge materials thoroughly and quickly.
5. Can work under pressure and vacuum conditions, under vacuum of about 0.098MPa up to the stationary state.
6. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L
7. The whole structure is novelty, practical and beautiful.
How to work
1.Through Interlayer of double lined glass reactor, Inject material or Liquid with thermally dissolved or cooling into Glass reaction vessel.
2. Connect External Heating or cooling Equipment with Double Lined glass reactor
3. Stir material or liquid at constant speed heated by Agitator .
4. It can stir and react under the natural pressure or negative pressure in the sealed reactor
5. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate.
6. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.
Detailed Images
Product Series
Workshop
Packing and amp; Delivery
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of lab instruments with a history of10 years.
2. How to choose suitable equipment ?
You tell us your requirements (For example: capacity, temperature range, pressure,
etc ), we will recommend you the best suitable equipment.
3. What’s the size do you have?
We can offer you 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 100L,150L.200L
4. How many kinds of your glass reactor?
Three types: Single lined , Double lined ,Triple lined Explosion proof is available
5. What’s the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the
PTFE stirring bar can withstand about 200 degree centigrade
6. What’s the heating mode of single layer glass reactor?
oil/water bath heating, and heating mantle.
7. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you
demand.
8. What’s the minimum order quantity?
One set
9. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be
discussed during the deal.
10. How will you delivery these goods? What is the delivery time ?
By Air, By Courier or Express (DHL,UPS,FEDEX and TNT ), By Sea .Goods will be sent within 7-
10days after receiving your payment
11. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
