Product Description
Xingyang Kori Instrument Factory is manufacturing Glass Reactor with different size at 1L,2L,3L,5L,10L,20L,30L,50L,100L,150L,200L
10L,20L,30L,50L,100L,150L,200L are optional for Explosion proof .

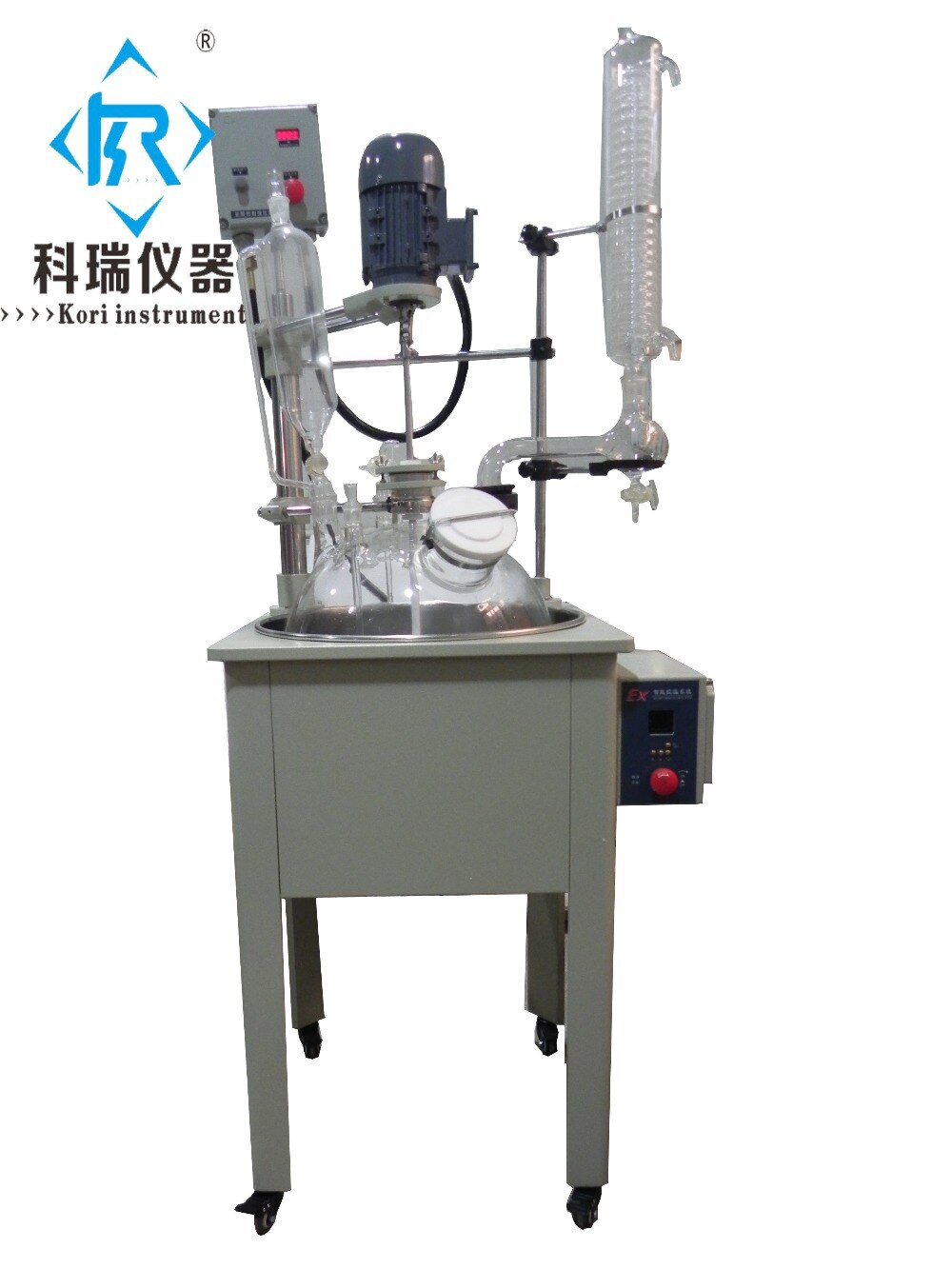

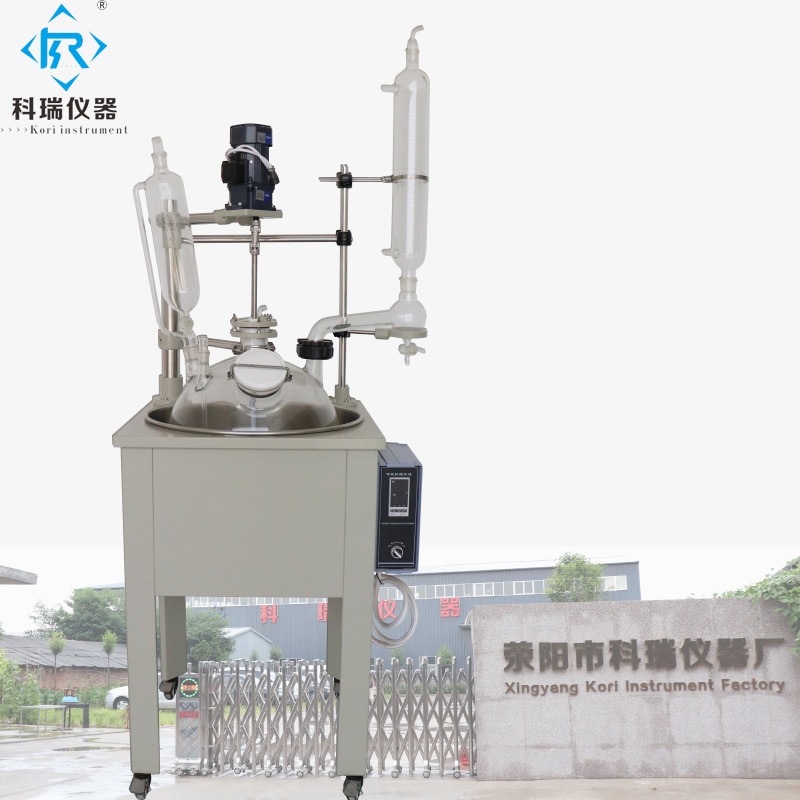

The single layer Glass Reactor is a generic term for a type of vessel widely used in the process industries. It is used for a variety of process operations such as dissolution of solids, product mixing, chemical reactions, batch distillation, crystallization, extraction and polymerization. The advantages of the glass reactor lie with its versatility and visibility. Single-layer glass kettle body design, through the water/oil bath or heating jacket to directly heat the kettle body, To make the material react with constant temperature.

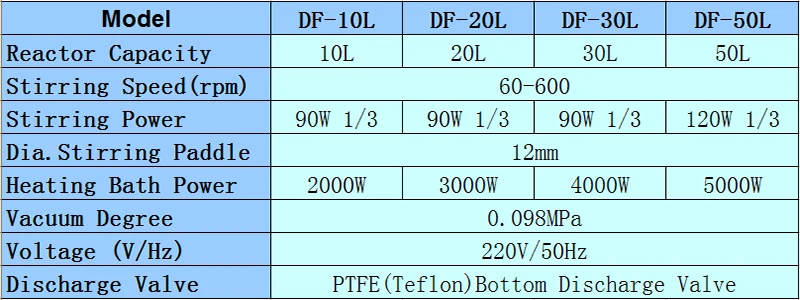

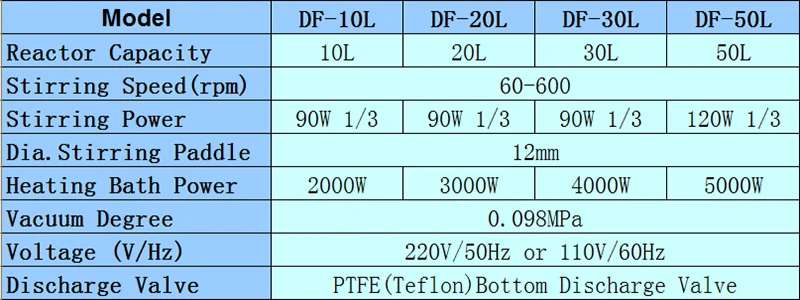

Technical Data
Main Features
1. All glassware is from First-class high-borosilicate glass that is heat/cold/corrosion-resistant,owns excellent chemical and physical performance.
2. Overall Stainless steel (SS304)frame and screw with strong support and hardness .
3. Can be used in wide temperature range from high temperature (200°C)to low temperature(-80°C).
4. Imported high torque reinforcement electrical machine, frequency conversion constant temperature stirring system, stable working state.
5. Corrosion resistant discharge valve is without dead space design. solids / liquid material can be easily released from below.
6. Easily visual operation with digital speed and temperature displays.
7. Flange is used to fix stirring rod and also protect big glass mouth without crash .
8. Distillation and reflux can be carried out at the same time.
9. Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L .
10. Overall structure is beautiful, easy to operate.
Detailed Images
Product Series
Workshop
Packing and amp; Delivery
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer of lab instruments with a history of10 years.
2. How to choose suitable equipment ?
You tell us your requirements (For example: capacity, temperature range, pressure,
etc ), we will recommend you the best suitable equipment.
3. What’s the size do you have?
We can offer you 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 100L,150L.200L
4. How many kinds of your glass reactor?
Three types: Single lined , Double lined ,Triple lined Explosion proof is available
5. What’s the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the
PTFE stirring bar can withstand about 200 degree centigrade
6. What’s the heating mode of single layer glass reactor?
oil/water bath heating, and heating mantle.
7. Can you offer the supporting facilities?
Yes, we can offer you the vacuum pump, heating and cooling system as you
demand.
8. What’s the minimum order quantity?
One set
9. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be
discussed during the deal.
10. How will you delivery these goods? What is the delivery time ?
By Air, By Courier or Express (DHL,UPS,FEDEX and TNT ), By Sea .Goods will be sent within 7-
10days after receiving your payment
11. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
