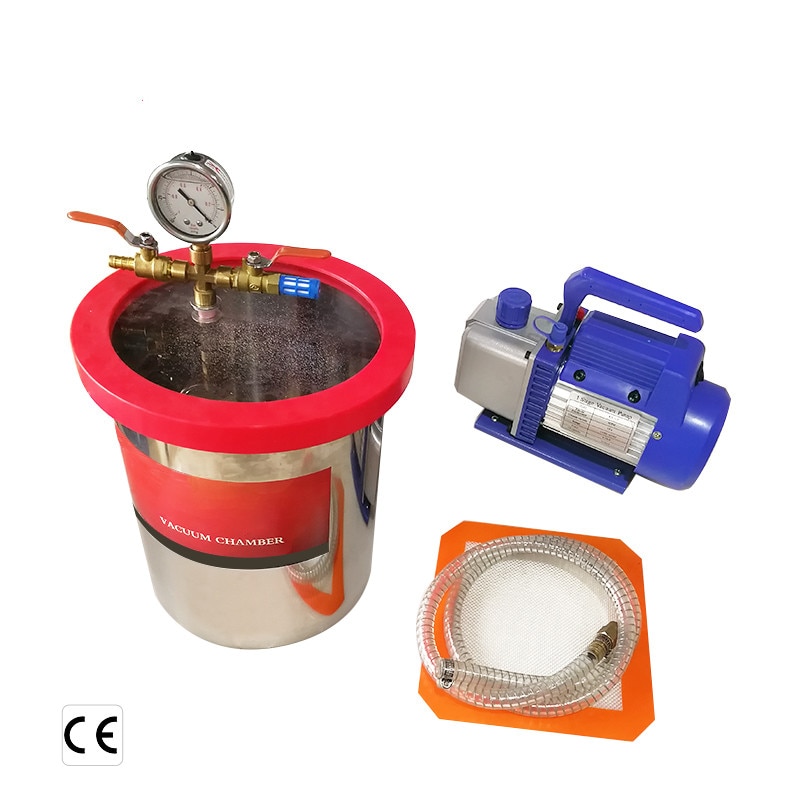

24L Vacuum chamber 6 gallon Stainless steel with 9cfm/12cfm Rotary vane Vacuum Pump Defoaming barrel for epoxy resin AB glue

SALE 8% OFF

24L Vacuum chamber 6 gallon Stainless steel  with 9cfm/12cfm Rotary vane Vacuum Pump Defoaming barrel for epoxy resin AB glue

6 Gal  vacuum chamber +  Vacuum pump 9cfm  RS-4 /  12cfm  2RS-4


Features:

1. The stainless steel chamber with welding handle can maintain airtightness for a long time. (After long-term operation, a typical through-hole handle may cause leakage)

2. The top of our chamber has a rounded edge to protect the silicone gasket.

3. The vacuum gauge is assembled on a separate port, so the reading remains accurate even when pumping/venting the chamber.

4. All kits have to go through a 24 hour vacuum test before packaging. (24-hour leakage is less than 2.0 inches of mercury)

5. Double-sided reversible vacuum gasket, with better durability and reliability.

6. The gasket is chemically resistant to butane and other solvents.

7. Sturdy food-grade silicone vacuum hose can be easily connected/disconnected from the pump/chamber.

8. Easy to install and low maintenance cost: the cabinet can be assembled in 5 minutes.


Basic Information
  •  Barrel body: Stainless steel
  •  Lid Cover: Acrylic
  •  Vacuum gasket: silicone, butane and other solvents.
  •  Vacuum gauge assembly: accuracy is 0.5 inHg.
  •  Valve assembly: high quality airtight brass valve with 50um filter at the exhaust port
  •  Accessory:  Vacuum hose 3.3 feet / 1 meter food grade silicone rubber hose, wall thickness 3mm (inner diameter 8mm, inner diameter 14mm)

Optional capacity
Vacuum Chamber        Diameter*Height(mm)            Liters
  2 gallon                       240*200                             9
  3 gallon                       245*270                          12
  5 gallon                       295*300                           20
  6 gallon                         300*395                          24


Vacuum Pump Specifications
Model        Stage         Voltage             Pumping rate       Ult. pressure     Power       Oil volume
RS-1         1 stage      220V/110V       2.5CFM/3.0CFM          5PA             1/4 HP         220ML
RS-1.5      1 stage      220V/110V       3.5CFM/4.0CFM          5PA             1/3HP         225ML
RS-2         1 stage      220V/110V       4.5CFM/5.0CFM          5PA             1/3HP         250ML
RS-4         1 stage      220V/110V       8.0CFM/9.0CFM          5PA             3/4HP         300ML
2RS-4        2-stages     220V/110V       10CFM/12CFM          5PA              1 HP           550ML


24L Vacuum chamber 6 gallon Stainless steel  with 9cfm/12cfm Rotary vane Vacuum Pump Defoaming barrel for epoxy resin AB glue
