SALE 9% OFF

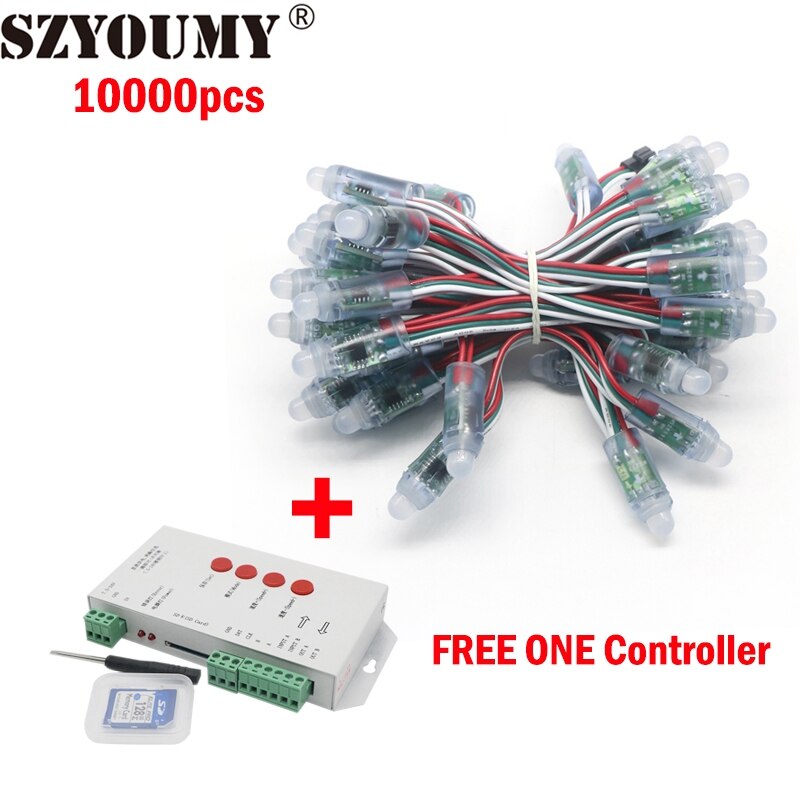

SZYOUMY 10000pcs 12mm WS2811 1903 IC RGB Led Module String Waterproof DC5V Digital Full Color LED Pixel Light Free Controller
1.led pixel module is 12mm diameter ,DC5V power ,50 pieces per strand.
2.RGB pixels are digitallycontrollable lights you can set to any color, or animate. Each RGB
LED and controller chip is molded into a ‘dot’ of silicone. The dots are waterproof and rugged.
3.The pixels use 8mm diffused RGB LEDs, with a 120 degree beam width. The total max
brightness of all LEDs is about 1600mcd but with the light more evenly distributed and amp; mixed
than a clear LED.
Specifications for led pixel module
Category Exposed LED Light
Model EX-12MM
Dimenstion(mm) Ø12*36
Hole Dimension(mm) Ø12±0.1mm
Net Weight(g) 7
Material Covered by transparent resin.
Waterproof Yes
Exterior Color Transparent
Input Voltage(V) DC 5V
Input Power(W) 0.1
Led Driver External
Dimmable No
Beam Angle(°) 120
Emitting Color 2811 /1903 full color
Lifetime(Hour) 50,000Hours
Light Source DIP LED 1pcs
Ambient temperature(°C) -40~+60
T-1000S System Features:
1.32 level -65536 level dim control, software Gamma correction.
2. The controller is single port output. It can load 2048 diodes..
3. T-1000S can store up 16 files at most. Just copy the files sequentially to the SD card and name the files as: 00_1.led, 01_1.led, 02_1.led.
4. This product is compatible with single-wire IC and amp; double-wires IC. When control single-wire IC chips, simply connect the DAT and GND of the controller to the DAT and GND of the LED light. When control double-wires IC chips, please connect the DAT and amp;CLK and GND of the controller to the DAT, and amp;CLK and GND of the light.
5. When using a differential signal (485), please connect the output signal A and B of the controller to the signal line A (DAT +) and the signal line B (DAT-) of the lighting fixture.
6. If the required voltage of the controller and the LED light is the same, you may use the same power adapter. If the required voltage of the controller and the LED light is different, please connect them to different power supplies.
7. When editing program of new effect with the software, please choose Control Model: T-1000-IC models
8. T-1000S have to work with LedEdit2012. Old version software doesn`t support this controller
Memory card:type:SD card Capacity:128MB
Store file:*.led
Physical parameters:
Working temperature :-30-85degree celsius
Working voltage:DC5V / DC7.5-24V
Working power:2W
Weight:0.3kg
Size:L165mm×W80mm×H30mm
Signal port:3pin connect port
Package List:
T-1000S Controller* 1piece
SD Card* 1piece
1. Outdoor / Indoor Use billboards, and any letter you want.
2. Cove Lighting
3. Path and contour lighting
4. Backlight for signage / letters
5. Architectural lights for Canopy, Corridor, Window, Archwa
6. DIY Lights for home use
7. Marine light
8. Task lighting
9. Replacement of Fluorescent light
10. Decorative lights for holiday, event, show, exhibition
Note: We will send 2 free controller without batteries
Our main products is led strip light,led tube,led bulb,led spotlight,led downlight led floodlight Lighbay lights,and so on .The product has achieved CE, ROHS Factory directly offer a competitive price with Good Quality. We provide 2 years warranty for all of our products. Welcome any partner from worldwide regarding LED lights or energy-saving projects in your location,pls do not hesitate to contact us ,we will try our best to help you , You are warmly welcome to visit us !
1. Reply our Emails within 24 hours when we got your email,
2. Experienced marketing team give perfect answers to all your questions by heart.
3.Customized design is available. OEM and amp;ODM are welcomed.
4. Exclusive and unique solution would be provided by our well-trained and amp; professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.
Q1:What is the warranty for the LED products?
A1:For the leds,we have 2 years warranty.And some special offer with 5 years warranty as customers request.
Q2:What is color temperature?
A2:Shenzhen You and amp;my Electronic Technology Co.ltds LED Lighting ofter Led lights in warm, natural,pure and cool white with colour temperatures measured in Kelvin(K). The lower the colour temperature is the warmer the light given by the LED:
Warm white =2700-3200k
Natural white=4000-4500k
Pure white=5000-5500k
Cool white=6000-6500k
Q3:What is CRI?
A3:CRI is a figure which feedback real objects colors.Highter GRI with highter cost.For LED tubes,the CRI is highter than 80. For the outdoor light,the CRI highter than 70 is OK at most of applications.
Q4:What is the AC Voltage tolerance for our LEDS?
A4:Their AC voltage tolerance is +/- 10%.
Q5:Is there cheap shipping cost import to our country?
A5:For small order,express will be best(4-5 working days by DHL/FED/UPS) And for bulk order,sea ship way is best but take longer time(about 3 weeks).For urgent orders,we suggest via air to airport plus our ship partner send to your door(one week time).
Q6: Could you offer OEM led light.
A6:Yes, we offer OEM led light.the OEM leds could offer your customized laber and your color box.
Q7: About Import value and remote fee duty?
A7:1 If you have the request for the declared value, Please tell us the declared value in package, Import duties,taxes and charges are not included in the item price or shipping charges.These charges are the buyers` responsibility.
2.There is additional fee FOR some remote area , hope you can kindly pay it. Otherwise We will reduce the product quantity to balance our cost. And You can check it at DHL website before your purchase. (this policy just refers to DHL free shipping order)
