RGB LED Board LED Lights Built-in Full Color-driven Development Board Built-in Full-color Driver LED Lights Development Board
Features:
1.The control circuit and RGB chip are integrated into a 5050 package component to form a complete external control pixel point.
2.Built-in signal shaping circuit, any pixel point receives the signal and then outputs it after waveform shaping, so as to ensure that the waveform distortion of the line will not accumulate.
3.The includes power-on reset and power-down reset circuits.
4.The three primary colors of each pixel point can realize 256 levels of brightness display, complete 16777216 colors of full true color display, and the scanning frequency is not less than 400Hz/s.
5.Serial cascade interface can receive and decode data through one signal line.
6.There is no need to add any circuit when the transmission distance of any two-point transmission does not exceed 5 meters.
7.When the refresh rate is 30 frames per second, the number of cascades is not less than 1024 points.
8.The data transmission speed can reach 800Kbps.
9.The colors of light are highly consistent.
10.It is applied to LED full-color luminous character lamp string, LED full-color module, LED full-color soft lamp bar, hard lamp bar and LED guardrail tube.

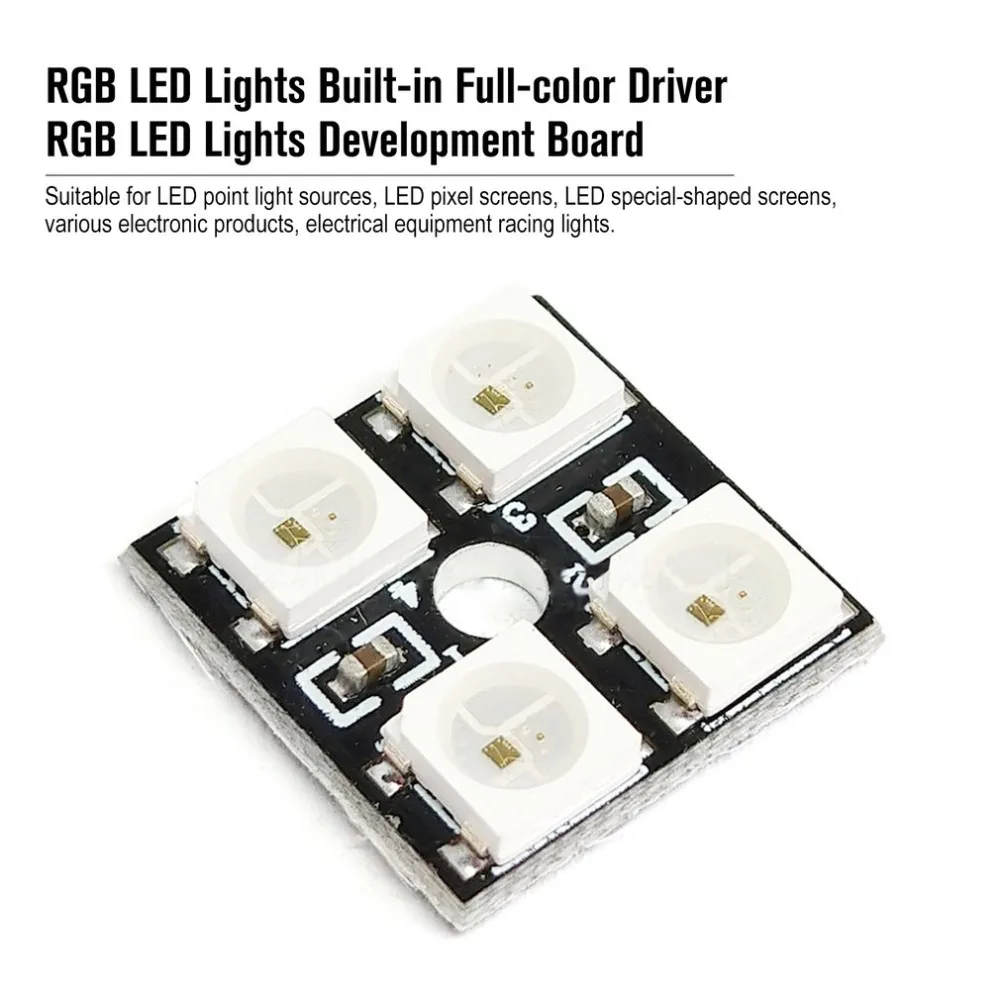

11.Suitable for LED point light sources, LED pixel screens, LED special-shaped screens, various electronic products, electrical equipment racing lights.
Description:
1.Intelligent reverse connection protection, power reverse connection will not damage IC.
2.The IC control circuit shares a power supply with the LED point light source.
Specifications:
Product Name: LED Lights Development Board

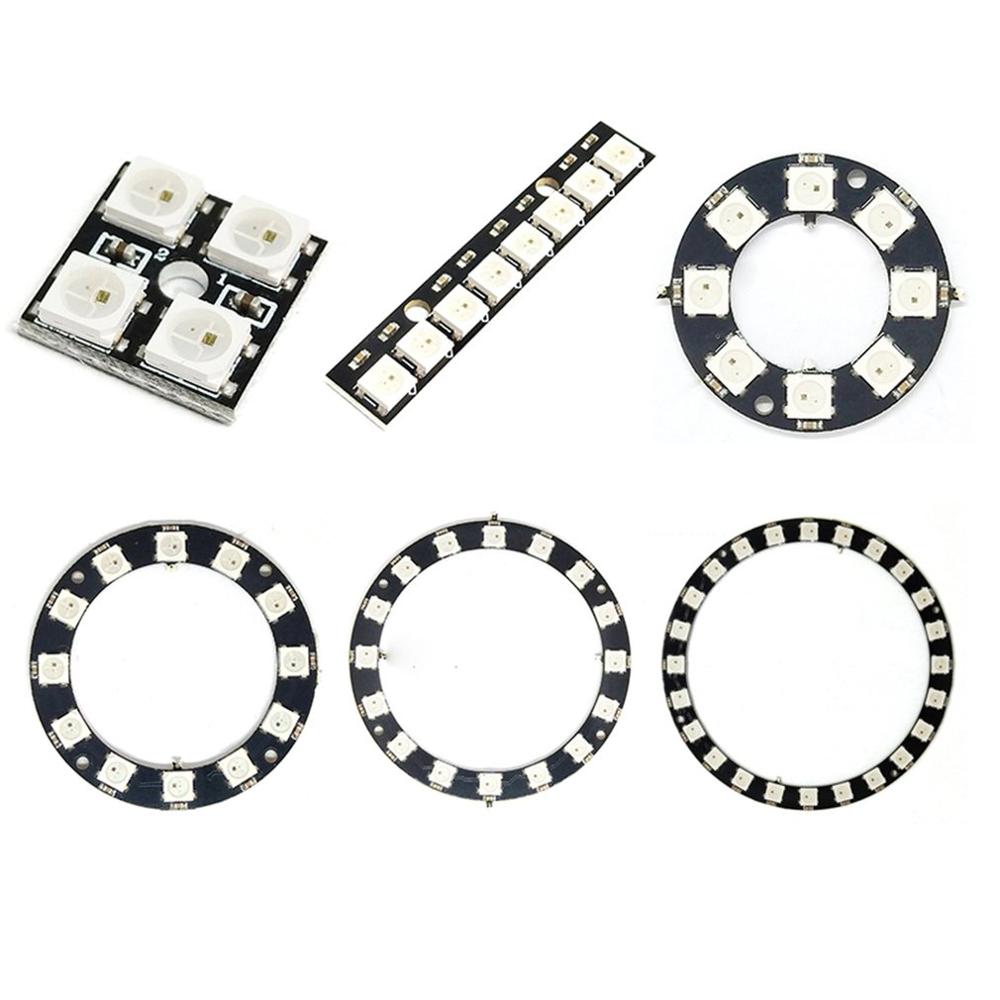

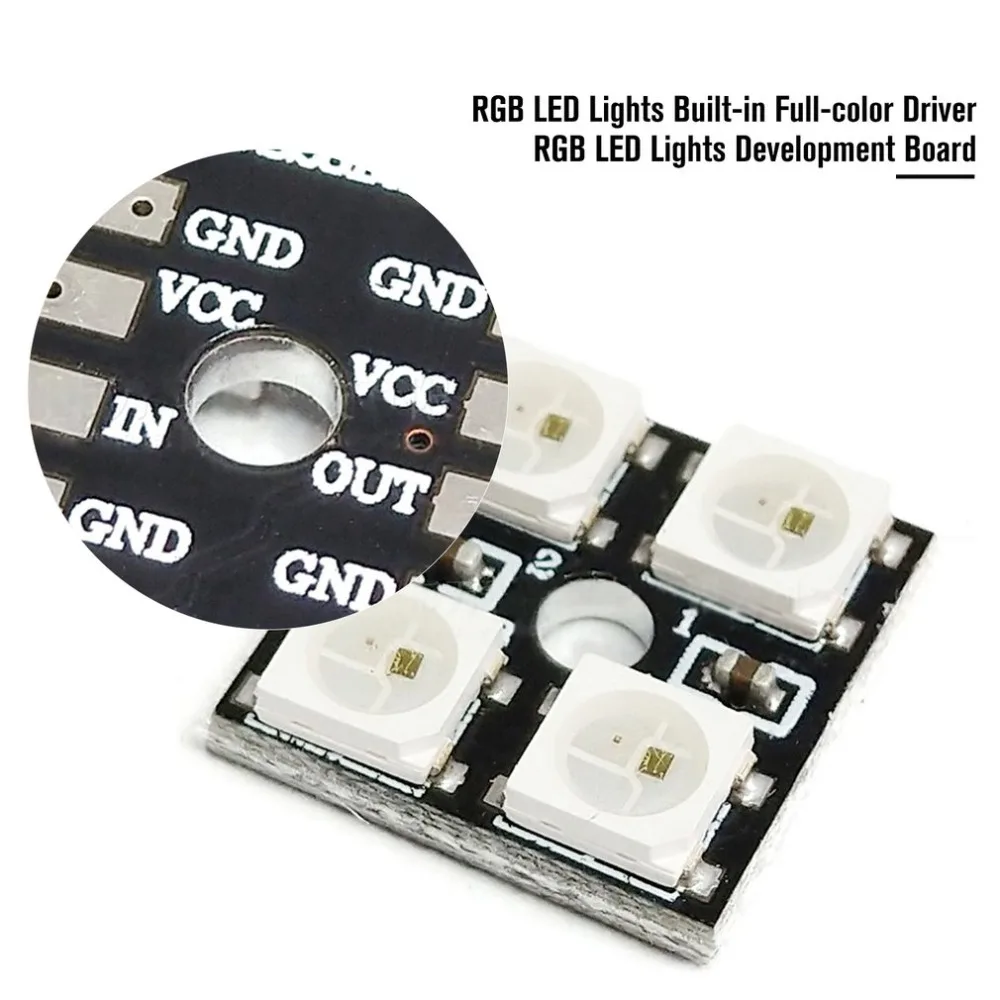

Type (Optional): 4-bit RGB LED Square Board/8-bit 5050 RGB LED Straight Board/8-bit 5050 RGB LED Circular Board/12-bit 5050 RGB LED Circular Board/16-bit 5050 RGB LED Circular Board/24-bit 5050 RGB LED Circular Board
Material: PCB and amp;Metal
Color: Black and amp;White

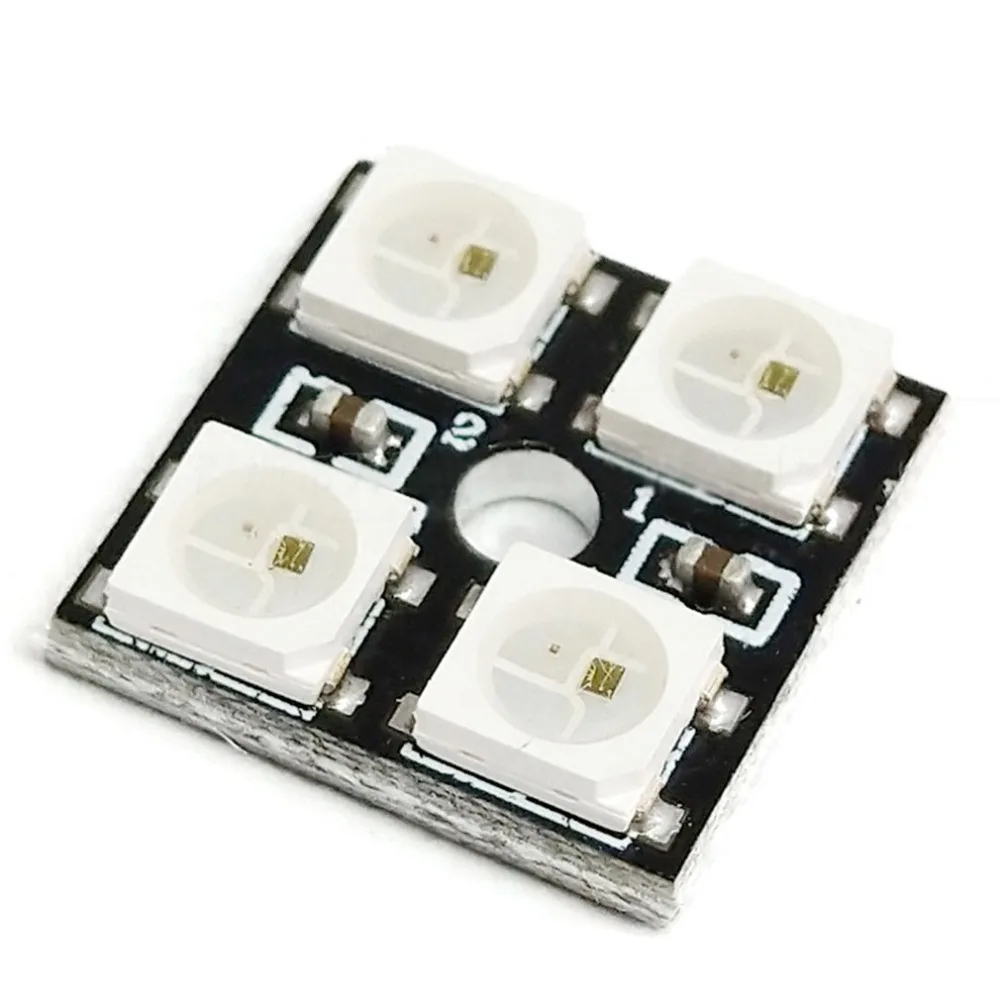

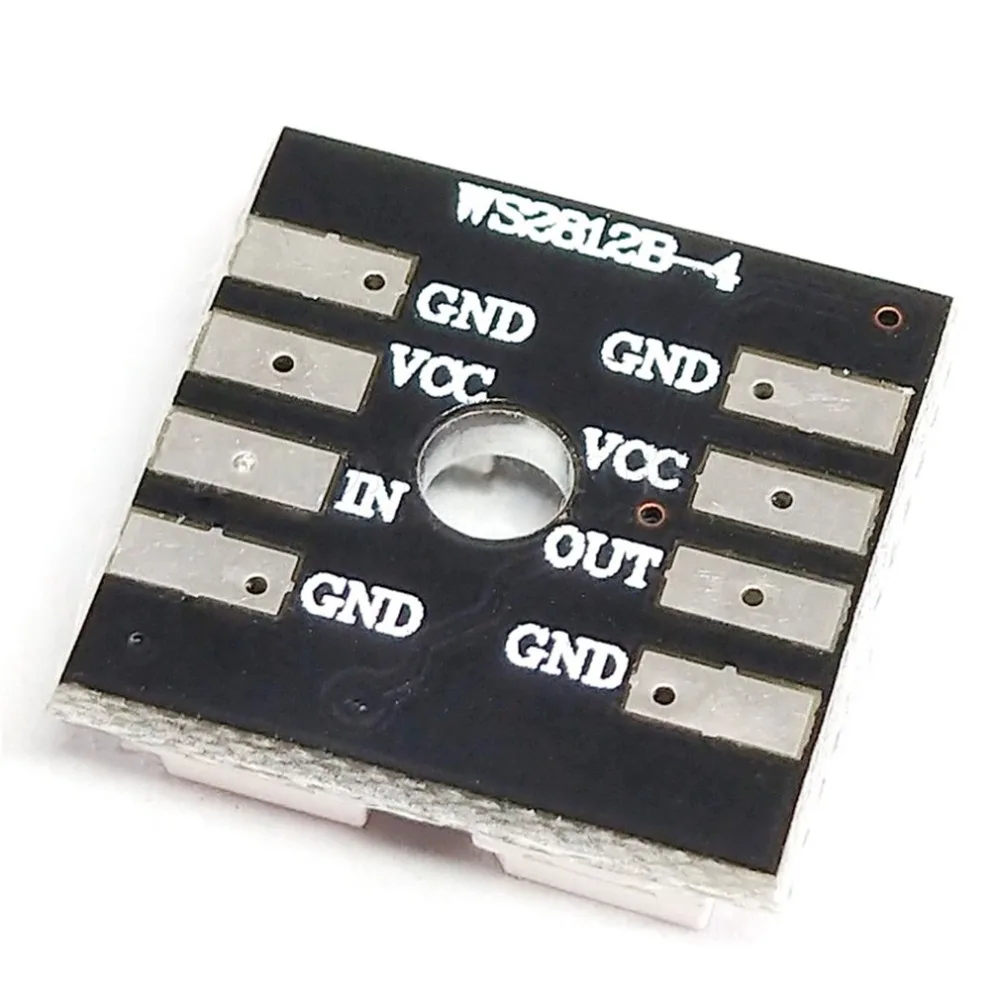

Size: 4-bit RGB LED: 15x15mm/0.59×0.59in; 8-bit 5050 RGB LED Straight Board: 62x12mm/2.44×0.47in, 8-bit 5050 RGB LED Circular Board Diameter: 32mm/1.26in, 12-bit 5050 RGB LED Diameter: 50mm/1.97in; 16-bit 5050 RGB LED Diameter: 70mm/2.76in, 24-bit 5050 RGB LED: Outer Diameter: 65mm/2.56in, Inner Diameter: 55mm/2.17in

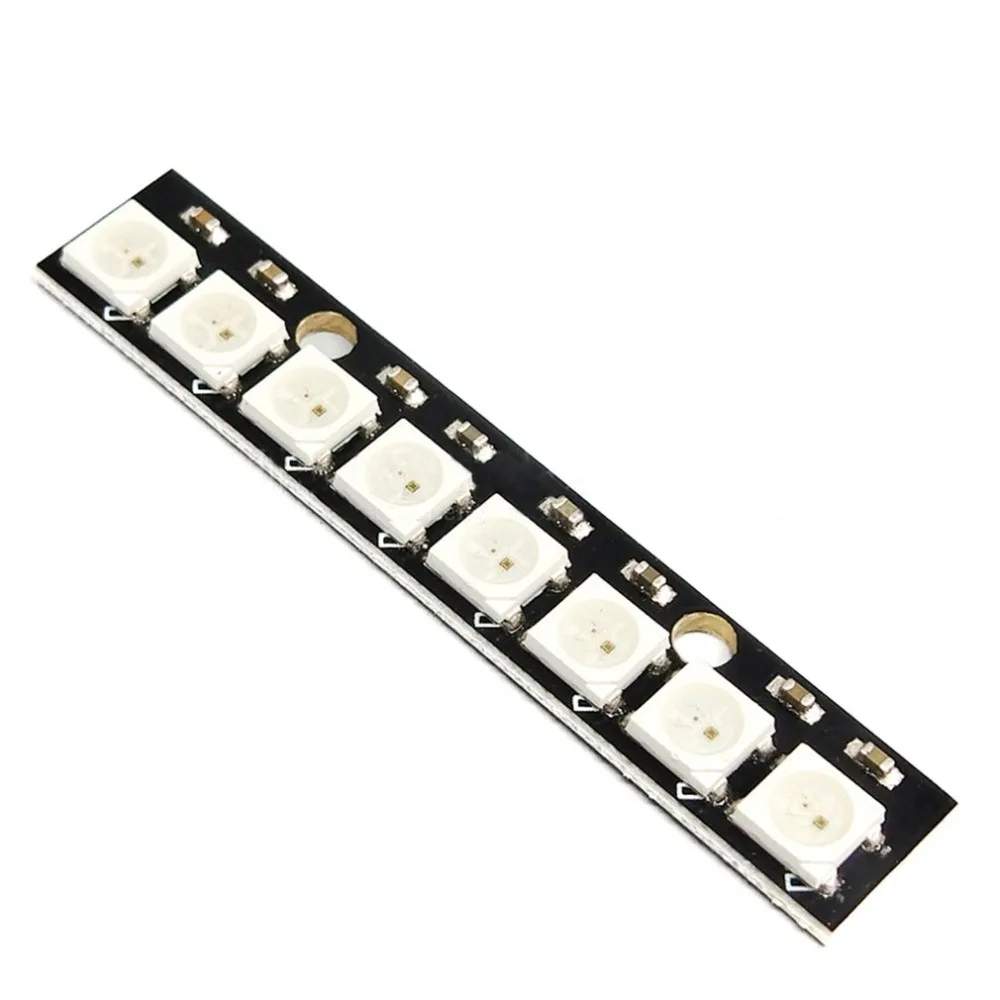

8-bit 5050 RGB LED Straight Board:
Chip: WS2811 (built-in LED)
LED: 5050 package RGB full color highlighting * 8
Voltage: 5V
Port: Digital
Platform: Arduino MCU

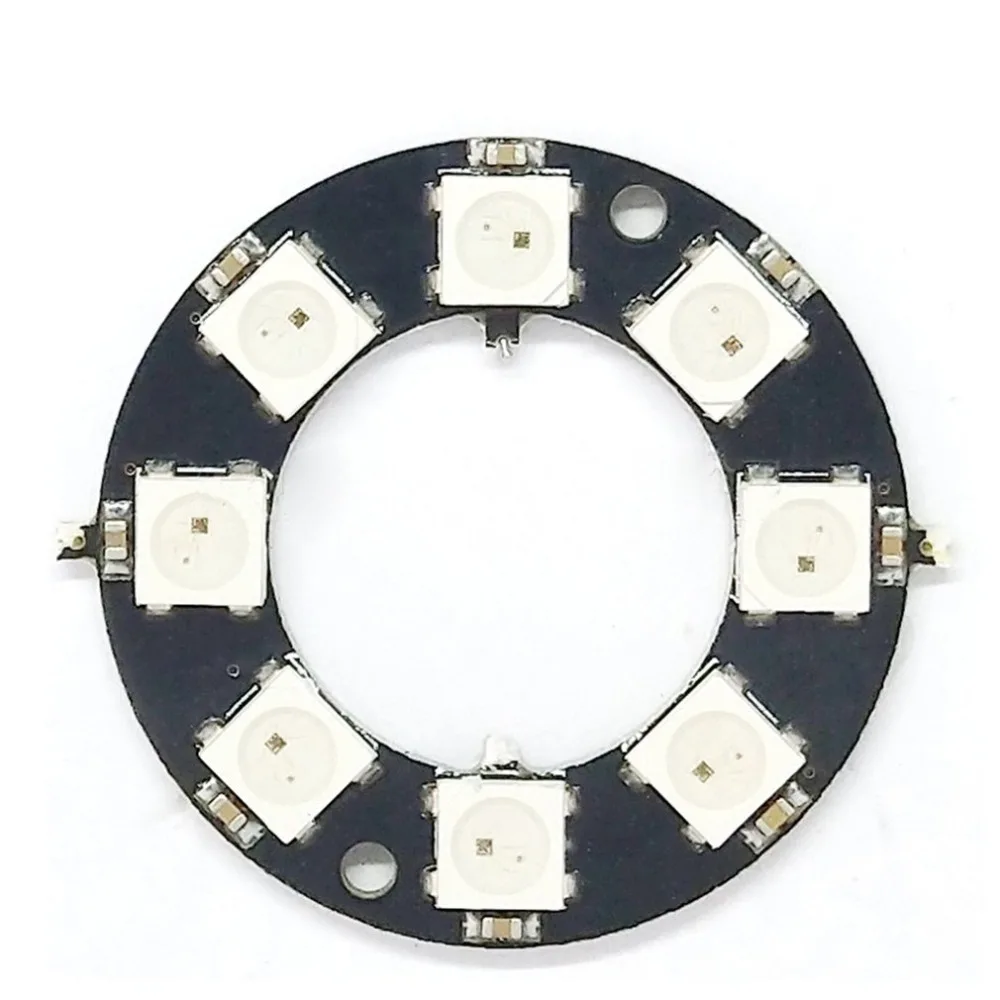

8-bit 5050 RGB LED Circular Board:
Weight: 6g/0.21oz
Voltage: DC4-7V Range Power Supply
Communication Interface: Single Wire Communication
LED Driver Chip: WS2812 (Integrated in LED)

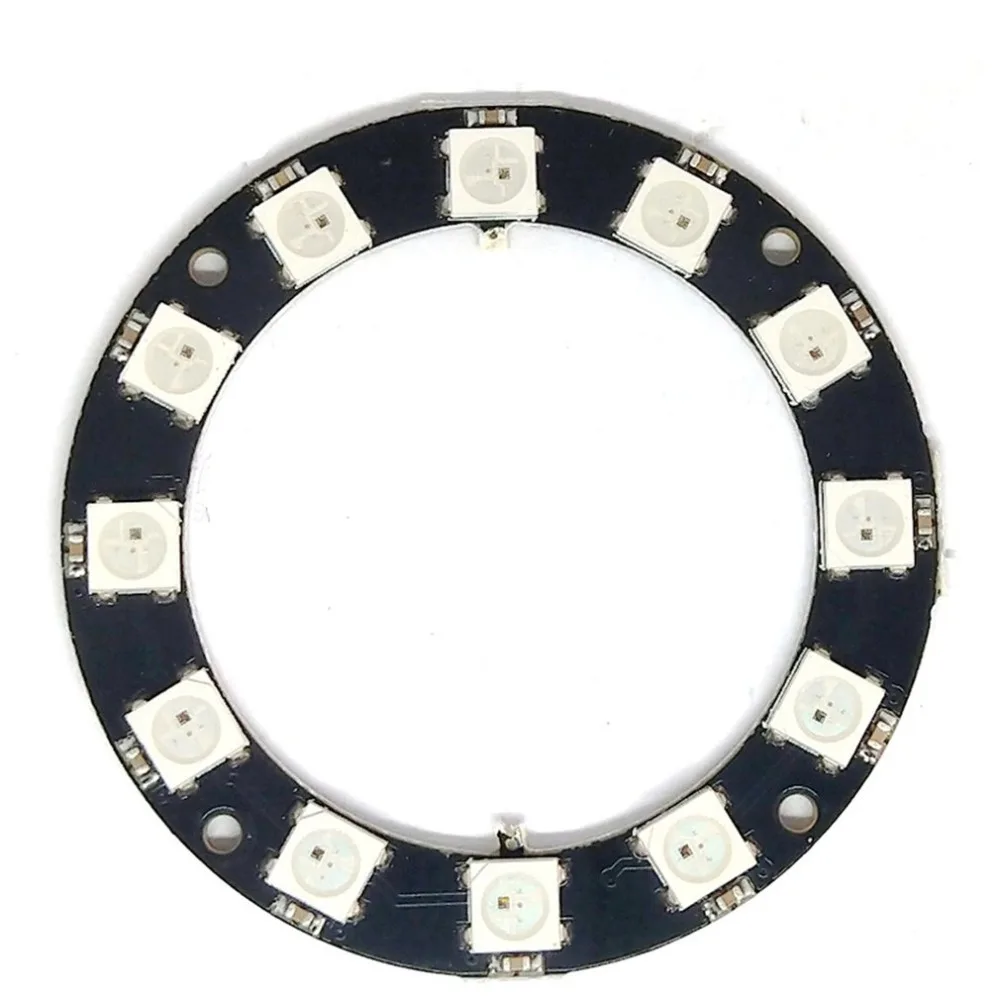

12-bit 5050 RGB LED Circular Board:
Weight: 6g/0.21oz
Voltage: DC4-7V Range Power Supply
Communication Interface: Single Wire Communication
LED driver chip WS2812 (Integrated in LED)

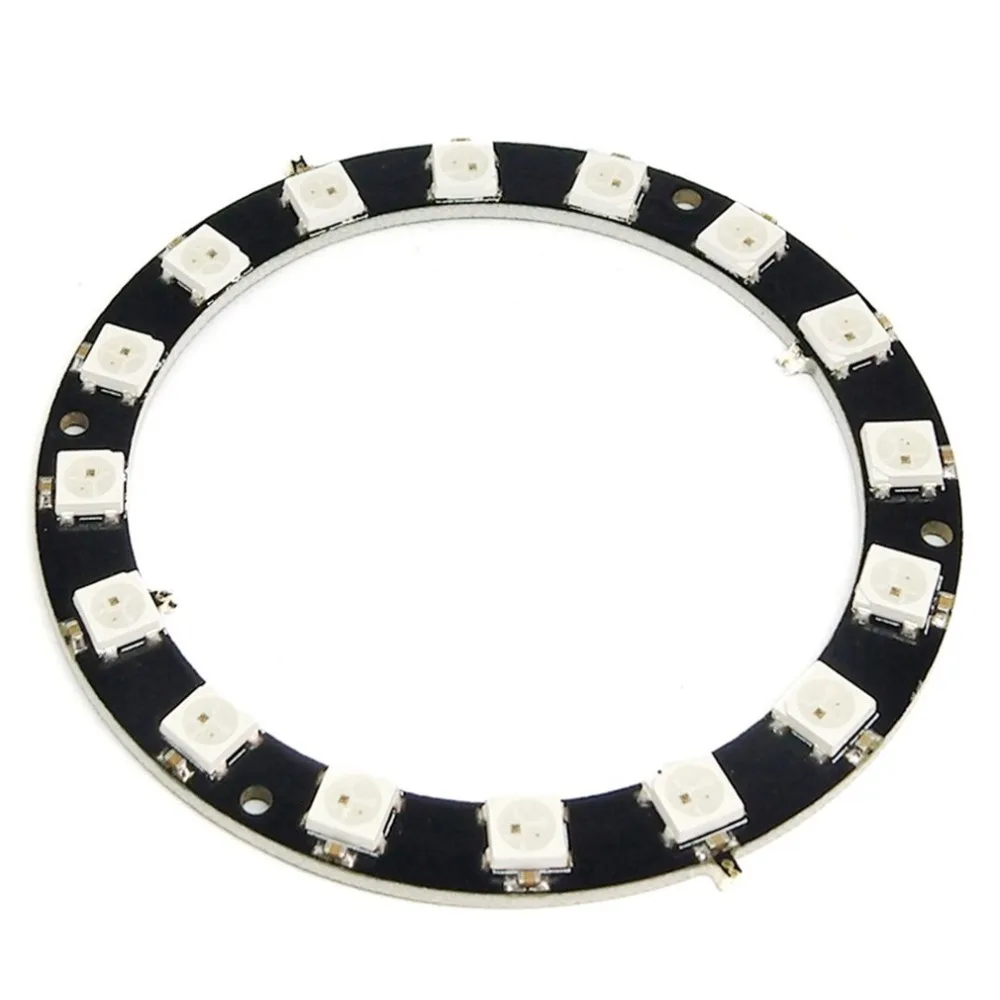

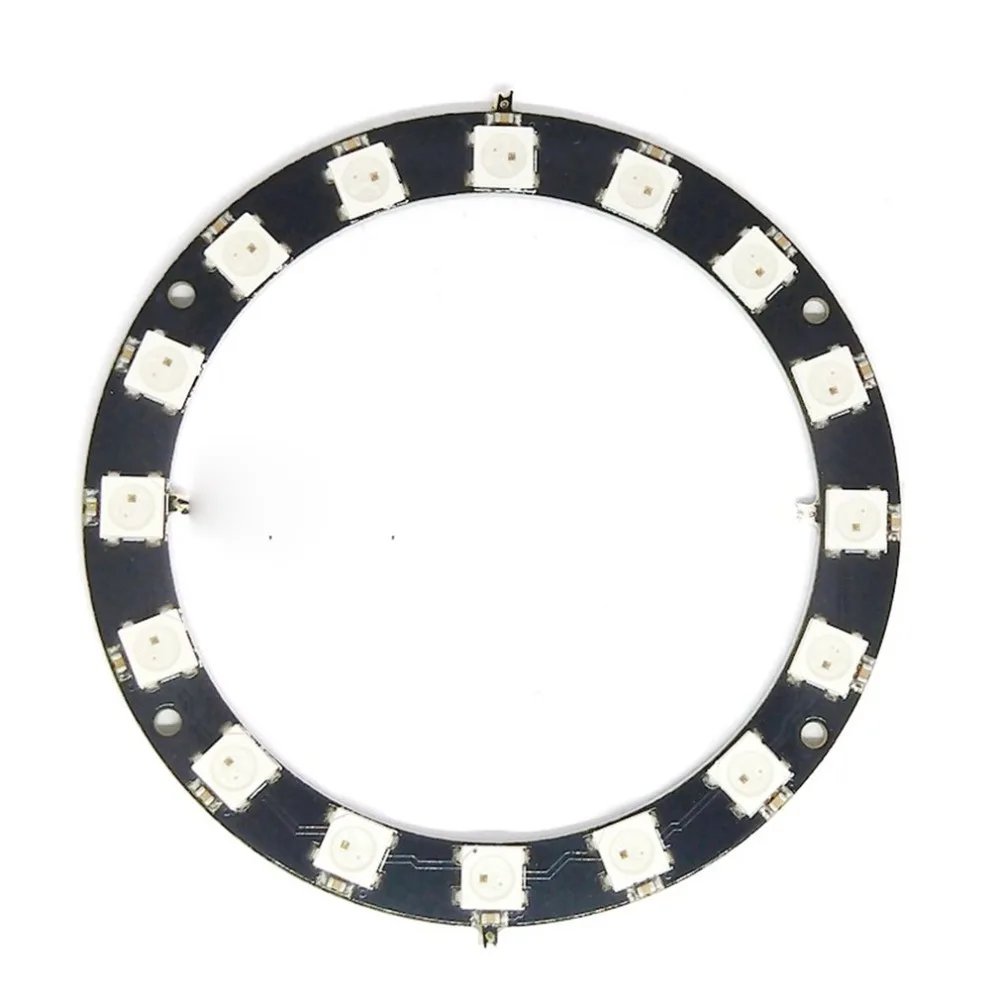

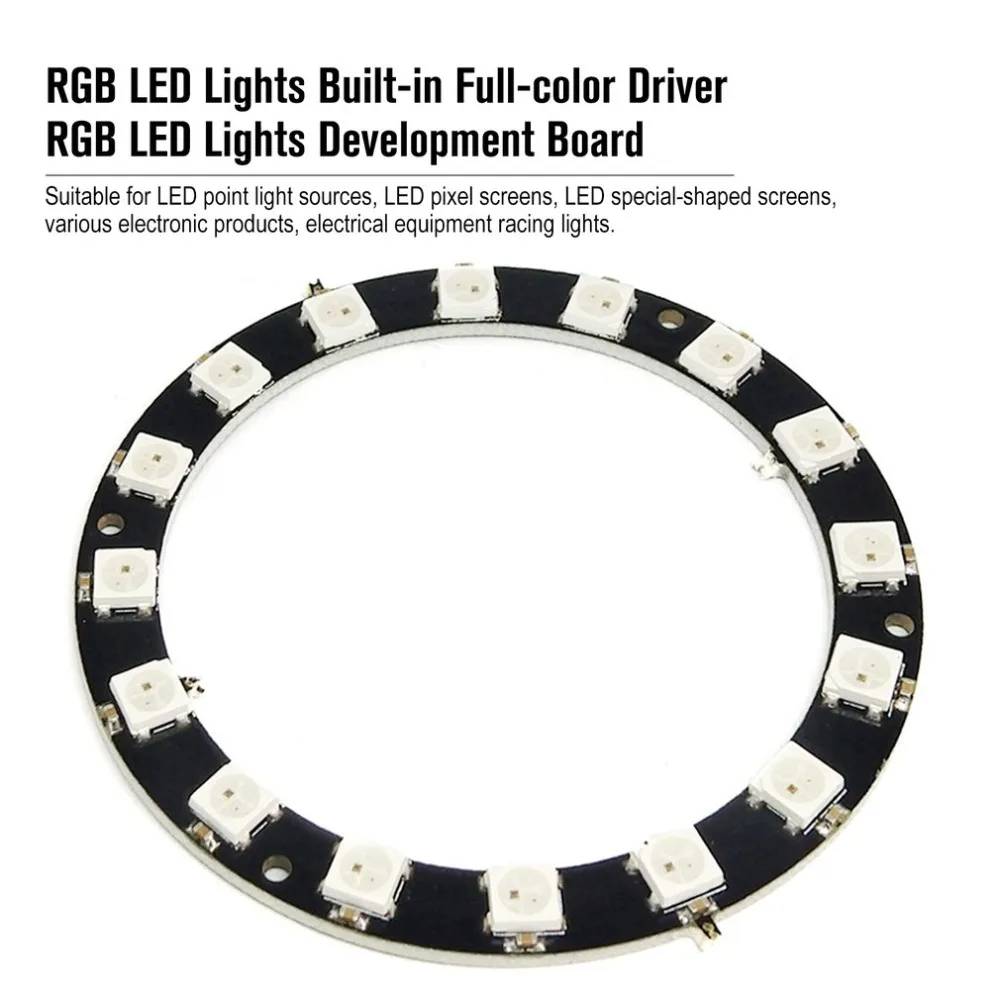

16-bit 5050 RGB LED Circular Board:
Chip: WS2812B (built into LED)
LED: 5050 Package R G B Full Color Highlight
Voltage: 5V
Port: Digital
Platform: SCM (provides Arduino +51 SCM Test Routines!)
Control Method: Built-in Control Chip, Only One I0 Port Can Control

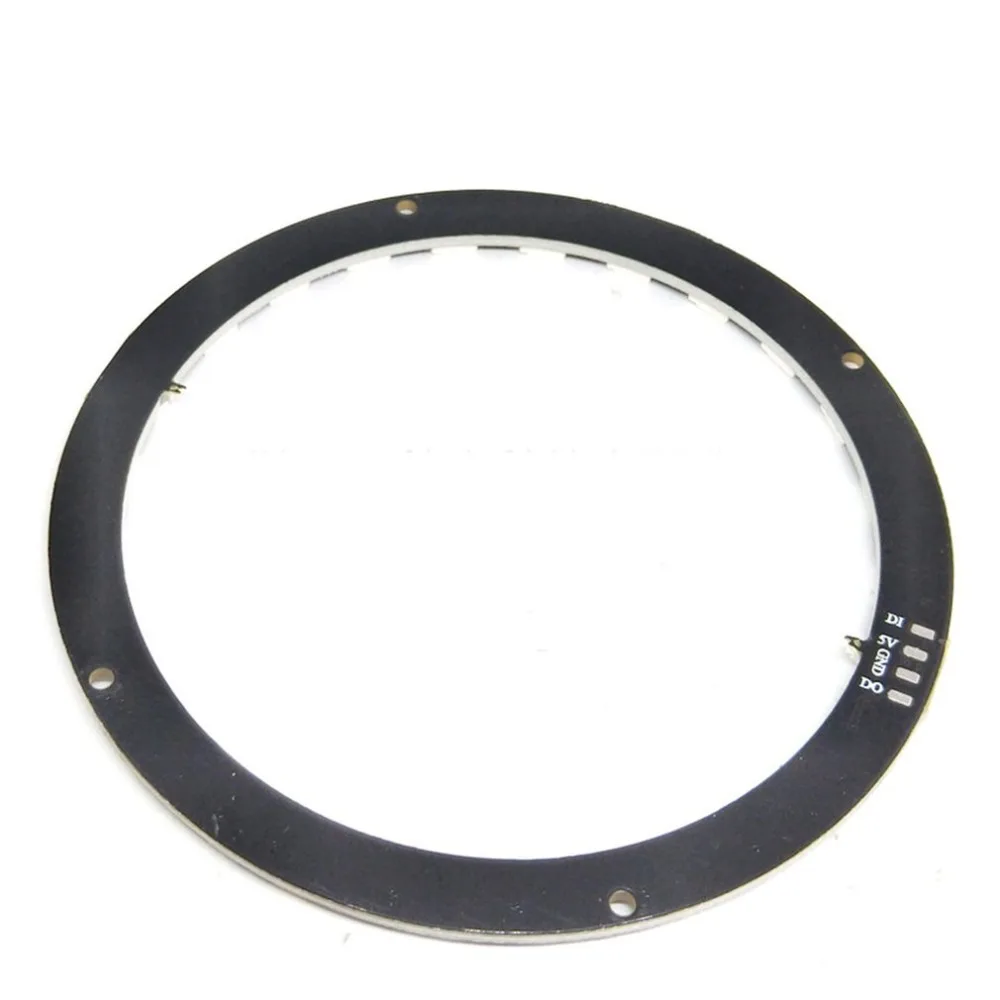

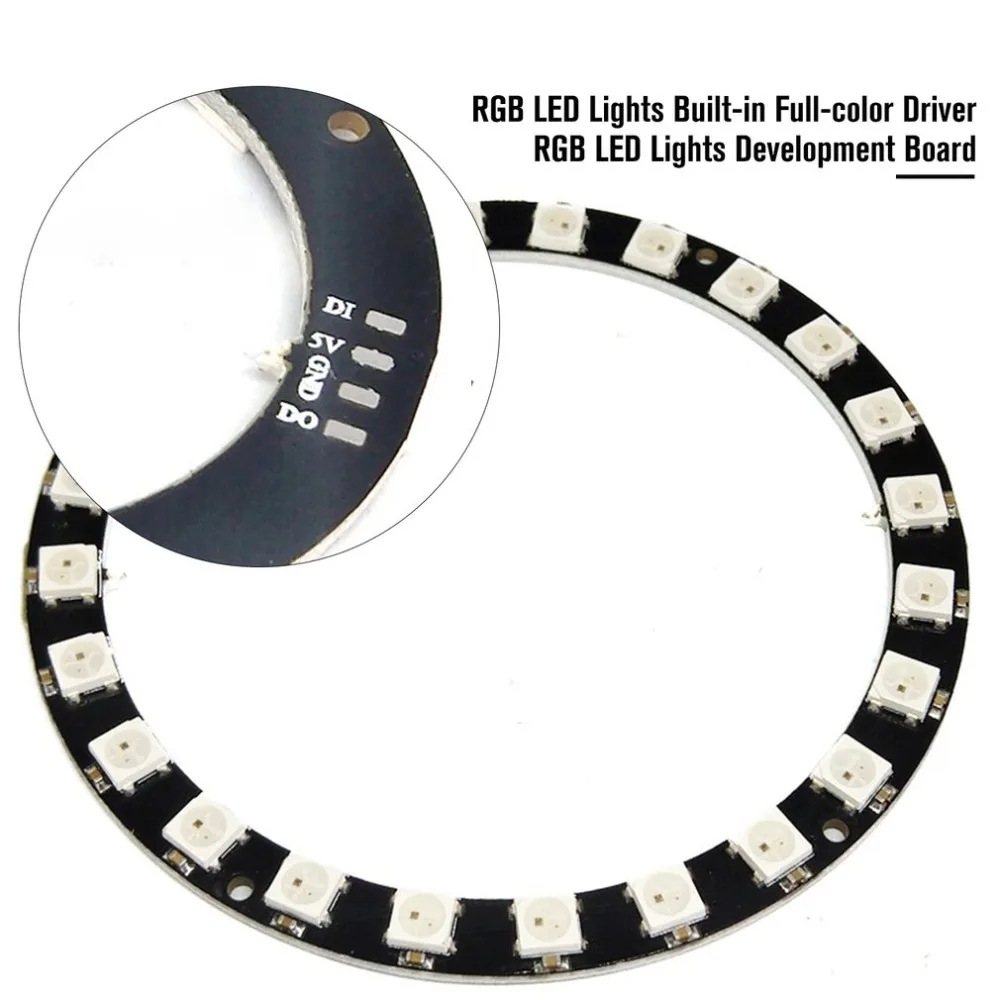

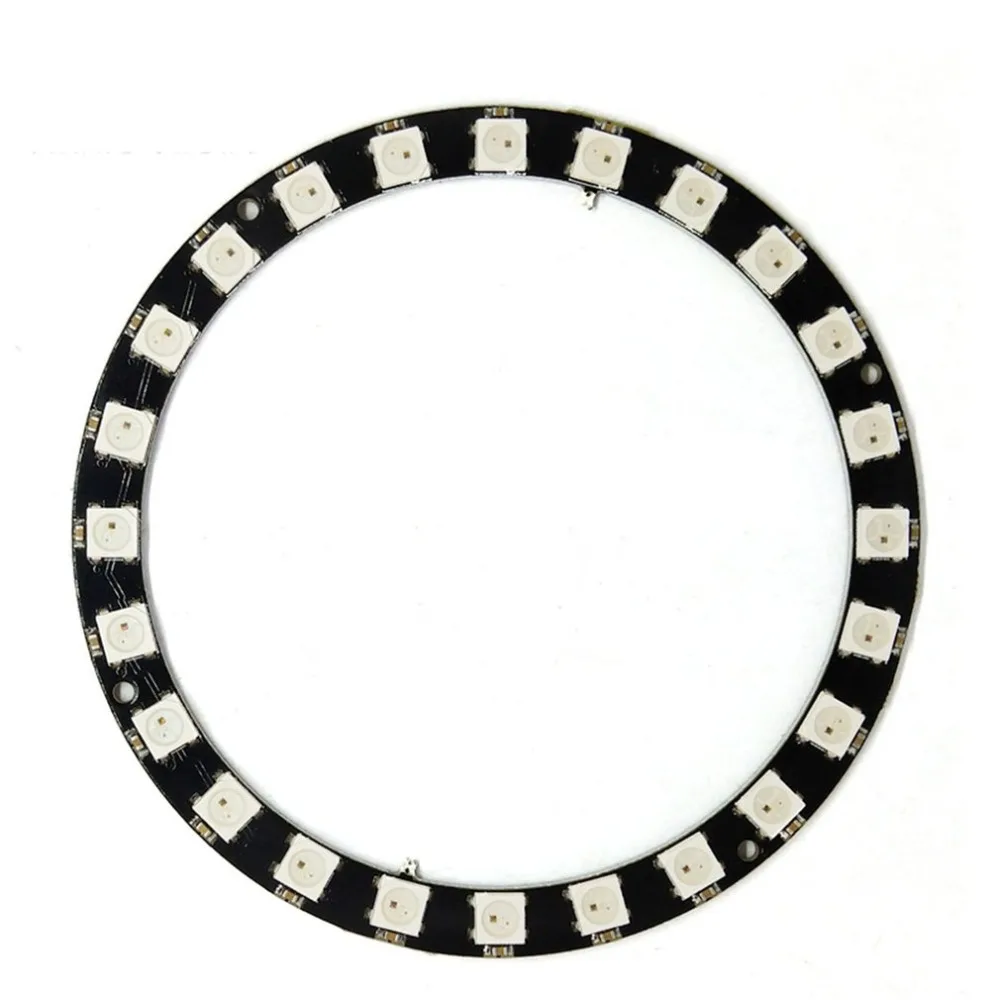

24-bit 5050 RGB LED Circular Board:
Chip: WS2811 (built-in LED)
LED: 5050 Package RGB Full Color Highlighting
Voltage: 5V
Port: Digital
Platform: Arduino MCU
Control Mode: Built-in Control Chip, Only One I0 Port Can Control
Package Informations:
Package Size: 70x70x20mm/2.76×2.76×0.98in
Package Weight: 25g/0.88oz
General Package
Package Included:
1 x LED Lights Development Board
