1 artnet Output Port , 4 opto-isolated DMX ports
The number of channels: can be extended to 6144 DMX channels
RDM two-way communication: Support physical port RDM and Art-net network RDM
Control light position: 1200
Material and grouping: can store 3000 materials and 990 light groups
Built-in graphics effects: Built-in classification of general purpose and dedicated channel graphics internal effects, allowing self-built internal effects graphics,
providing unlimited number of graphics, multi-effects overlay operation
Graphical interface : Chinese graphic interface, support custom workspace and window, save workspace layout, window icon and font can be resized, support image naming and graffiti effect naming
Advanced Control: Built-in RGB color palette, support for custom fixture sequence, playback global and single attribute time, support for fixture overlay
Playback storage: 20 playback faders, 60 * 2 playback pages, up to 1200 playback
playback: Supports playback occupancy mode and non-occupation mode, playing up to 30 playbacks simultaneously
Number of program steps: Single playback supports up to 100 program steps
Centralized control wheel: panel with 4 centralized encoder encoder wheels
Fixture property control: Smart property paging, single computer lights support up to 512 channels
Hardware parameters: Intel Celeron 4 core CPU, 2G DDR3 1600 memory, 64G solid state drive
System: based on linux completely independent research and development software control system

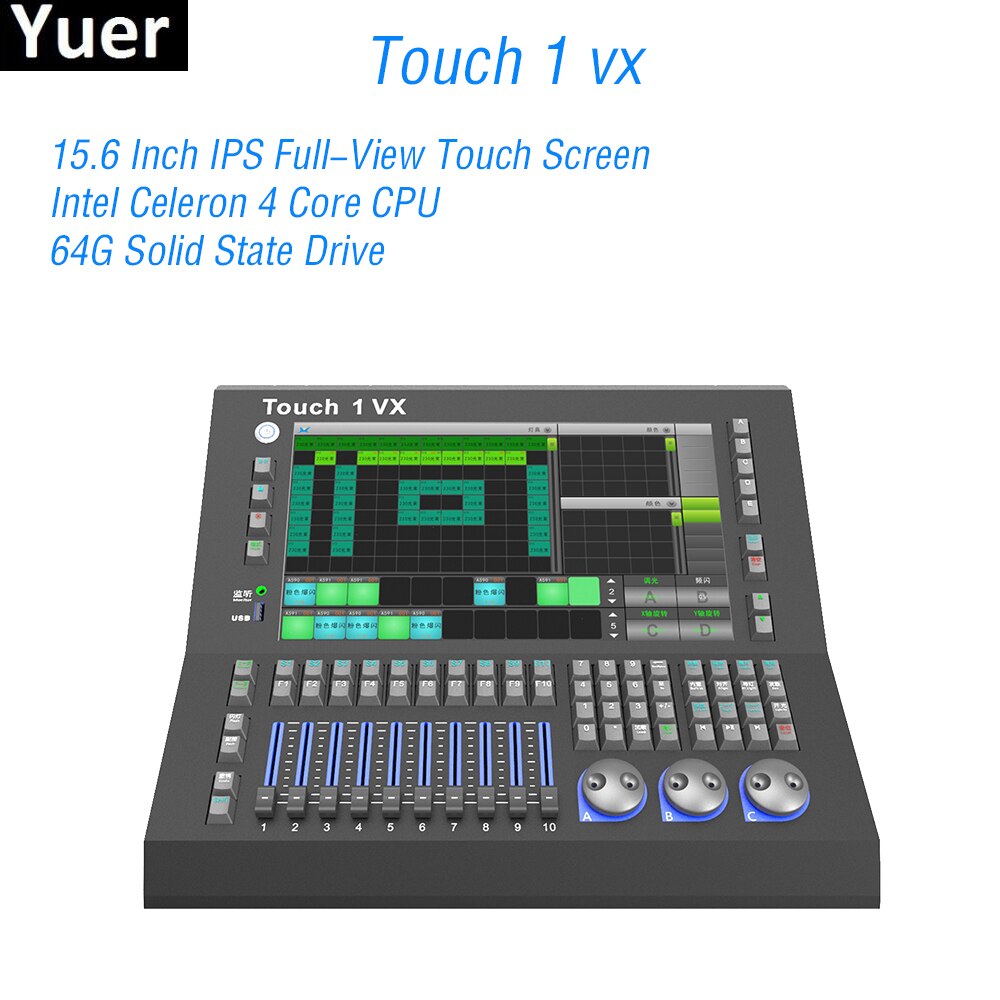

Display: 15.6 inch IPS full-view high-definition resistive touch screen, resolution 1920*1080, foldable, can be adjusted at any angle
Full backlight button and push rod design, adjustable backlight brightness
Advanced features: Support network synchronization trigger control, automatic operation
Power supply AC100-240V 50-60Hz, built-in UPS backup power supply
Size: 400*410*110mm
