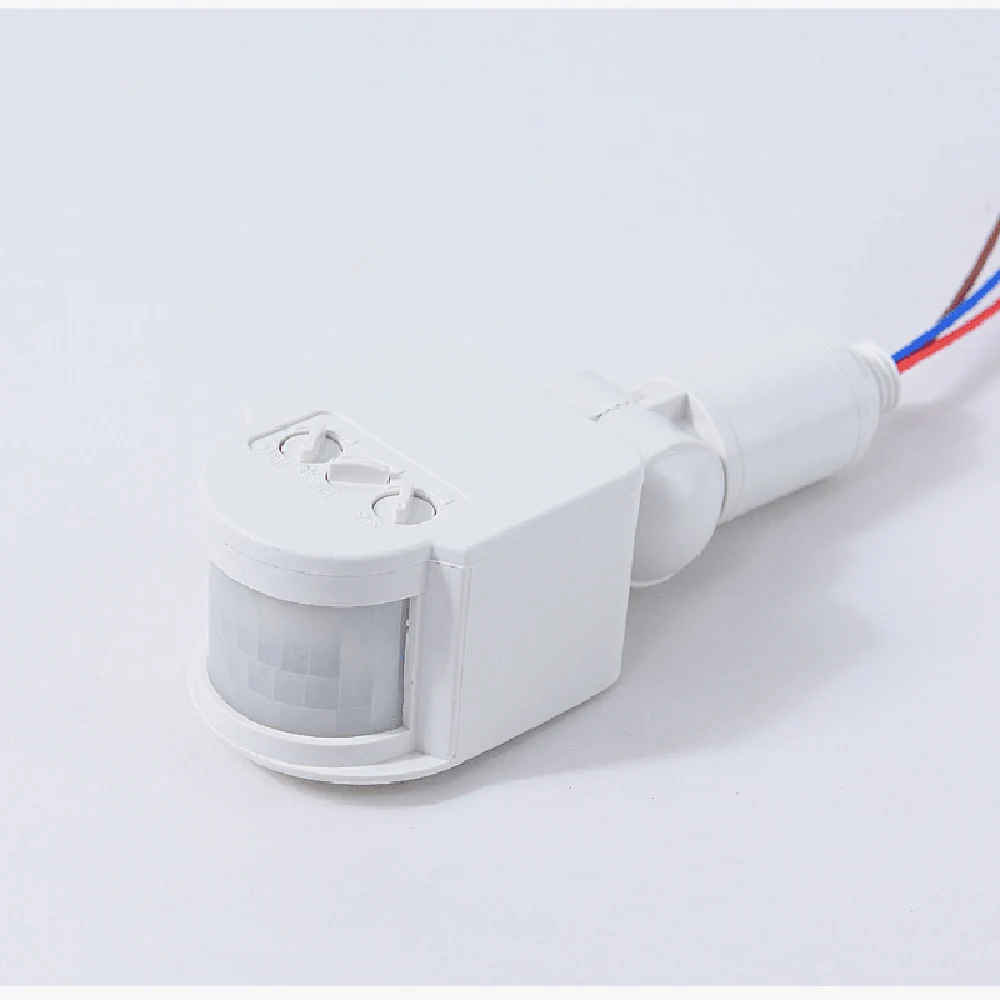

LED Motion Sensor 220V 110V Automatic Infrared 24V 12V PIR Movement Detector Wall Mount Timer Outdoor 12V Sensor Light Switch
Description:
1. The human body sensor adopts pyroelectric infrared technology, built-in human body infrared sensing module, light effect sensing module and delay switch module. It adopts industrial zone-level chip, which has large load capacity and strong anti-interference ability.
2. When the person enters the sensing range, it can be automatically turned on. When the person leaves, the time can be automatically turned off. The conventional lighting is turned off, the unmanned person is wasted, the life of the lamp is extended, and the energy saving, convenience and environmental protection are integrated.
3. It can automatically recognize day and night, and the ambient illumination of the starting work can be freely selected, so that it can work automatically at night and close during the day. Users can adjust themselves;
4. The detection distance is adjustable and can be adjusted according to the place of use;
5. The light-on time is adjustable and can be adjusted by the user according to local conditions.
Technical parameters:

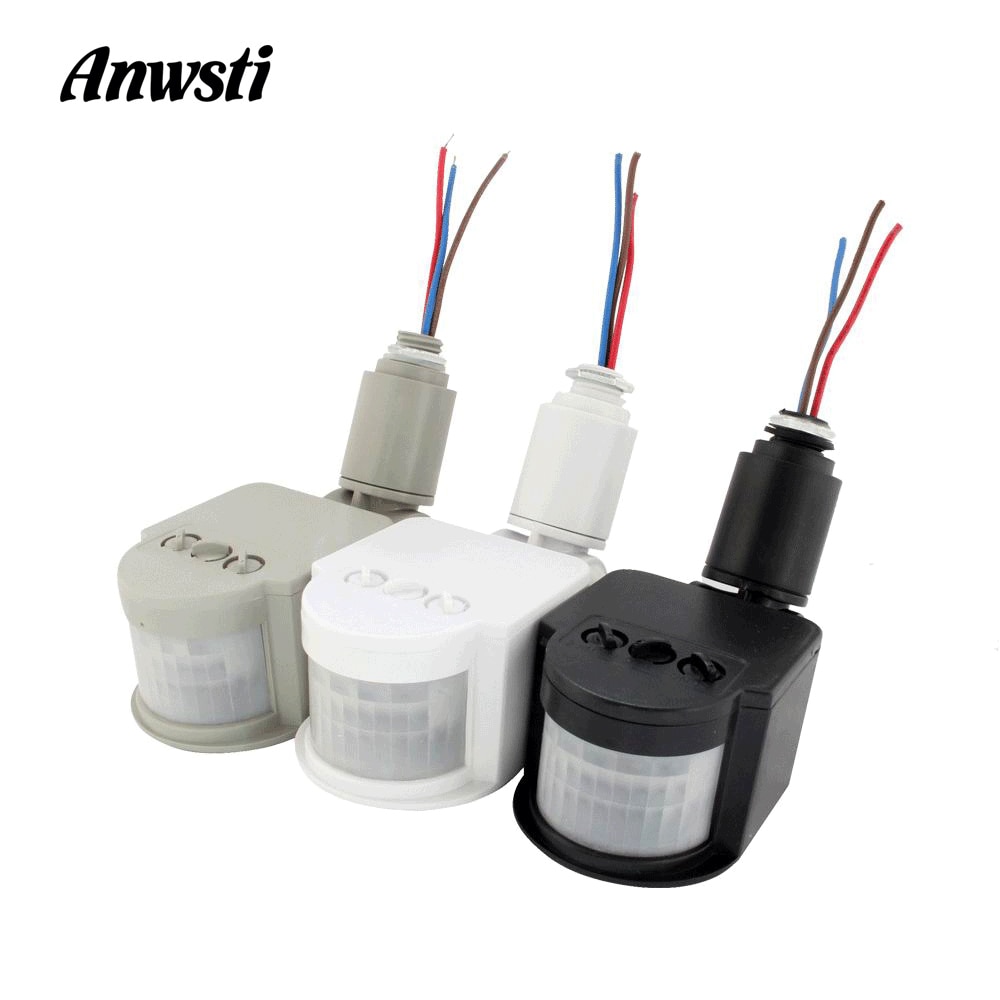

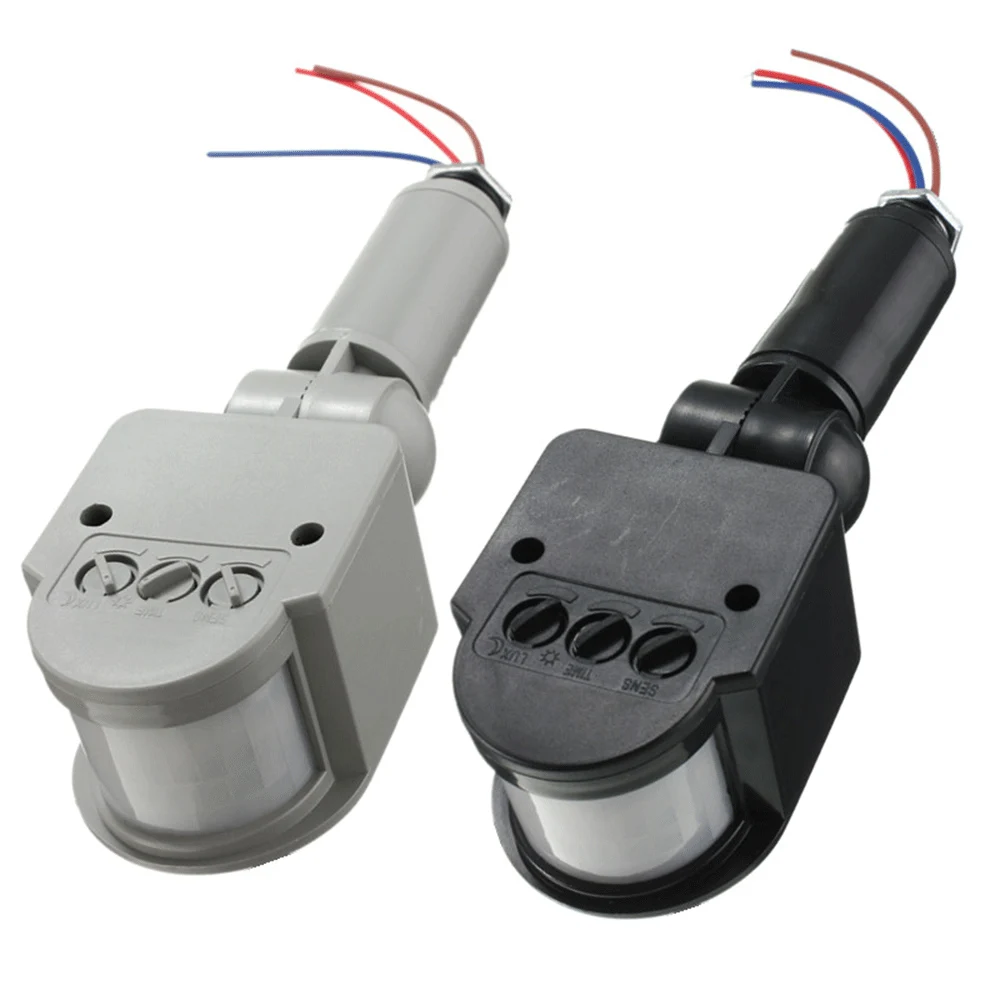

Color: black, white, gray
Detection range: 180°
Detection distance: up to 12m (25°C)
Working voltage: DC12V, DC24V, AC110-250V
Operating temperature: –10°C ~ +40°C
Operating humidity: less than 93% RH
Delay time: 5 seconds ~ 6 minutes (adjustable)
Ambient illumination: 2 ~ 2000LUX (adjustable)
Installation height: 1.8m ~ 2.5m
Material: ABS

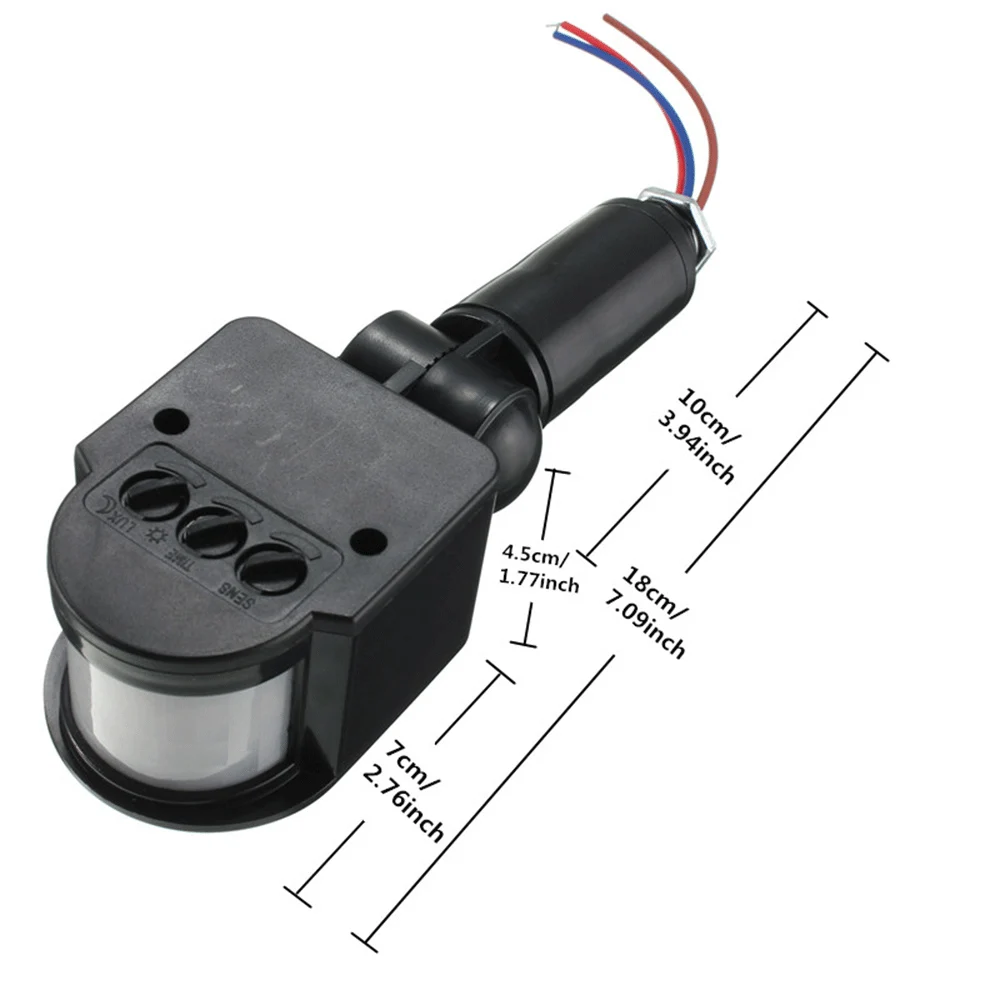

Dimensions: 60*45*160mm
Installation method: open type, (opening 16mm) When installing, the knob is facing down.

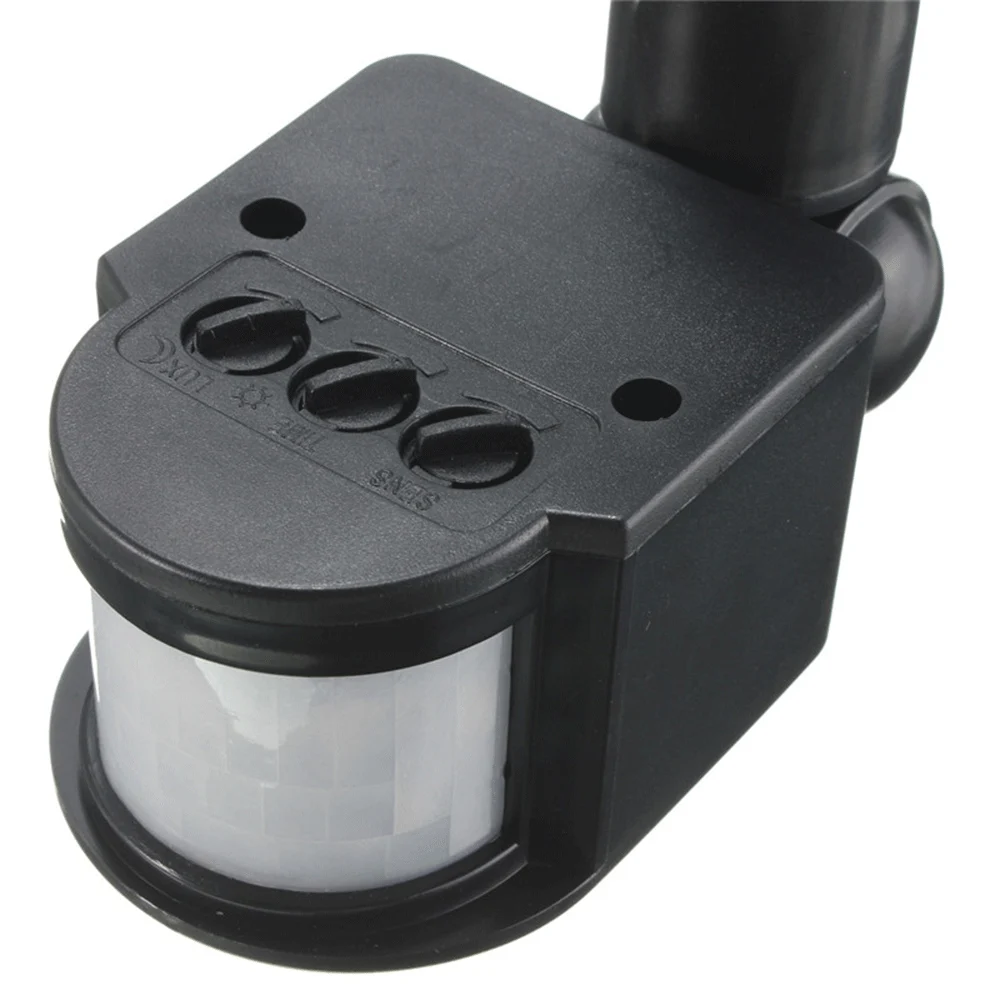

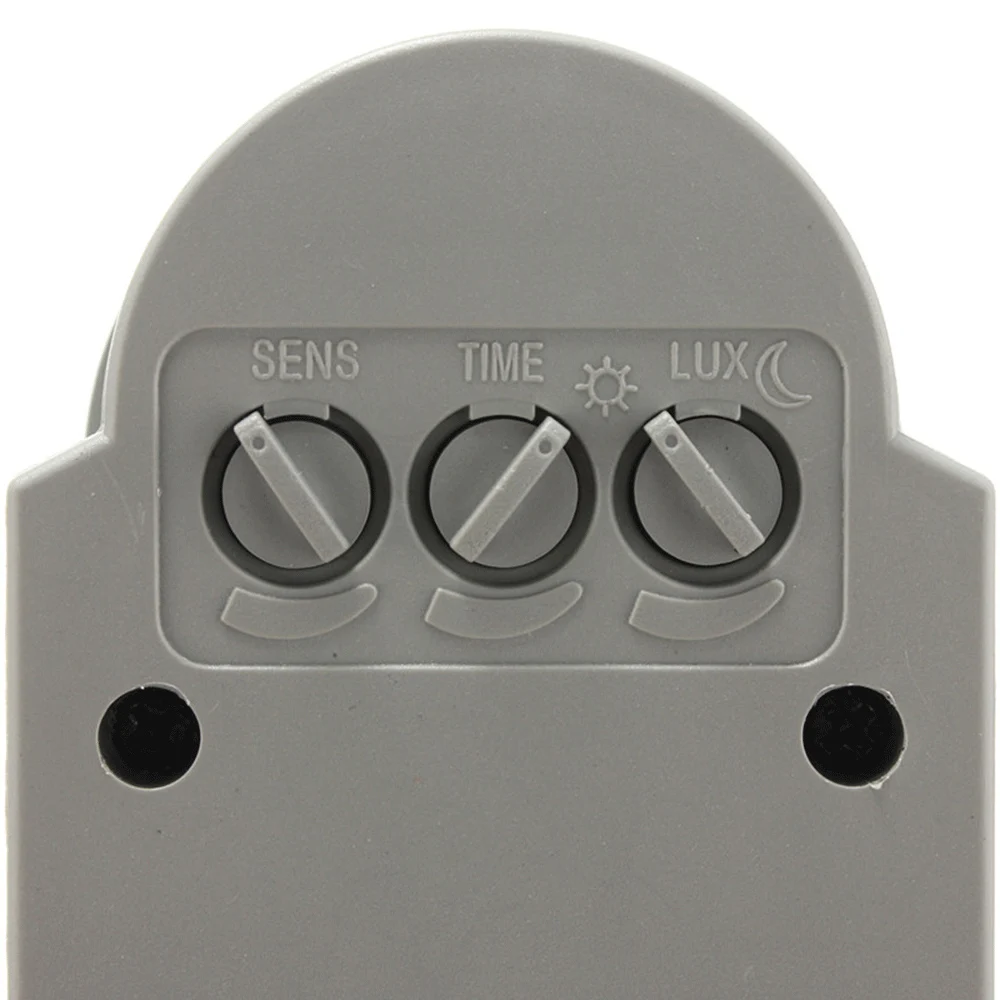

[Adjustment]
1) LUX
It is to adjust day or night work.
A: When adjusted to the sun position, the sensor works all day;
B: When it is adjusted to the moon position, the sensor does not work during the day and automatically enters the working state at night.
2) TIME
Is to adjust the sensor delay time (5 ± 2 sec ~ 6 ± 1 min)
The delay time refers to the time when the sensor leaves the sensing area after the sensor senses the person and the sensor delays the time.
3) SENS
It is to adjust the sensitivity of the sensor. Generally no adjustment is needed. If the inductive induction is too strong and the light is always on, the sensitivity can be adjusted to the minimum position.

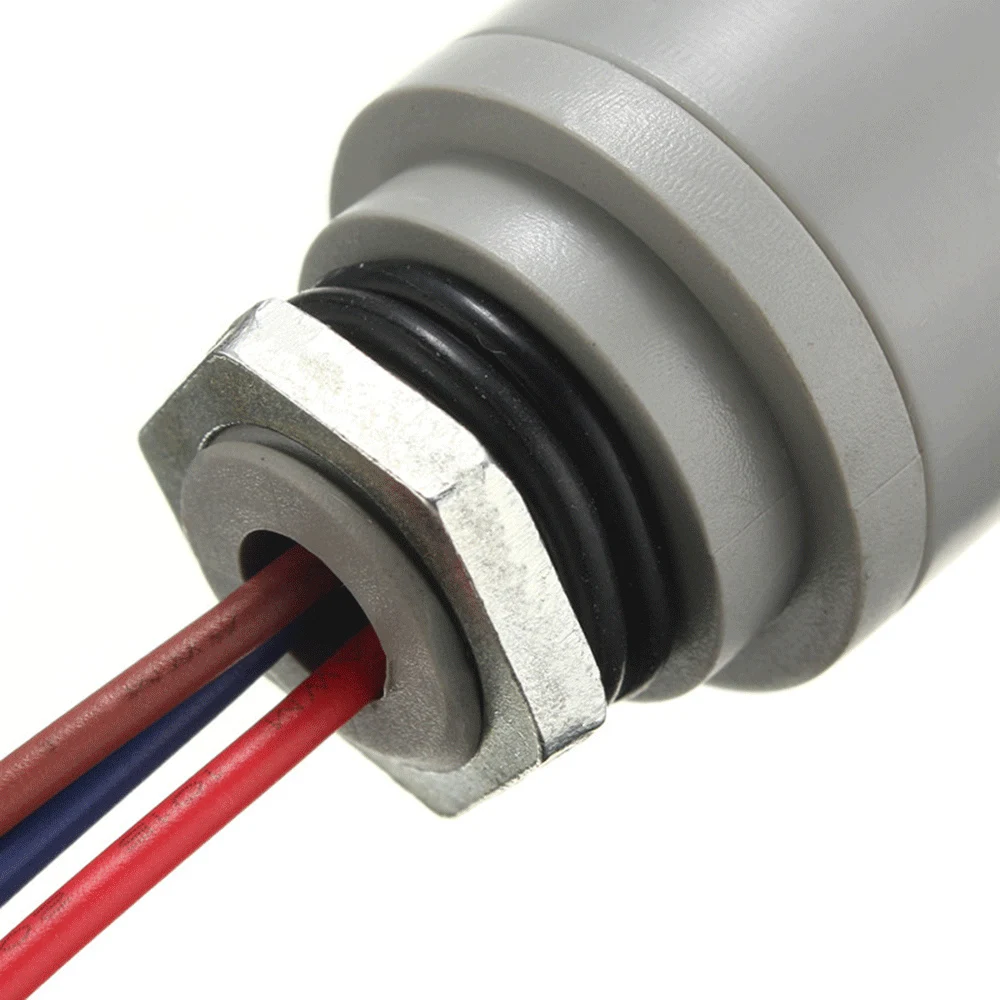

Wiring instructions:
N-blue (zero line)
L-brown (fire line)
Output – red (sensor output line)
Blue and brown input power
Blue and red connected to the load (lamp).
