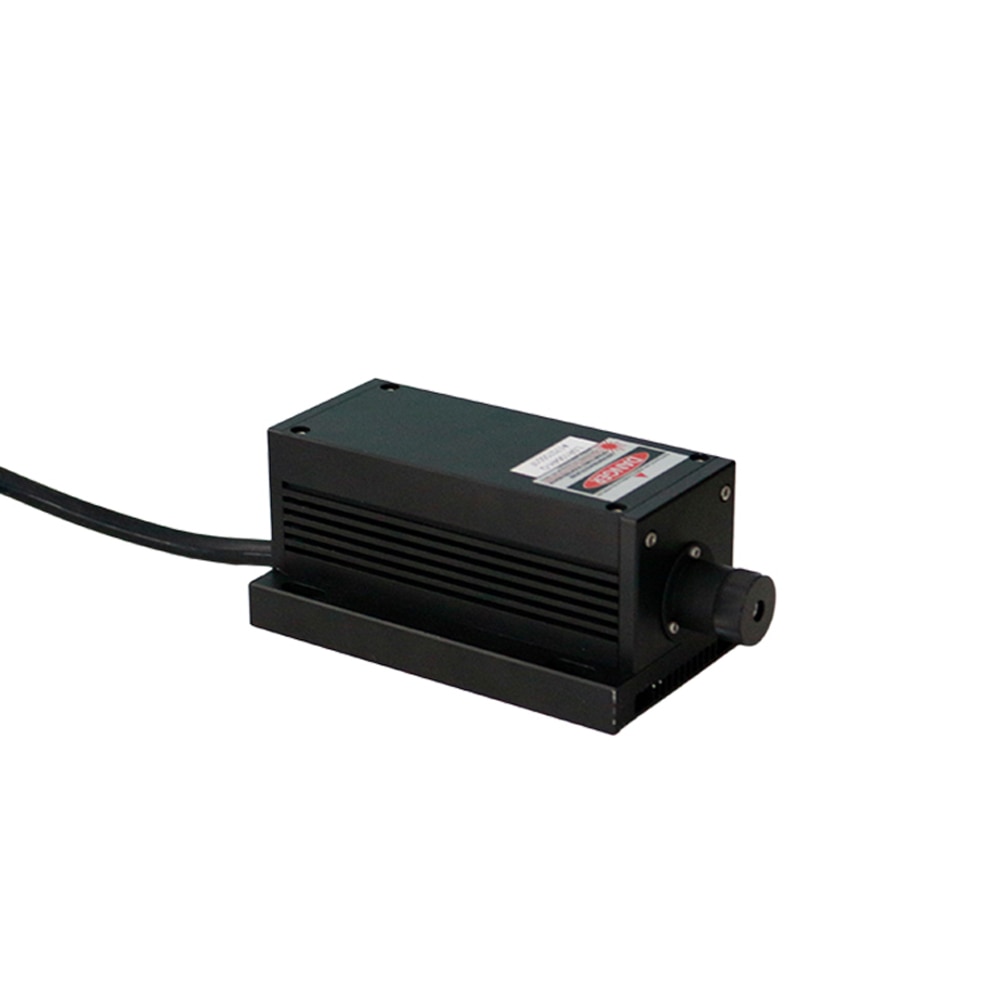

High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output

SALE 10% OFF

High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output

High Power  355nm UV Pulse Laser Power Laser  Module 20mW  50mW  100mW Can Couple Fiber Output



Title:

High Power  355nm UV Pulse Laser Power Laser  Module 20mW  50mW  100mW Can Couple Fiber Output

Wavelength:

355±1nm

Output Power:

20mW

Spatial Mode:

Near TEM00

Operation Mode:

Pulsed Laser

Beam Diameter:

2mm

Single Pulse Energy:

1-10uJ

Pulse Width:

5-20ns

Peak Power:

100W~2KW

Repeat Rate:

1~10KHZ

Polarization:

>50:1

Beam Spot Shape:

Circular,Aspect Ratio   and lt;1.1:1

Pointing  Stability:

and lt;0.05mrad

Beam Divergence Angle:

and lt;1.5mrad

Beam High:

45mm

Power Stability:

and lt;5% per4 hrs

Temperature  Stabilizing:

TEC

Warm Up Time:

and lt;5minute

Operating Temperature:

20-30℃

Storage Temperature:

10-50℃

MTTF:

10000hrs

Laser size:

211*88*74mm

Supporting power supply:

A: OEM type  100*70*55MM
AC/DC PSU: 85-265V 50/60Hz input

C:Lab Adjustable type:
178*197*84mm

Features:

1. Compact structure;
2. Excellent beam quality;
3. Stable and reliable long life;
Widely used in scientific research and industrial fields.

Package:

1*  355nm Power Laser  Module




On Jan-02-20 at 00:53:58 PST, seller added the following information:





High Power 355nm UV Pulse Laser Power Laser Module 20mW 50mW 100mW Can Couple Fiber Output
