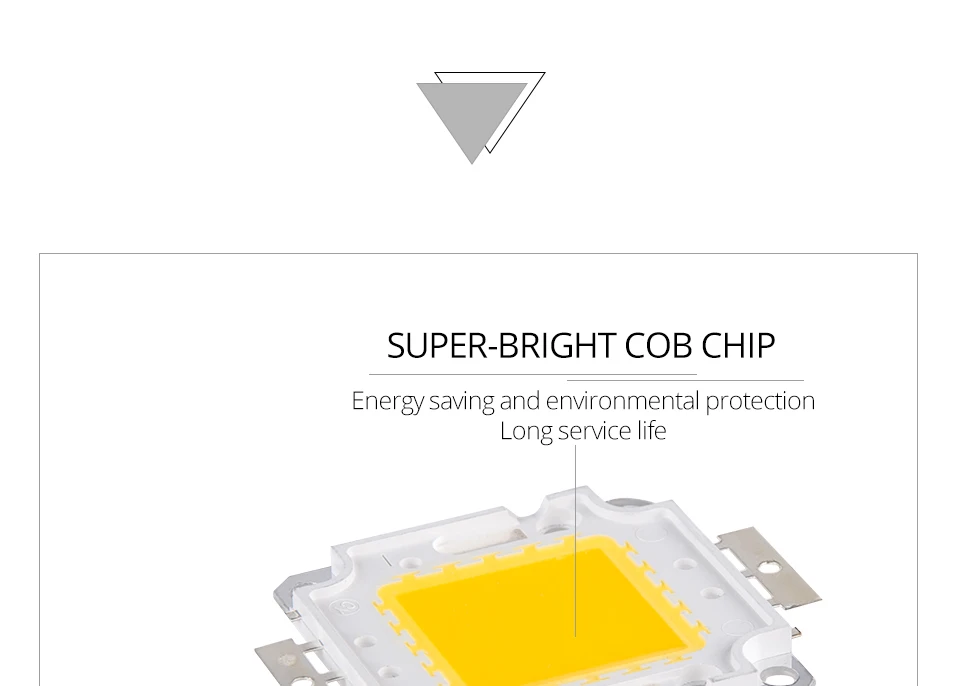

Foxanon 10W 20W 30W 50W 100W LED Beads Light DC12V-36V Matrix COB Integrated LED Lamp Chip SMD For DIY Floodlight Spotlight Bulb

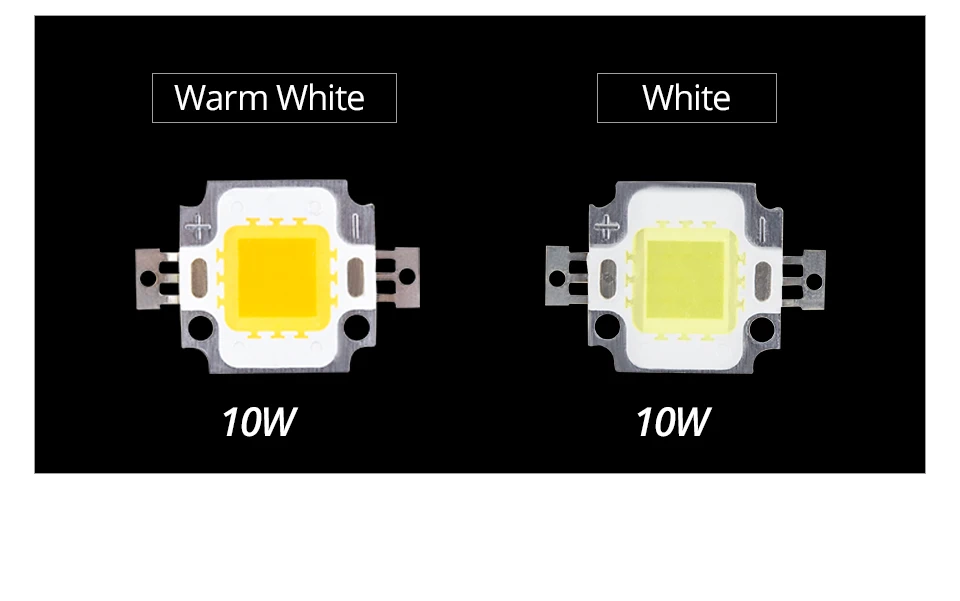

Specification(10w)

Model Type: High Power Integrated Chip lamp Beads

Integrated approach:3 Series 3 Paralleling

Forward Voltage: 9-12V(if use DC 12,Recommended Series a about 1.50 ohm resistor to use)

Forward current: 900mA

Luminous Flux: 90-110LM/W

Color-rendering index: 60-85

Beam Angle: 120 degrees

Working Temperature: -20 centigrade to 60 centigrade

Color Temperature: Warm White: 3000-3200K

White: 6000-6500K

Life Span: 100,000 Hours

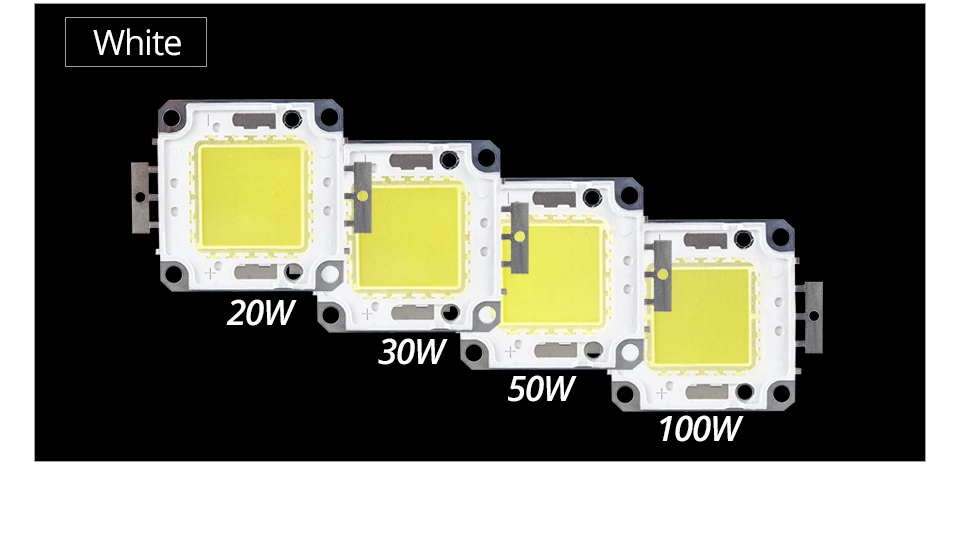

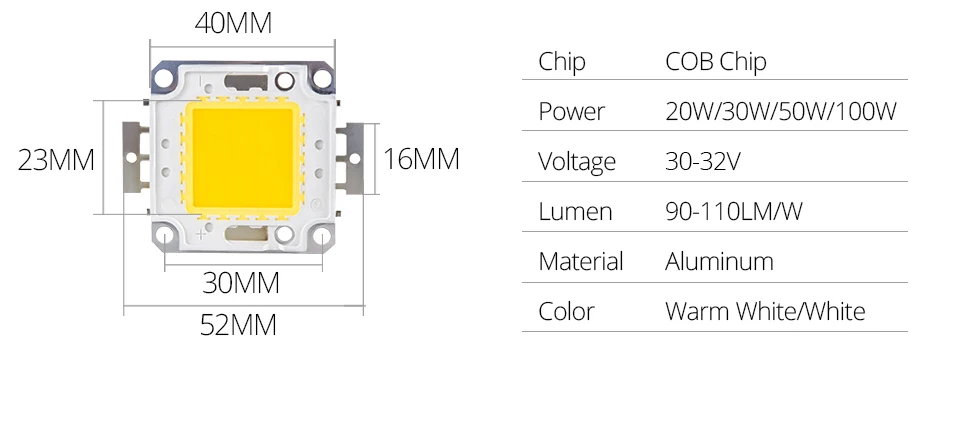

Specification(20w/30w/50w/100w)

Model Type: High Power Integrated Chip lamp Beads

Forward Voltage: 30-36V

Forward current: 20w(600mA) 30w(900mA) 50w(1500mA) 100w(3000mA)

Luminous Flux: 90-110LM/W

Color-rendering index: 60-85

Beam Angle: 120 degrees

Working Temperature: -20 centigrade to 60 centigrade

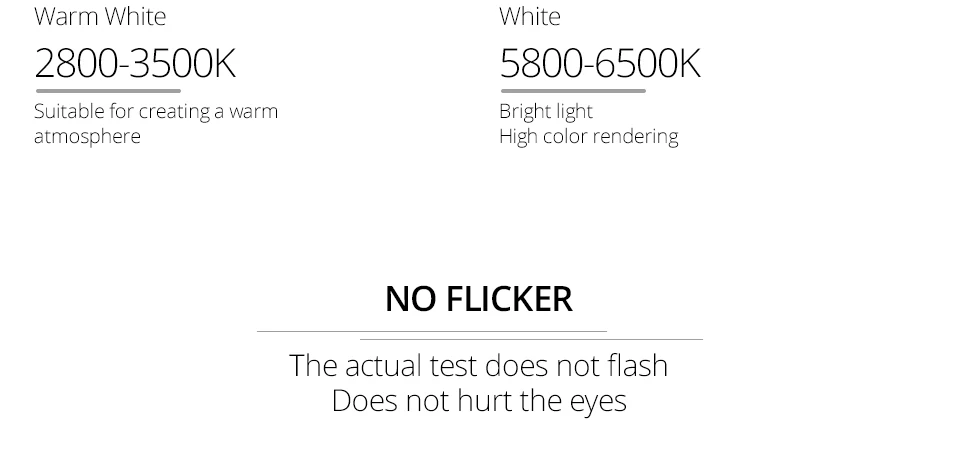

Color Temperature: Warm White: 2800-3500K

White: 2800-6500K

Life Span: 100,000 Hours

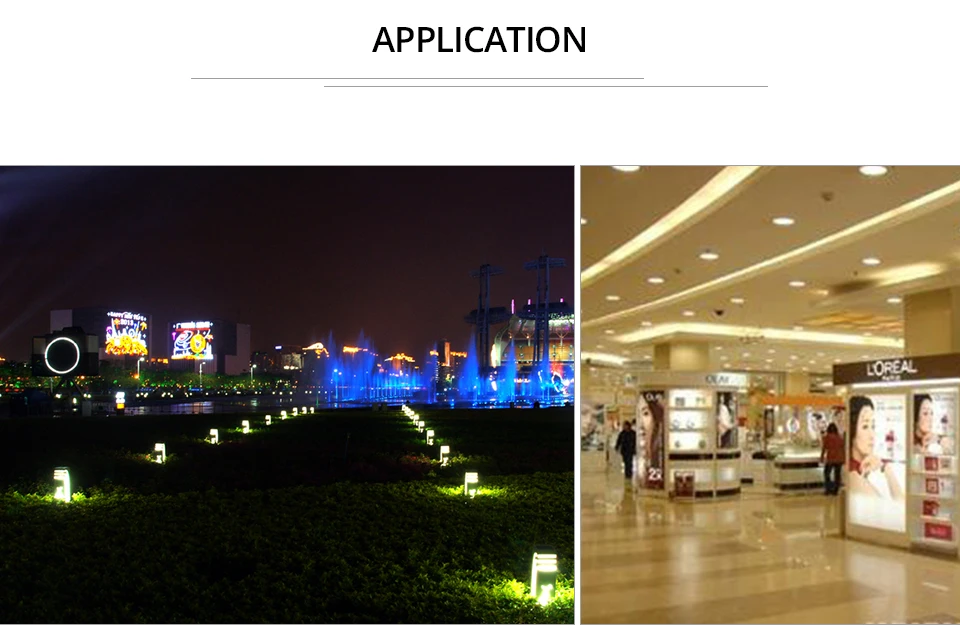

Applications:

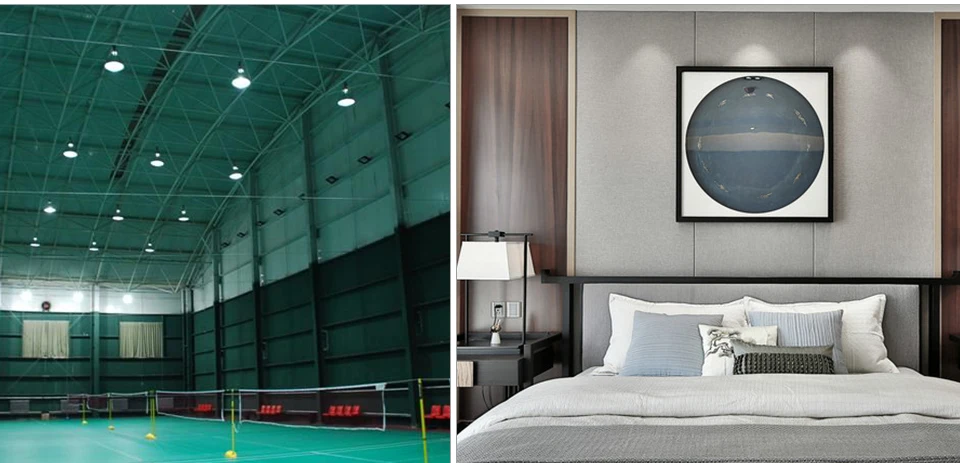

Widely used in Traffic lighting, Landscape lighting, advertising lighting, Indoor Lighting, Special lighting,Landscape scene / spot lighting,Architectural lighting,Display scene,Artwork lighting,general lighting,Amusement park scene,Aquarium lighting and so.
