 Detail:

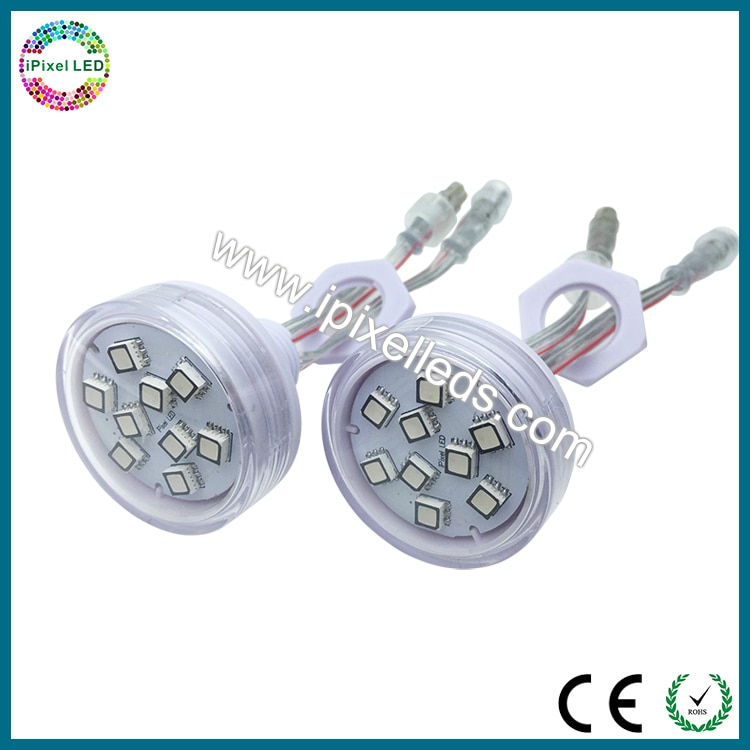

Product Name 45mm 9LEDs/pcs led pixels
Product No. P459V24W
LED Chip Epistar SMD 5050 RGB LED chip
IC Chip UCS1904
Input Voltage DC24V
Watts 2.16W/PCS
Cover Color transparent cover
Connectors 3pin JST connectors/  waterproof connectors
Beam angle 140
Certification CE, RoHS
LED Qty 6LEDs/pcs,9LEDs/pcs
Cable Length 10cm usually, also can be customized

Product Description

1. Individually control: 1PCS LED pixel and amp; 1IC (UCS1904)

2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

and scanning etc. depending on the different installation methods may compose different dynamic

effect of different color’s character and design

3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables…

4. Waterproof: Yes IP66, with silicon glue waterproof protection.

5. Installation: Easy to install, you’d better drill the hole about 19 – 40mm.

6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.

7. Power supply: You must use a 24V DC power supply to power this pixel, do not use higher than 25V

or you can destroy the entire pixel.

8. Connetors: 3PIN  waterproof female and male connectors, DAT, DC12V+, GND-

each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

9. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

10. Brand: iPixel LED

Product Details



SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino…

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply…

(waterproof / non-waterproof)



Application

1. channel letter

2. Advertisements sign

3. KTV,Disco

4. LOGO, advertising billboard,exposed luminous characters,

5. LED display screen, painted screen

6. Stage, Disco

7. amusement project , Roller Coaster and Theme Park

8. amusement rgb pixel led point light lunapark ferry fairground ride

About iPixel LED

Packaging and amp; Delivery

Packaging Details:

20pcs/String, 60pcs/Bag, 480pcs/Carton ,18.5KG/Carton
Carton Size: 46cmx26cmx46cm
Delivery Detail:2-7 working days
